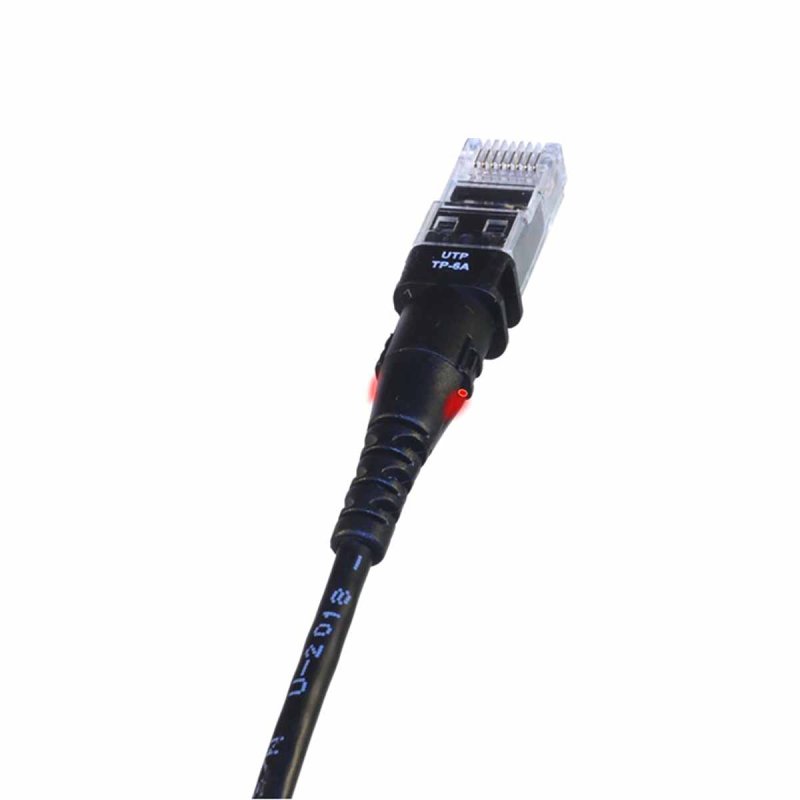

The light-up RJ45 cord integrates Patchsee and Patchclip technologies, offering easy and quick identification. Compatible with Pro-Patchlight light injectors, this cord facilitates patching and accessibility, particularly in high-density environments.
Main features:
- Patchsee and Patchclip technologies for easy identification (16 available colors)
- 11 available lengths from 0.6m to 4.9m
- Black sheath with reference and length marking on the sleeve
- UTP and FTP versions 100 Ohms
- Compatible with categories 5e, 6, 6a (TIA/EIA-568.2-D and ISO/IEC 11801-2:2017 standards)
- Application up to 10 Gbit/s
- Slim sleeve aligned with RJ45 connector for better density
- Tinned copper conductor AWG 28 and plastic fiber optical waveguide
- Overall diameter: 3.8mm and bending radius of 11.4mm
Technical specifications:
- 4 pairs - Type: U-UTP
- Tinned copper wire, 7 / 0.124 +/- 0.003 mm
- Isolation: High-density polyethylene
- Optical waveguide: 2 plastic optical fibers of 0.5 mm
- PVC sheath
