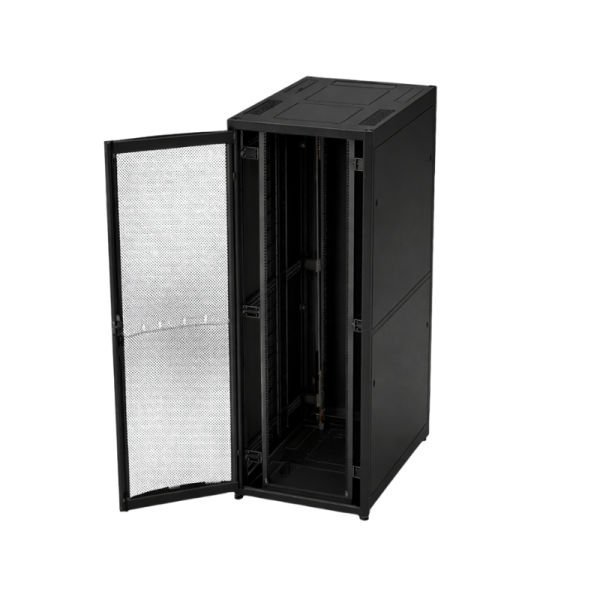

Rainford SafeServ® SX Server Rack – Black (RAL 9005)
The Rainford SafeServ® SX Server Rack in Black (RAL 9005) is a high-performance data centre enclosure engineered for environments where security, airflow efficiency and structural strength are critical. Designed for modern server and network deployments, the SX range supports mission-critical infrastructure while optimising thermal management and operational reliability.
Constructed with fully welded front and rear steel frames, the SafeServ® SX delivers exceptional load capacity and long-term durability. The 83% high-airflow mesh curved front door enhances cooling performance while maintaining secure access control. Split side panels provide improved installation flexibility and easier maintenance access within white space environments.
Compatible with airflow containment and blanking solutions, the SX range supports improved cooling efficiency and power usage effectiveness (PUE), making it ideal for high-density data centre applications.
Finished in durable polyester powder coat Black (RAL 9005), the SafeServ® SX combines performance, protection and professional aesthetics for enterprise, colocation and network infrastructure deployments.
Key Features:
-
Fully welded steel frame for maximum strength and durability
-
Curved 83% high-airflow mesh front door
-
Split horizontally removable side panels
-
Secure, lockable doors and panels
-
Compatible with containment and blanking systems
-
High load capacity for mission-critical equipment
-
Depth-adjustable front and rear mounting profiles
-
Integrated horizontal copper earth bar
-
Segregated top and base cable entry channels
-
Black polyester powder coat finish (RAL 9005)
-
Conforms to IEC 60297-3 and EIA-310-E standards
-
Manufactured in line with ISO 9001:2015, RoHS and REACH
Technical Characteristics:
-
Material: Steel
-
Finish: Polyester powder coat
-
Colour: Black (RAL 9005)
-
Mounting Format: 19-inch
-
Front Door: Curved single-leaf 83% mesh
-
Rear Doors: Double-leaf 83% mesh
-
Door Handle: Swing handle – 3 pin combination
-
Door Locking: Single point locking system
-
Side Panels: Plain panels, split horizontally
-
Panel Locking: Non-keyed cam latch
-
Earthing: Base-mounted horizontal copper earth bar
-
Cable Ingress: Segregated top and base entry channels
-
Included Accessories: Baying kit, levelling feet
-
Packaging: Standard pallet packing kit
