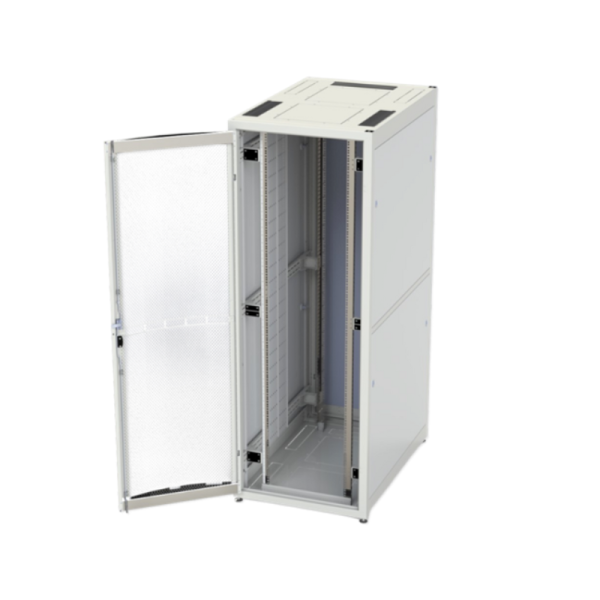

Rainford Server Rack Cabinet (Curved Door, Split Sides) – 42U × 800 × 1000
The Rainford SafeServ® SX 42U × 800 × 1000 Server Rack Cabinet is a high-performance, UK-engineered enclosure designed for modern data-centre, enterprise and network infrastructure deployments. With its signature curved 83% airflow mesh front door and horizontally split side panels, this cabinet offers excellent cooling efficiency, secure access and effortless maintenance—ideal for high-density server and switching environments.
Manufactured from heavy-gauge steel and finished in a premium RAL 9003 polyester powder coat, the SafeServ® SX range delivers exceptional structural rigidity, optimised airflow and long-term durability. Fully adjustable 19” mounting rails, brushed cable-entry points and airflow-optimised mesh doors make this model perfect for compact high-efficiency rack deployments, installations with restricted depth, or sites requiring a smaller footprint.
Key Features:
- Curved 83% airflow mesh front door for maximum cooling performance
-
Double-leaf 83% airflow mesh rear doors
-
Horizontally split side panels for easy, unobstructed access
-
Depth-adjustable 19” front and rear mounting profiles
-
3-point locking with high-security keyed swing handle
-
Three brushed top-panel cable-entry apertures for clean cable routing
-
Base-mounted copper earth bar for equipment grounding
-
Heavy-duty steel construction with RAL 9003 powder-coated finish
-
Supplied with baying kit and levelling feet
Technical Specifications:
- Height: 42U
-
Width: 800mm
-
Depth: 1000mm
-
Material: Powder-coated steel
-
Colour: RAL 9003 (white)
-
Front Door: Curved 83% airflow mesh, single-leaf
-
Rear Doors: Double-leaf 83% airflow mesh
-
Locking System: Keyed swing handle, 3-point locking
-
Side Panels: Plain, horizontally split, cam-latched
-
Mounting Format: 19-inch
-
Mounting Profiles: Front & rear, fully depth-adjustable
-
Profile Setback: 120mm (front) / 120mm (rear)
-
Cable Access: 3 × brushed top-panel entry points
-
Earthing: Base-mounted copper earth bar
-
Compliance:
-
IEC 60297-3
-
EIA-310-E
-
RoHS
-
REACH
-
ISO9001:2015
-
Included Accessories: Baying kit, levelling feet
