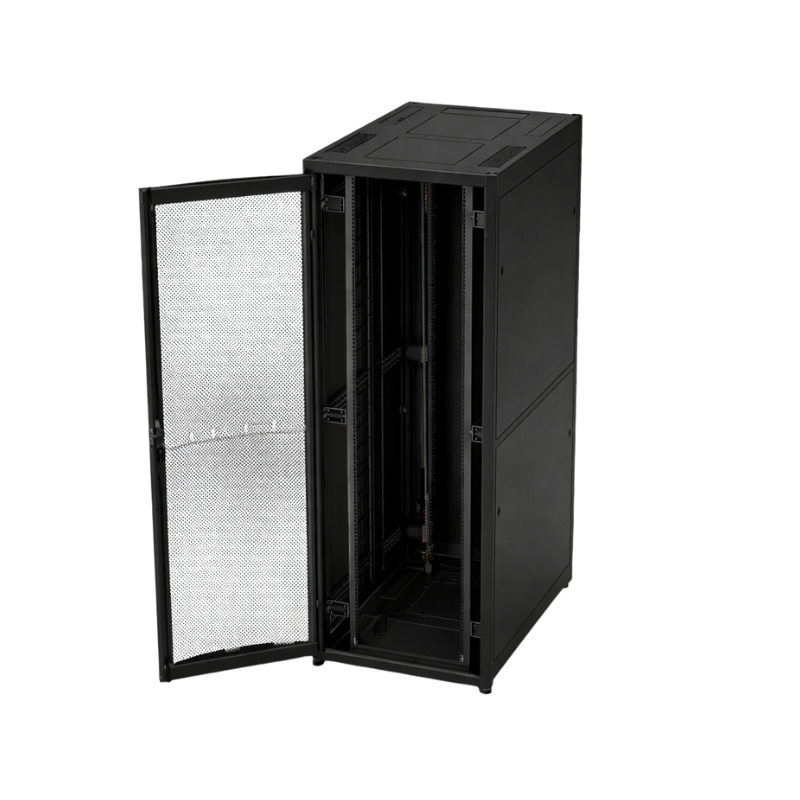

Rainford SafeServ® SX – 42U × 600 × 1000 Server Rack (Curved Door, Split Sides) – Black (RAL 9005)
The Rainford SafeServ® SX Server Rack is a high-performance, fully enclosed cabinet designed for data centre, network, and colocation environments where security, airflow efficiency, and space optimisation are essential. Built around fully welded front and rear steel frames, the SafeServ SX range delivers exceptional structural strength and long-term reliability for mission-critical installations.
This 42U, 600 × 1000 mm configuration provides a narrow footprint with an efficient internal depth, making it ideal for environments where floor space must be carefully managed without compromising equipment compatibility. An 83% mesh curved front door enables high-volume airflow to support efficient cooling and improved PUE, while split side panels enhance accessibility for installation, maintenance, and cable management. Finished in Black (RAL 9005) with a durable polyester powder coat, the SafeServ SX cabinet offers a clean, professional appearance for modern white-space deployments.
Key Features:
-
Fully welded steel frame construction for high load capacity and durability
-
83% mesh curved front door for optimised airflow and cooling performance
-
Narrow-width design for space-efficient data centre installations
-
Split side panels for improved access and serviceability
-
Secure, lockable doors and panels to protect mission-critical equipment
-
19-inch mounting format with depth-adjustable front and rear profiles
-
Compatible with airflow containment and blanking solutions
-
Durable polyester powder-coated finish in Black (RAL 9005)
Technical Specifications:
-
Rack Height: 42U (1976 mm)
-
Rack Width: 600 mm
-
Rack Depth: 1000 mm
-
Material: Steel
-
Finish: Polyester powder coat
-
Colour: Black (RAL 9005)
-
Mounting Format: 19 inch
-
Mounting Profiles: Front and rear, depth adjustable
-
Front Door: Single-leaf curved 83% mesh
-
Rear Doors: Double-leaf flat 83% mesh
-
Side Panels: Split horizontally
-
Door Locking: Single-point locking system
-
Earthing: Base-mounted horizontal copper earth bar
-
Standards Compliance: IEC 60297-3, EIA-310-E, ISO 9001:2015, RoHS, REACH
