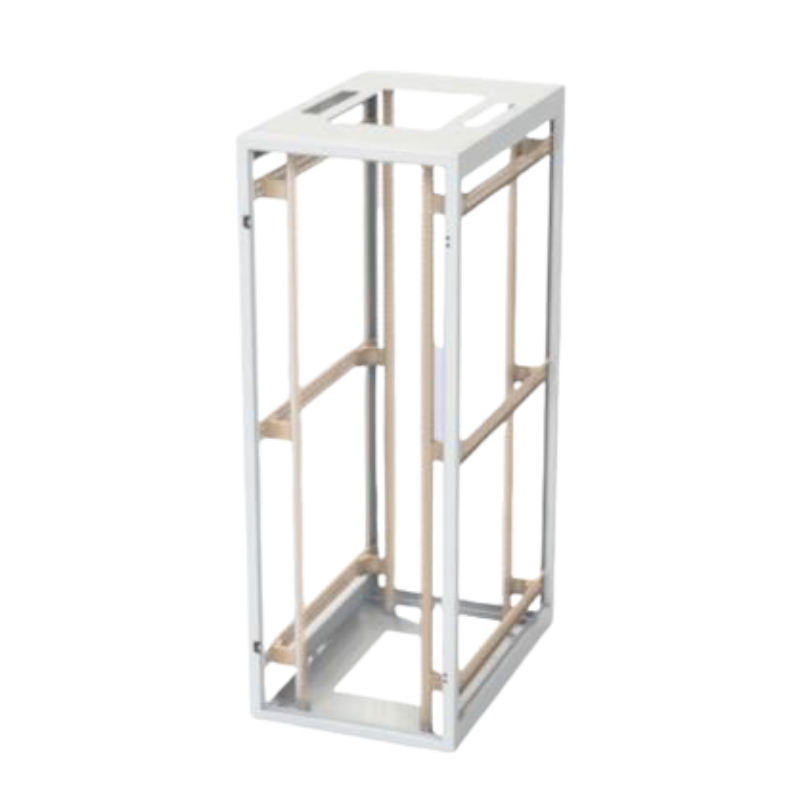

Rainford SafeServ® Cabinet (Four Post Open Frame Rack) – 42U × 600 × 1200
The Rainford SafeServ® 42U × 600 × 1200 Four-Post Open Frame Rack is a strong and versatile enclosure solution for server, switching and network distribution hardware. Designed for environments where both deeper active equipment and superior accessibility are required, this rack offers excellent rigidity, balanced load support and unrestricted airflow.
The 600mm width delivers a slim footprint for space-restricted communications rooms, while the 1200mm depth supports deeper IT and telecom equipment. With fully open sides, top and base, it enables fast installation, simplified patching and efficient maintenance, making it ideal for data centre distribution zones, POP sites, MMRs and technical rooms.
Key Features:
-
Four-post structure for greater strength and equipment load capacity
-
Fully open frame ensures maximum airflow and full equipment access
-
19” front and rear depth-adjustable mounting rails
-
Compact 600mm width for tighter room layouts
-
1200mm depth supports deeper network and server devices
-
Tough steel construction with durable powder-coated finish
-
Open top and base for flexible cable routing
-
Supplied with levelling feet and baying kit
-
Designed and manufactured in the UK
Technical Specifications:
-
Height: 42U
-
Width: 600mm
-
Depth: 1200mm
-
Material: Steel
-
Finish: Polyester powder-coat
-
Colour: RAL 9003 (white)
-
Mounting Format: 19-inch
-
Mounting Rails: Front & rear, fully depth-adjustable
-
Frame Type: Open (no doors or side panels)
-
Cable Access: Open top and base for rapid routing
-
Earthing: Base-mounted copper earth bar
-
Compliance: IEC 60297-3, EIA-310-E, RoHS, REACH, ISO9001:2015
-
Supplied Accessories: Baying kit, levelling feet
