Pigtail Droptic LM2BK_1FO G657A2 SC/APC – 45m Coil

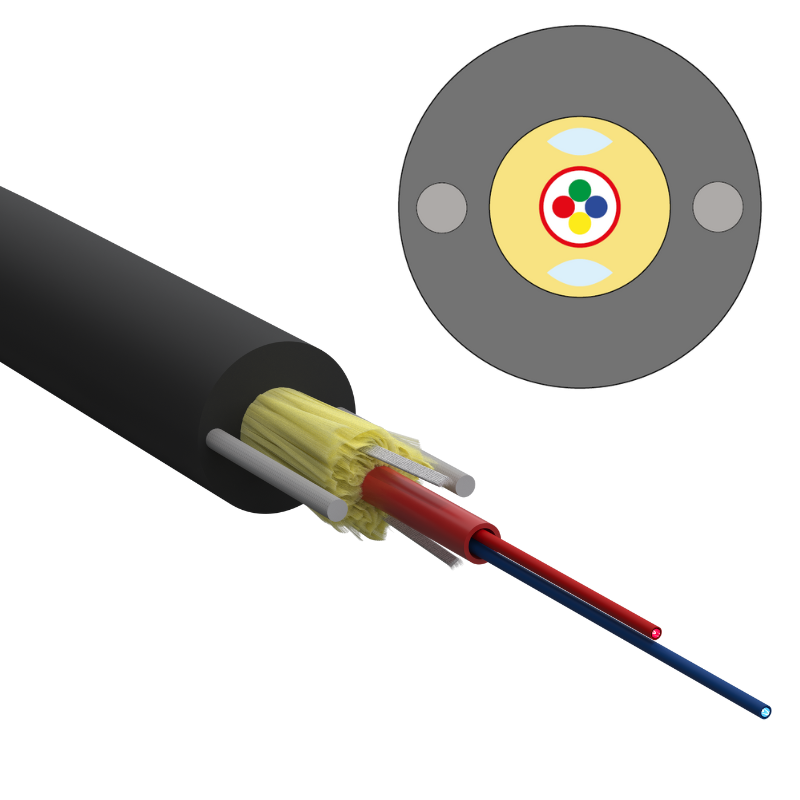

The Pigtail Droptic LM2BK_1FO G657A2 SC/APC is a high-performance drop cable solution tailored for FTTH (Fibre-to-the-Home) installations. Supplied in a 45m coil, this pre-terminated cable features a G657A2 single-mode fibre that provides exceptional bend tolerance, making it ideal for facade and duct routing in confined spaces.

Constructed for durability, the cable includes a robust LSZH-FR (Low Smoke Zero Halogen – Fire Retardant) sheath that ensures compliance with fire safety standards. Reinforced with two FRP strength members, the LM2BK is suitable for demanding environments while maintaining flexibility and ease of handling.

Key Features

• G657A2 fibre core with enhanced bend tolerance

• SC/APC pre-terminated connector for reliable and precise fibre connections

• Fire-retardant LSZH outer sheath suitable for indoor installations

• Twin FRP reinforcements for structural integrity and crush resistance

• 1-fibre optical core; also available in 2FO and 4FO variants

• Supplied in 45m coil, reducing splice points and installation time

• Fully compliant with European CPR (Construction Products Regulation) standards

• Designed for facade and duct applications in FTTH network rollouts

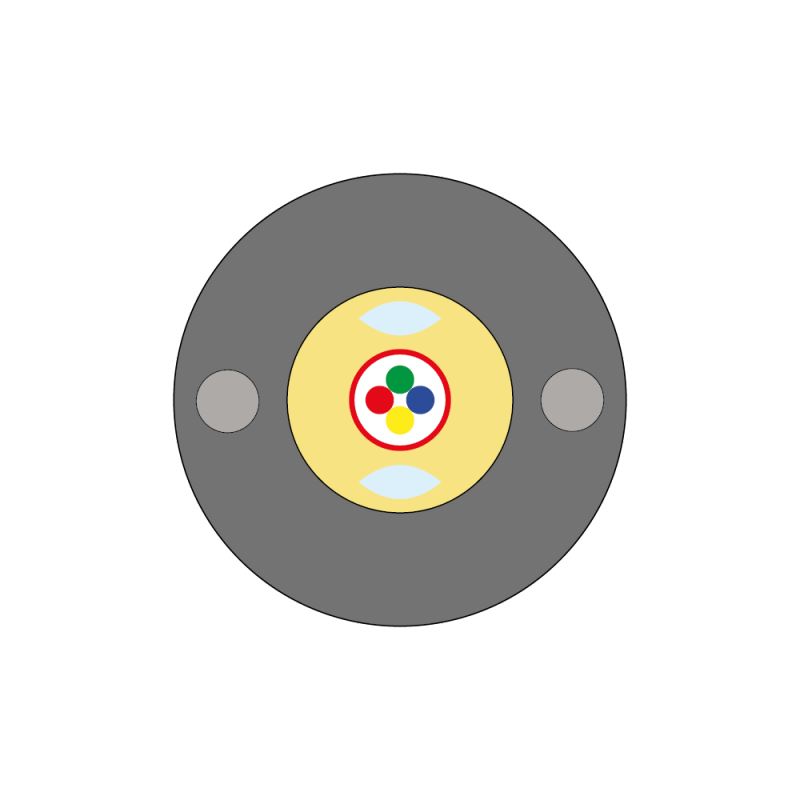

Technical Characteristics:

• Fibre Type: G657A2 Singlemode

• Connector: SC/APC

• Fibre Count: 1FO (single fibre)

• Sheath Material: LSZH-FR

• Reinforcement: 2 x FRP rods

• Length: 45m coil

• Application: Indoor, facade, and duct

• Standards: CPR compliant, EN 50575
