Pigtail DROPTIC® LM2BK 1FO G.657A2 – Multiple Connectors / Lengths

The Pigtail DROPTIC® LM2BK 1FO G.657A2  – Multiple Connectors / Lengths is a versatile, pre-connectorised drop cable solution designed for rapid FTTH deployments across aerial, façade, duct and indoor environments.

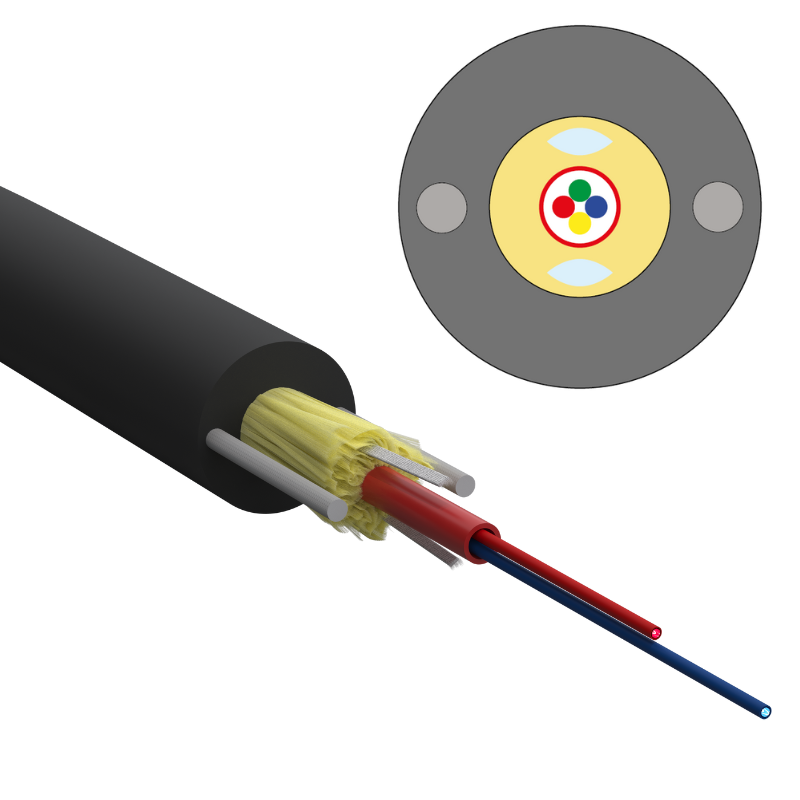

Built on the proven DROPTIC® LM2BK platform, this cable features an all-dielectric, UV-resistant construction, enabling seamless routing from external networks directly into buildings without the need for transition points. The addition of OptiTap® hardened connectors ensures fast, plug-and-play installation, reducing deployment time and eliminating the need for on-site splicing.

The cable uses G.657A2 bend-insensitive singlemode fibre, supporting tight bend routing with minimal attenuation, while its compact 4mm diameter allows discreet installation in both internal and external environments.

Reinforced with aramid yarns and dual FRP rods, and enhanced with longitudinal sealing, the cable delivers excellent mechanical strength and environmental protection, making it suitable for a wide range of installation techniques including pulling, gluing and stapling.

Key Features:

• 1 fibre (1FO) configuration for FTTH drop applications

• Available in multiple connector configurations

• Suitable for aerial, façade, duct and indoor installations

• UV-resistant, all-dielectric construction

• Compact 4mm diameter for discreet routing

• G.657A2 bend-insensitive fibre for tight installation paths

• Reinforced with aramid yarns and 2 FRP rods

• Compatible with pulling, gluing and stapling installation methods

• Available in multiple lengths and packaging options

Technical Specifications:

• Product Type: Pre-connectorised indoor/outdoor drop cable

• Fibre Count: 1FO

• Fibre Type: ITU-T G.657A2 singlemode

• Outer Diameter: 4.0 mm

• Sheath Material: LSZH (Black, RAL 9005)

• Buffer: 900µm tube

• Reinforcement: Aramid yarns + 2 FRP rods

• Weight: ~17 kg/km

Mechanical & Environmental Performance:

• Maximum Allowable Tension: 400N

• Minimum Bend Radius:

  • Static: 20 mm

  • Kink: 15 mm

• Crush Resistance: 100N/cm (reversible up to 200N/cm)

• Temperature Range:

  • Operation: -30°C to +70°C

  • Storage: -40°C to +70°C

• Fire Rating: Dca-S2, d1, a1 (EN 50575)

Applications:

• FTTH drop cable deployments

• External to internal fibre routing

• Aerial and façade installations

• Duct-based fibre deployments

• MDU and SDU access networks

• Rapid plug-and-play network rollouts
