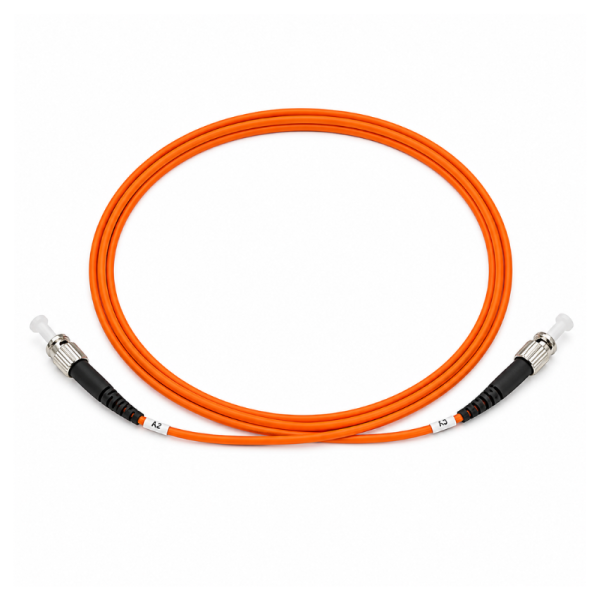

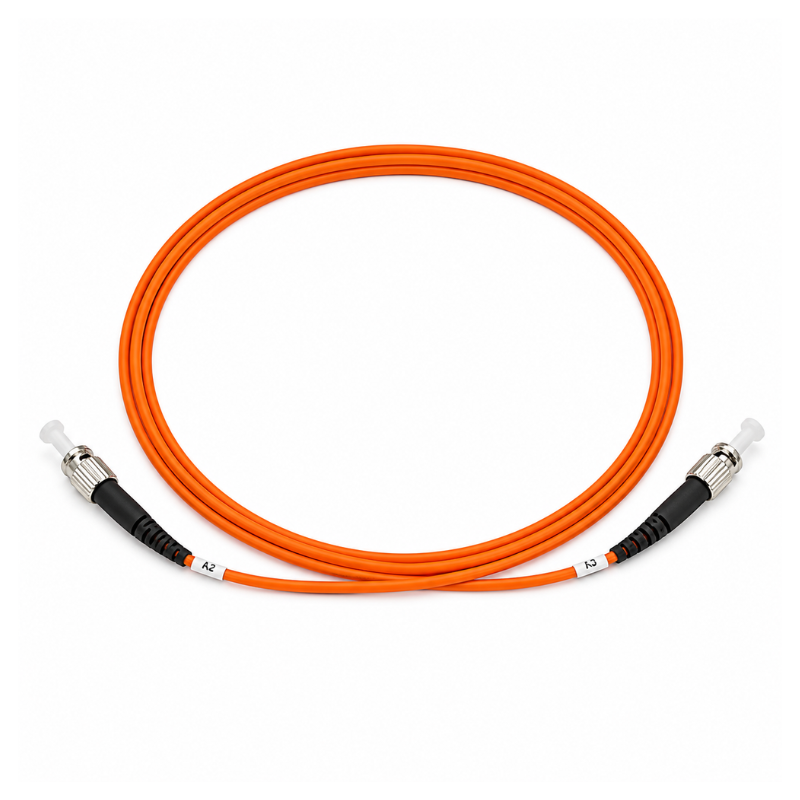

Patchcord – OM4 – ST to ST– Simplex – 2mm – Orange – 25m

Patchcord – OM4 – ST to ST – Simplex – 2mm – Orange – 25m

The Patchcord – OM4 – ST to ST – Simplex – 2mm – Orange – 25m is a high-performance multimode fibre optic patchcord designed to provide reliable, low-loss connectivity for data centres, enterprise networks and high-speed optical communication systems.

Manufactured using 2.0mm LSZH (Low Smoke Zero Halogen) cable, this simplex patchcord delivers excellent optical performance while ensuring low smoke emissions and improved safety for indoor installations. Fitted with ST connectors at both ends, it is ideal for legacy multimode network equipment, patch panels and fibre distribution systems.

The precision-engineered zirconia ferrules provide low insertion loss of ≤0.3dB and a return loss of ≥30dB, ensuring dependable signal transmission across demanding network environments. Supporting 40/100Gb/s Ethernet applications, OM4 fibre provides transmission distances of up to 1100m at 1Gb/s, 400m at 10Gb/s, and 150m at 40/100Gb/s, while maintaining backward compatibility with OM3 infrastructure.

Supplied in a 25-metre length with an orange LSZH jacket, this patchcord is suitable for professional telecommunications, enterprise networking and data centre applications.

Key Features:

• Multimode OM4 simplex fibre optic patchcord

• ST to ST connector configuration

• 25m cable length

• 2.0mm LSZH cable

• Orange outer jacket

• Low insertion loss (≤0.3dB)

• Zirconia ceramic ferrules

• 100% IEC 61300 compliant

• Supports high-speed 40/100Gb Ethernet

• Backward compatible with OM3 networks

Technical Specifications:

• Product Type: Fibre Optic Patchcord

• Fibre Type: Multimode OM4

• Fibre Size: 50/125µm

• Connector A: ST/PC

• Connector B: ST/PC

• Configuration: Simplex

• Number of Fibres: 1

• Cable Diameter: 2.0 ±0.02mm

• Cable Length: 25m

• Cable Colour: Orange

• Cable Material: LSZH (Low Smoke Zero Halogen)

• Connector Body Material: Thermoplastic

• Ferrule Material: Zirconia

• IEC Compliance: IEC 61300 (100% compliant)

Optical Performance

• Insertion Loss: ≤0.3dB

• Return Loss: ≥30dB

• Mechanical Tests: ΔIL ≤0.20dB

• Environmental Tests: ΔIL ≤0.20dB

Performance

• 1Gb/s: Up to 1100m

• 10Gb/s: Up to 400m

• 40/100Gb/s: Up to 150m

• Bandwidth: 4700MHz·km @ 850nm

• Backward Compatible with OM3

Mechanical Performance

• Static Bending Radius: 10mm

• Dynamic Bending Radius: 20mm

• Crush Resistance: 1000N

• Fibre Retention: 70N

• Tensile Strength of Coupling Mechanism: 40N

• Torsion Resistance: 10N, 25 cycles

• Static Side Load: 1N for 1 hour

• Strain Relief Flexing: 5N, 30 cycles

• Connector Static Load: 15N for 5 seconds

• Vibration: 10–55Hz, 30 minutes, 3 axes

• Impact Resistance: 1.5m drop height, 5 drops

Environmental Performance

• Operating Temperature: -20°C to +70°C

• Accelerated Ageing: 70°C for 336 hours

• Temperature Cycling: -25°C to +75°C (12 cycles)

• Dust Tested: IEC 61300-2-27

• Water Immersion Tested: IEC 61300-2-45

Applications:

• Data centres

• Enterprise networks

• High-speed LANs

• Fibre optic patch panels

• Telecommunications networks

• Optical distribution frames

• Server rooms

• Network cabinets

• Campus networks

• High-bandwidth optical communications
