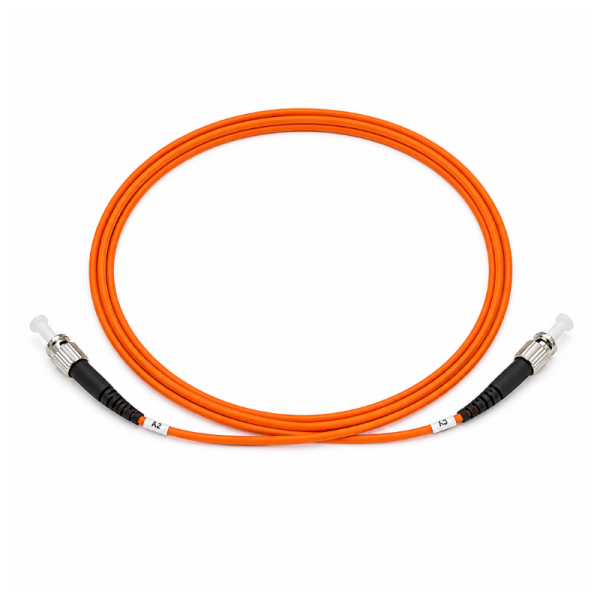

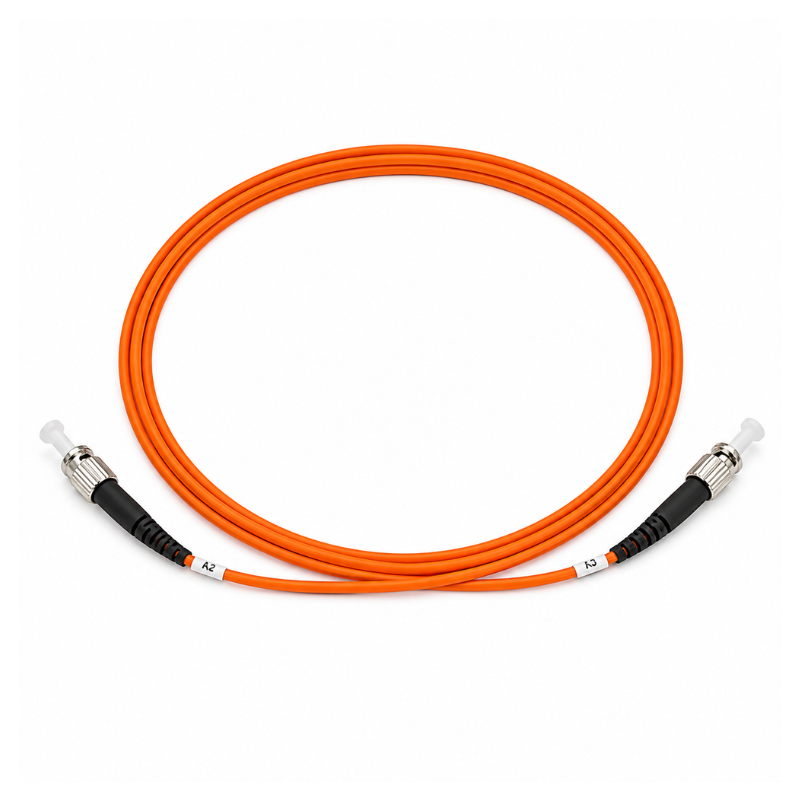

Patchcord – OM4 – ST to ST – Simplex – 2mm – Orange – 1m

Patch Lead – OM4 – ST to ST – Simplex – 2mm – Orange – 1m

The Patch Lead – OM4 – ST to ST – Simplex – 2mm – Orange – 1m is a premium multimode fibre optic patch lead designed to provide reliable, high-speed optical connectivity for enterprise networks, telecommunications systems and data centre applications.

Manufactured using 50/125µm OM4 multimode fibre with a durable 2.0mm LSZH (Low Smoke Zero Halogen) cable, this patch lead delivers outstanding optical performance while minimising smoke and harmful emissions in enclosed environments. Fitted with ST connectors at both ends, it provides a dependable solution for high-density fibre installations and supports demanding network applications up to 40/100Gb Ethernet.

Designed for long-term reliability, the patch lead features zirconia ferrules, low insertion loss, excellent mechanical durability and full compliance with IEC-61300 standards. The 1-metre length makes it ideal for short-distance equipment connections within patch panels, fibre enclosures and communications cabinets.

Key Features:

• OM4 multimode fibre patch lead

• ST to ST simplex connectors

• 1m cable length

• 2.0mm LSZH cable

• 50/125µm multimode fibre

• Low insertion loss

• Zirconia ferrules

• Supports 40/100Gb Ethernet applications

• IEC-61300 compliant

• Durable indoor construction

Technical Specifications:

• Product Type: Fibre Optic Patch Lead

• Fibre Type: OM4 Multimode

• Fibre Size: 50/125µm

• Connector A: ST/PC

• Connector B: ST/PC

• Configuration: Simplex

• Cable Diameter: 2.0mm

• Cable Length: 1m

• Cable Colour: Orange

• Cable Material: LSZH (Low Smoke Zero Halogen)

• Connector Material:

  • Body: Thermoplastic

  • Ferrule: Zirconia

• Insertion Loss (IL): ≤0.3dB

• Return Loss (RL): ≥30dB

• Static Bend Radius: 10mm

• Dynamic Bend Radius: 20mm

• Crush Resistance: 1000N

• Fibre Retention: 70N

• Operating Temperature: -20°C to +70°C

Standards

• IEC-61300 Compliant

• IEC 60794 Mechanical Testing

• LSZH Construction

Applications:

• Data centres

• Enterprise networks

• Telecommunications infrastructure

• Fibre patch panels

• Network cabinets

• Optical distribution frames

• Server rooms

• FTTH networks

• High-speed LANs

• 40/100Gb Ethernet connections
