Pigtail LX050HDPE 1F Coil - Multiple Lengths/Fibre Types

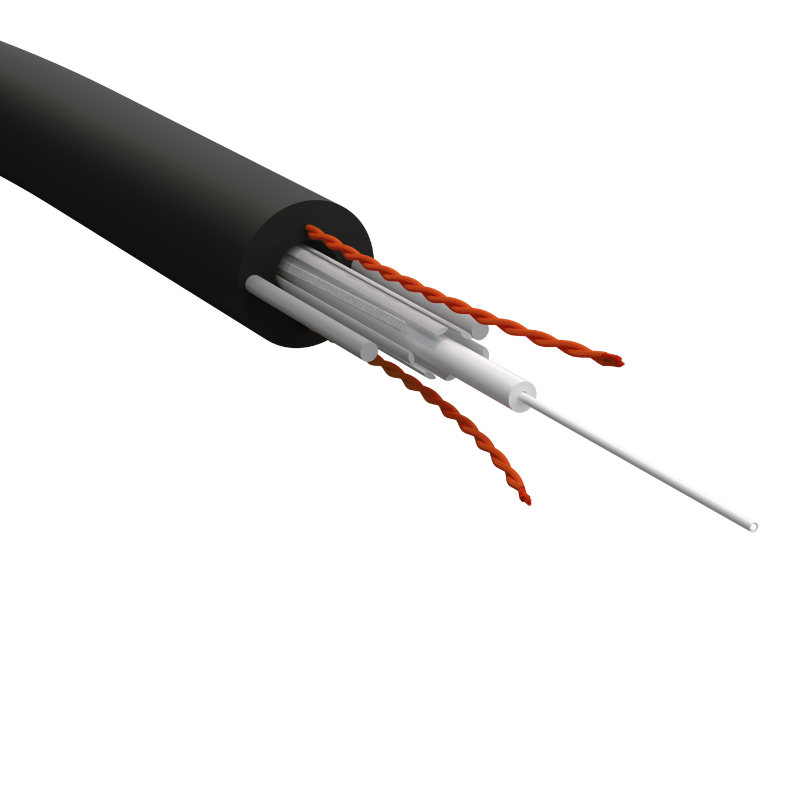

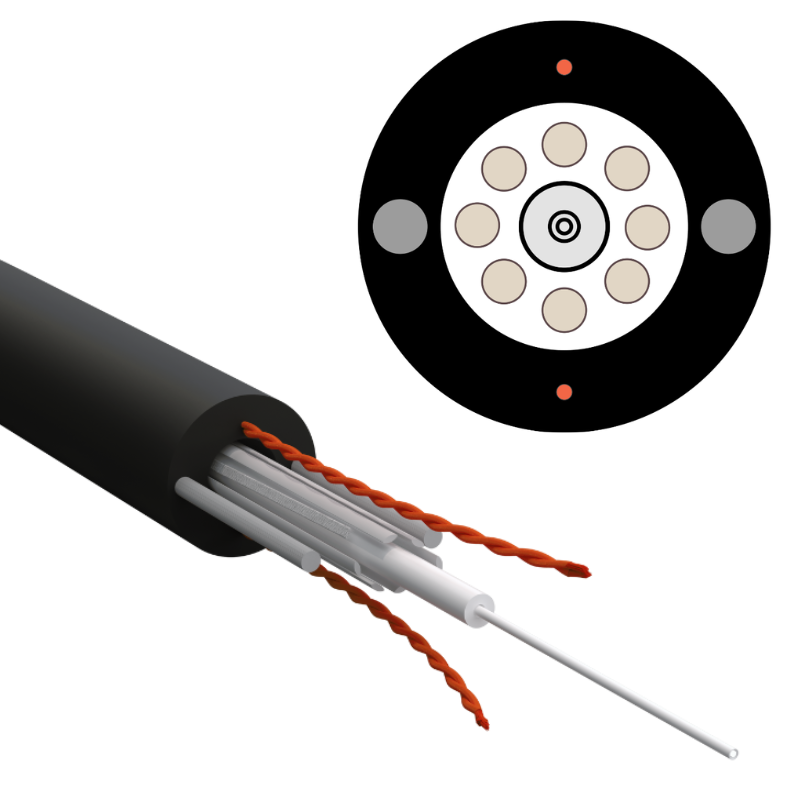

DROPTIC® LX050HDPE 1FO G.657A2 Coil – Multiple Lengths

The DROPTIC® LX050HDPE 1FO G.657A2 Coil – Multiple Lengths is a robust outdoor drop cable designed for FTTH façade, duct and aerial deployments across residential and MDU environments.

Constructed with a UV-resistant HDPE outer sheath and all-dielectric design, this cable delivers excellent durability for external installations while maintaining flexibility for efficient routing. Its compact 5.0mm diameter and lightweight construction ensure easy handling and strong performance in aerial applications, including spans exposed to wind conditions.

The cable features G.657A2 bend-insensitive singlemode fibre, allowing for tight routing with minimal signal loss, while the tight-buffered 0.9mm fibre structure ensures stability and protection during installation.

Reinforced with two parallel FRP rods and water-blocking elements, the DROPTIC® cable offers enhanced mechanical strength and longitudinal sealing, making it suitable for a wide temperature range and demanding outdoor environments.

Key Features:

• 1 fibre (1FO) configuration for FTTH drop applications

• Designed for façade, aerial and duct installations

• UV-resistant HDPE outer sheath for outdoor durability

• G.657A2 bend-insensitive fibre for tight routing

• 5.0mm compact diameter for easy handling

• All-dielectric construction (no metallic elements)

• Reinforced with 2 FRP rods for mechanical strength

• Water-blocking swelling cords for added protection

• Lightweight design suitable for aerial spans

• Available in multiple coil lengths

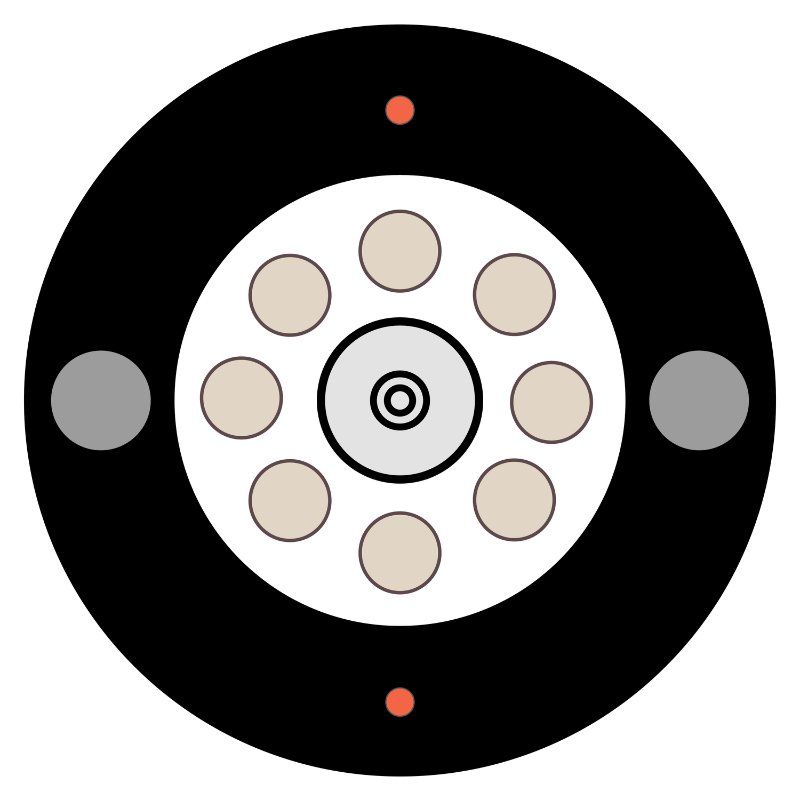

Technical Specifications:

• Product Type: Outdoor FTTH drop cable

• Fibre Count: 1FO

• Fibre Type: ITU-T G.657A2 singlemode

• Tight Buffer: 0.9 mm LSZH (white)

• Outer Sheath: HDPE (Black, UV resistant)

• Outer Diameter: 5.0 ± 0.1 mm

• Reinforcement: 2 × FRP rods

• Water Protection: Swelling cords + PE yarns

• Weight: ~18 kg/km

Mechanical & Environmental Performance:

• Max Allowable Tension: 400N

• Cable Breaking Load: 1350N – 2000N

• Crush Resistance: 2000N / 100mm

• Impact Resistance: 7J

• Minimum Bend Radius:

  • Dynamic: 20mm

  • Static: 60mm

• Temperature Range: -20°C to +85°C

Applications:

• FTTH outdoor drop cable installations

• Aerial span deployments between buildings

• Façade routing on residential properties

• Duct-based fibre installations

• MDU and SDU access networks
