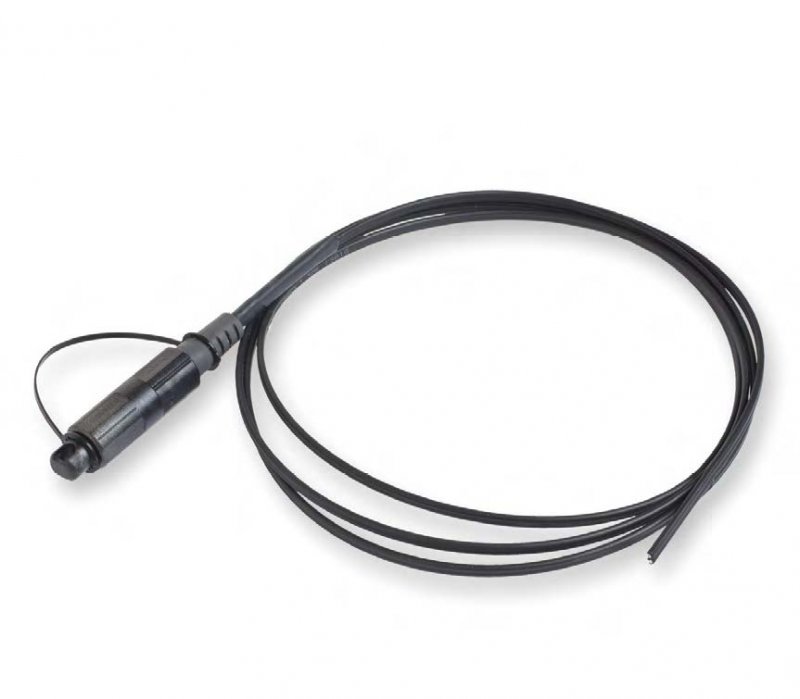

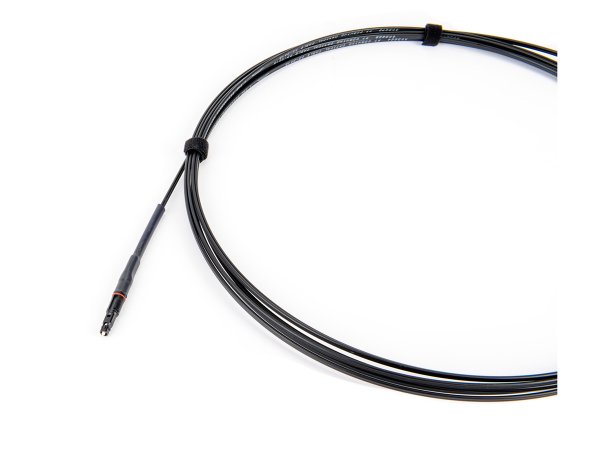

Corning Drop Cable 1F ROC Cable - Multiple Connectors/Lengths/Packaging

Corning Drop Cable 1F ROC Cable – Multiple Connectors / Lengths / Packaging (Including Pushlok-Bare)

The Corning Drop Cable 1F ROC Cable – Multiple Connectors / Lengths / Packaging (Including Pushlok-Bare) is a high-performance, pre-connectorised fibre solution designed to accelerate FTTH deployments while reducing installation time and cost.

Engineered with OptiTap® hardened connector technology, this drop cable assembly delivers factory-terminated, environmentally sealed connections for reliable performance in external network environments. Its plug-and-play design eliminates the need for on-site splicing, enabling faster and more consistent installations.

In addition to standard connector options, this range also includes Pushlok-Bare connector configurations, providing installers with greater flexibility for rapid field termination where required. This makes the cable suitable for a wider range of network architectures, including hybrid deployment scenarios.

With a reduced cable cross-section and enhanced flexibility, the ROC cable allows for tight bend routing and improved slack management within ONTs, pedestals and handholes. Its robust construction supports high pulling tension, making it ideal for duct, aerial and direct-buried installations.

Key Features:

• OptiTap® hardened connector technology for fast deployment

• Includes Pushlok-Bare connector option for flexible field termination

• Factory-terminated and environmentally sealed connections

• Available in multiple connector types:

  • SC/APC

  • OptiTap®

  • Hybrid (OptiTap® to SC/APC)

  • Pushlok-Bare

• Reduced cable diameter for improved flexibility

• Tight bend radius for installation in confined spaces

• Supports high pulling tension (up to 100 lb)

• Suitable for aerial, duct and direct-buried installations

• Available with one or both ends connectorised

• Optional pulling eye/grip configurations

Technical Specifications:

Connector Performance

• Insertion Loss (Typical): 0.15 dB

• Reflectance (Typical): -65 dB

Mechanical Performance

• Axial Pull (Plug to Adapter): 50 lb

• Axial Pull (Plug to Cable through dust cap): 100 lb

• Cold Mate/Demate: -40°C mechanical testing

Standards

• Design & Test Criteria: Telcordia GR-3120

Applications:

• FTTH drop cable deployments

• External network connections

• ONT connections in residential and MDU environments

• Hybrid installations requiring field termination flexibility

• Aerial, duct and direct-buried installations
