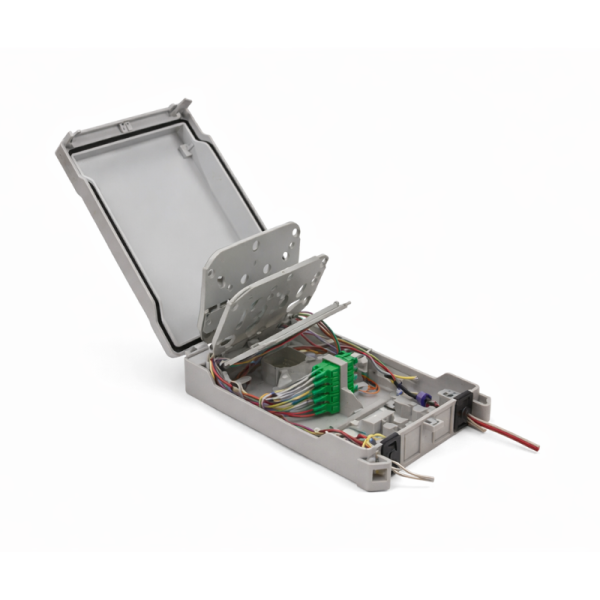

BEP S – Building Entry Point Size S (36F Loaded with 6 SC/APC Adaptors)
The BEP S (Building Entry Point – Size S) is a compact and robust fibre distribution enclosure designed for FTTH building access applications. With a splice capacity of up to 36 fibres and six SC/APC adaptors pre-installed, it allows efficient distribution of feeder to drop fibres at the entry point of residential or commercial buildings.
This enclosure provides secure fibre management, excellent bend-radius protection, and straightforward routing for both splicing and patching activities. Suitable for indoor or sheltered outdoor installation, the BEP S ensures clean and scalable connectivity during FTTP building deployment.
Key Features & Technical Specifications:
-
Pre-equipped with 6 SC/APC adaptors (capacity up to 7 SC or 14 LC connections)
-
Splice capacity: 36 fibres (3 trays × 12 FO)
-
Splitter capacity: 3 × 1:4 PLC or 1 × 1:8 PLC splitters
-
Cable input range: Ø2–12mm
-
Drop cable output capacity: 12 × Ø4–8mm or 36 × Ø2–3mm
-
Dimensions: 270 × 180 × 60 mm
-
Weight: 0.8–0.9 kg
-
Protection rating: IP55 water resistance, IK07 impact resistance
-
Material: PC/ASA with UV resistance and V0 fire resistance
-
Mounting: Wall mountable with strong anchoring system
-
Splice protection: Heatshrink or crimp (ANT) compatible
-
Design: Compact, discreet, and reliable for FTTH building entry
