Telenco MDU POE (with 1 SC/APC Adapter and 1 Pigtail SC/APC)

Telenco MDU POE (with 1 SC/APC Adapter and 1 Pigtail SC/APC)

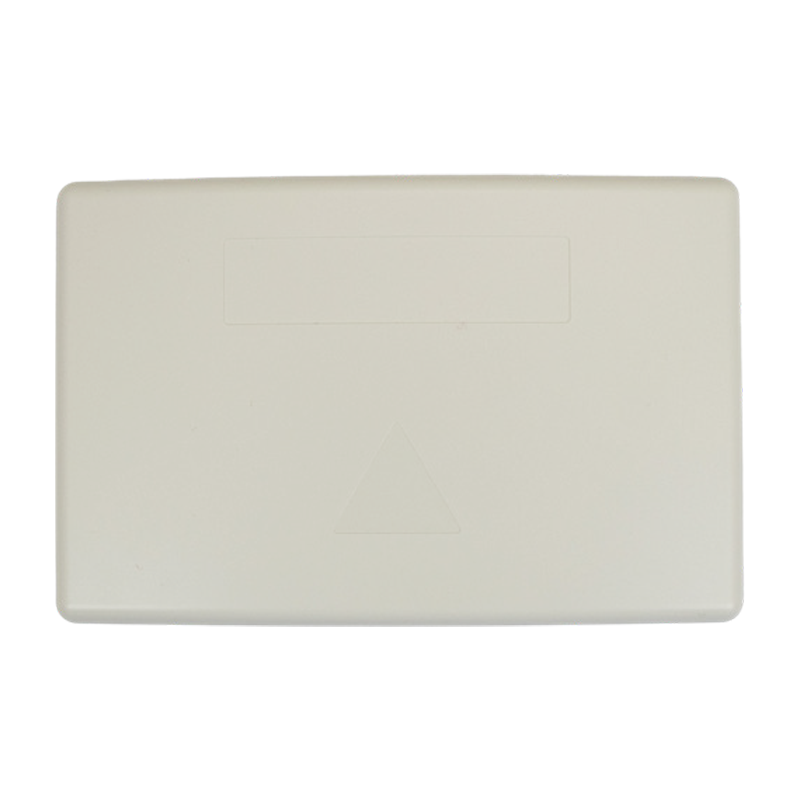

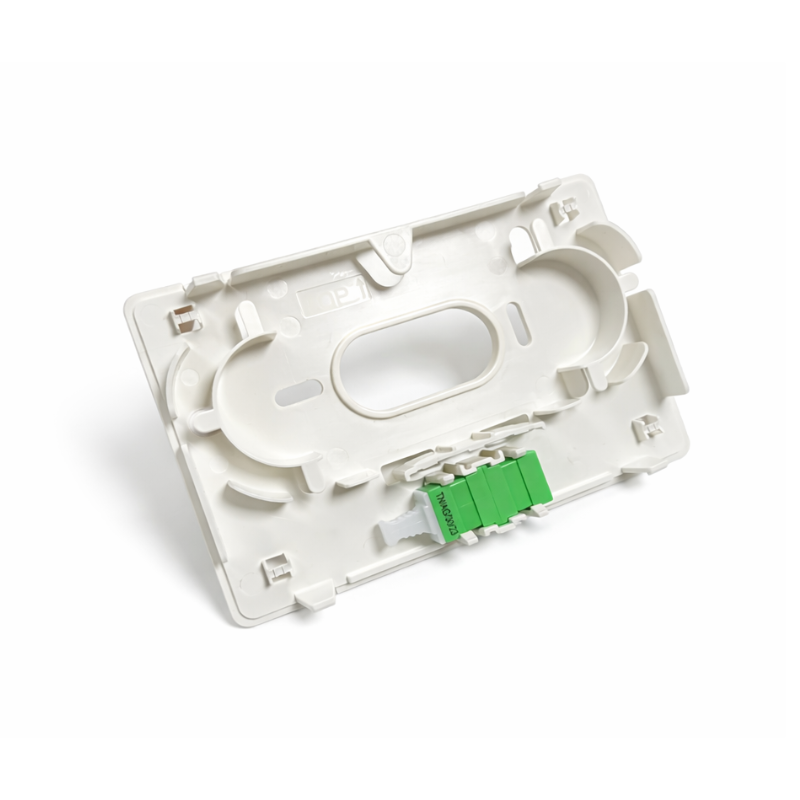

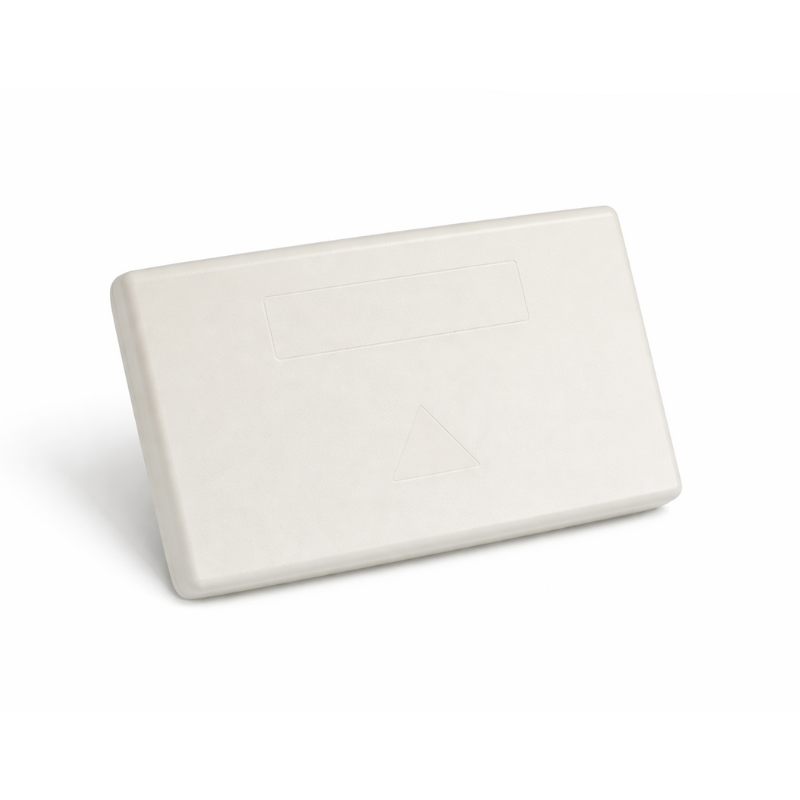

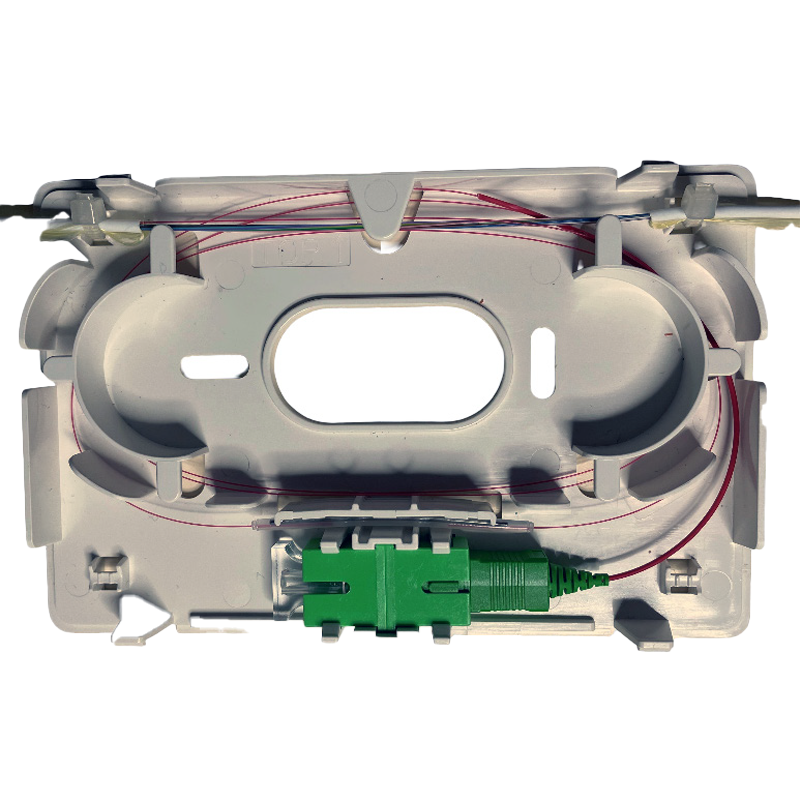

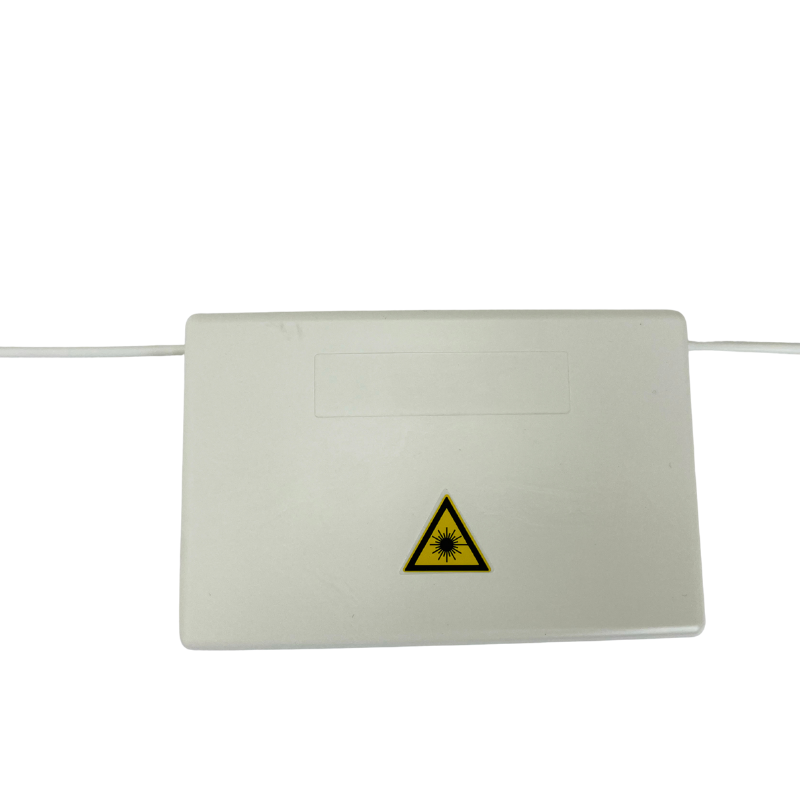

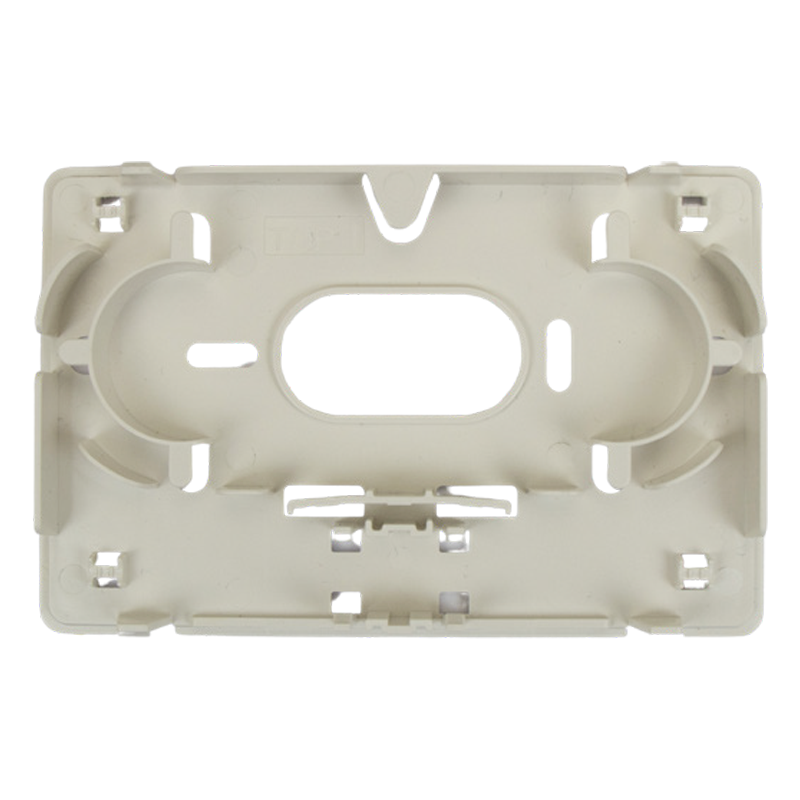

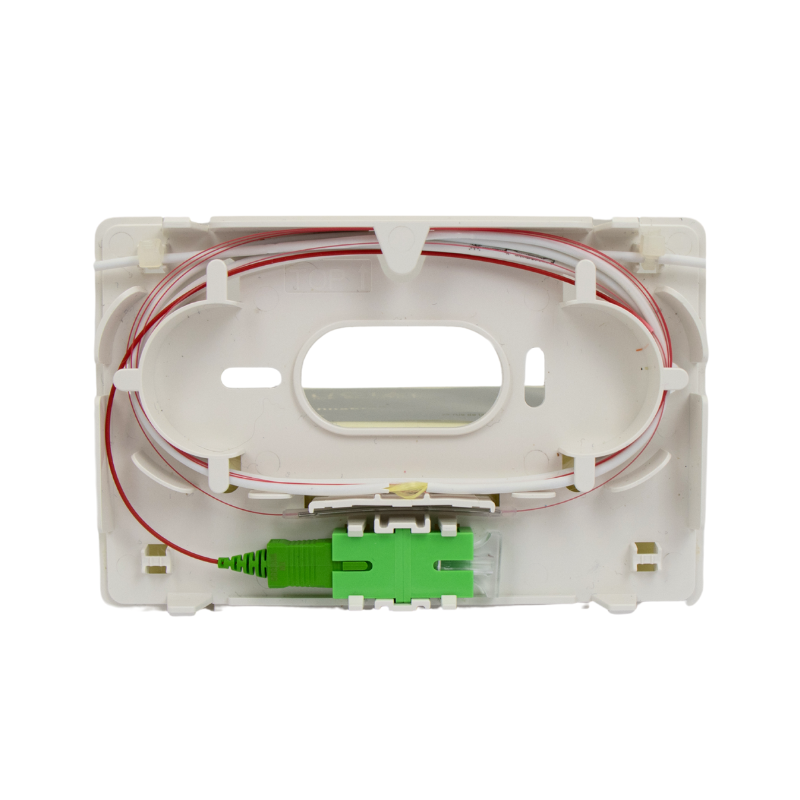

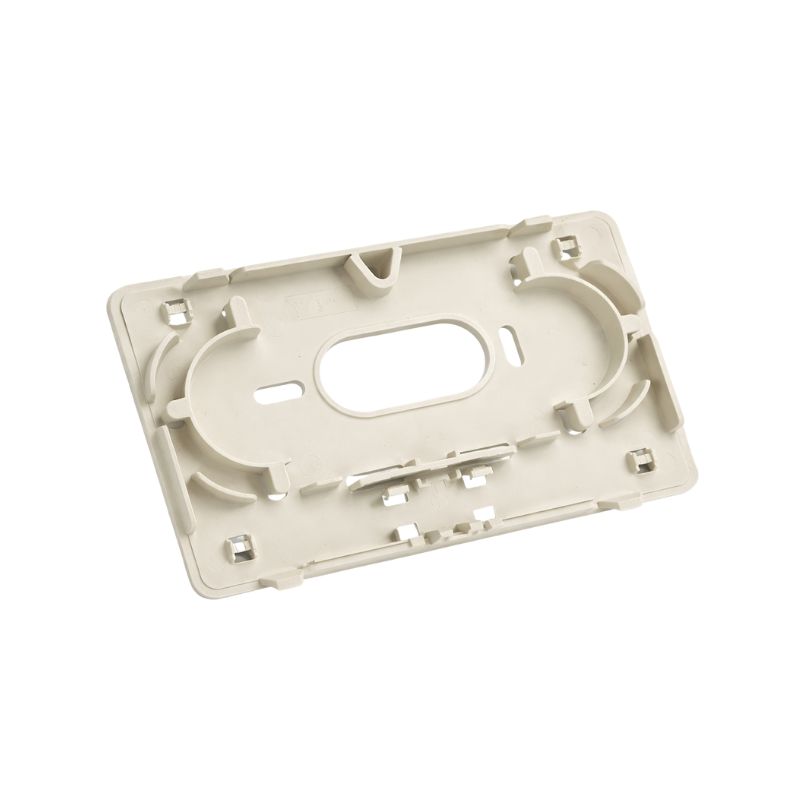

The Telenco Point of Entry (POE) box is a compact and discreet solution for Multi-Dwelling Units (MDUs), designed to provide a seamless transition between the building’s corridor cable and the fibre cable leading into an apartment. Installed near the apartment entrance, the POE enables a reliable connection of the customer’s Optical Network Terminal (ONT) to the FTTH network. With its flat, unobtrusive design and tool-free access, the POE box ensures quick installation, secure bending radius management, and a clean aesthetic for shared hallway spaces.

Supplied with 1 SC/APC adapter and 1 SC/APC pigtail, this MDU POE is an ideal solution for professional fibre deployments requiring both performance and discreet integration.

Key Features:

• Provides a reliable corridor-to-apartment fibre optic connection

• Compact, flat, and discreet design with minimal visual impact

• Cable input and output available on both sides for flexible routing

• Rear input option keeps corridor cable hidden from view

• Supplied with 1 SC/APC adapter and 1 SC/APC pigtail (G.657A2)

• Supports up to 3 fusion splices (+9 additional for 12FO model)

• Secured bending radius for fibre protection

• Tool-free opening for fast and easy access

Technical Specifications:

• Dimensions: 123 x 81 x 20 mm

• Weight: 0.08 kg

• Colour: White (RAL 9010)

• Operating Temperature: -10°C to +60°C

• Corridor Cable Diameter: 2 mm – 5 mm

• Minimum Bending Radius (inside box): >15 mm

• Optical Performance (pigtail):

  • Fibre type: G.657A2

  • Insertion Loss: ≤ 0.25 dB

  • Return Loss: ≥ 60 dB
