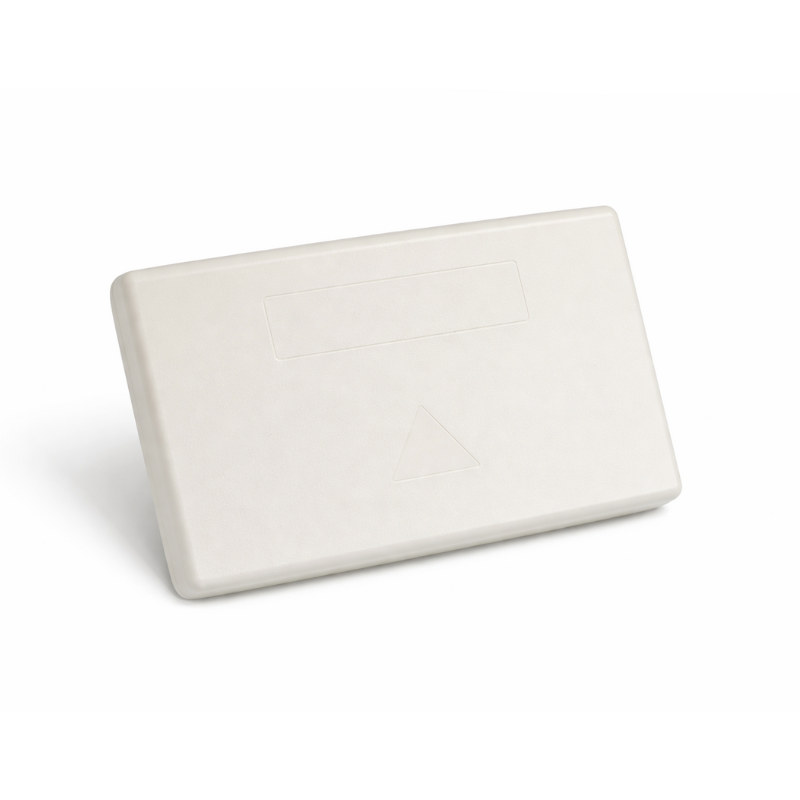

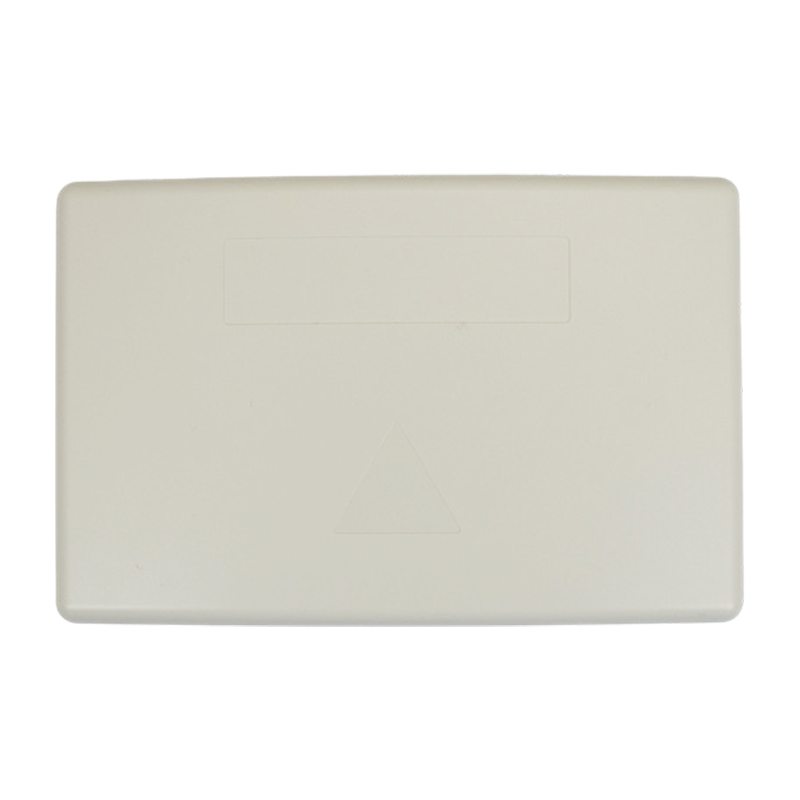

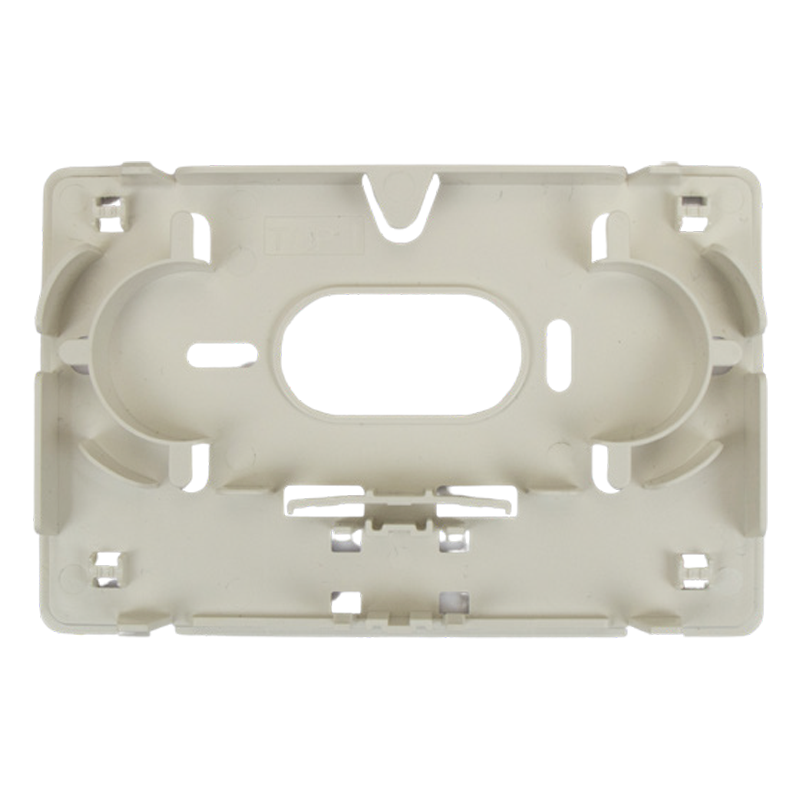

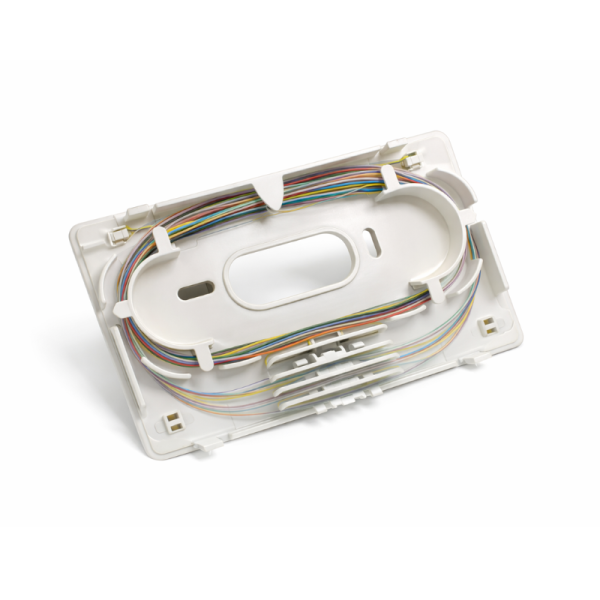

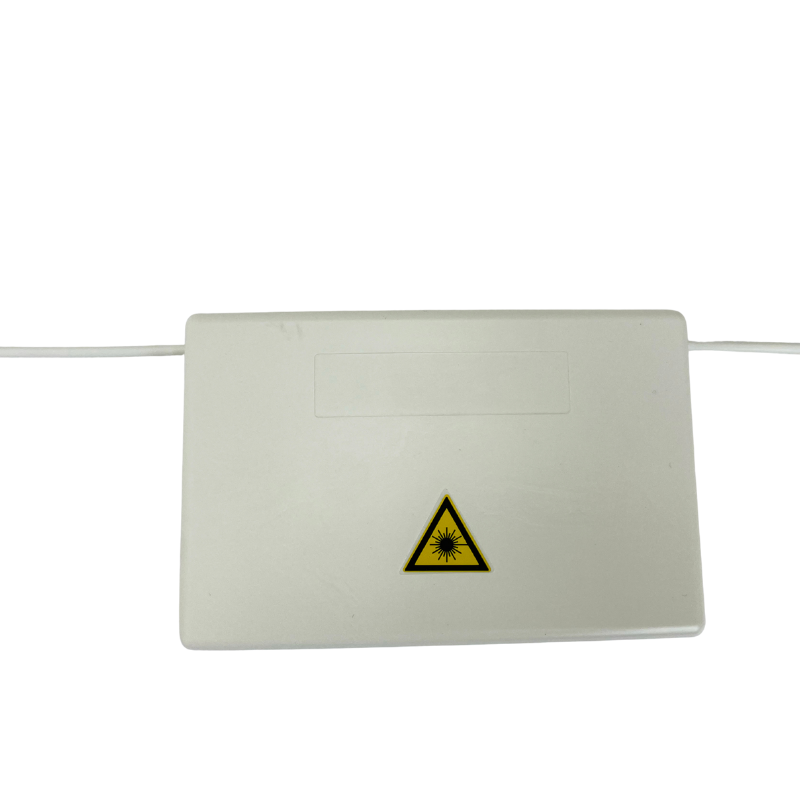

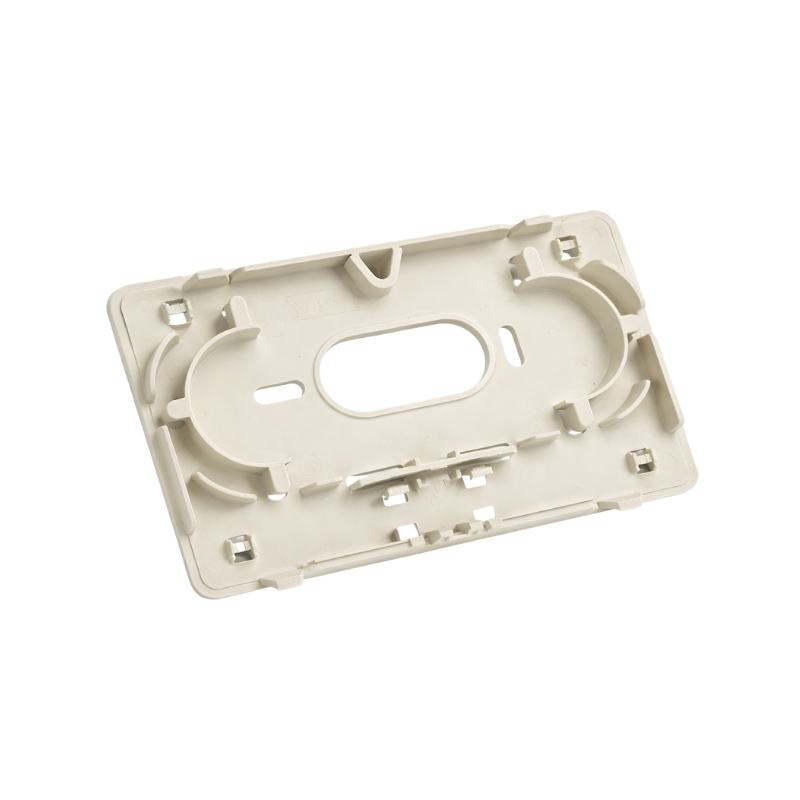

Telenco MDU POE Module (with 12F Splice Tray)

Telenco MDU POE Module (with 12F Splice Tray)

The Telenco MDU Point of Entry (POE) Module is designed for fibre optic deployment in Multi-Dwelling Units (MDUs), ensuring a reliable and discreet transition between corridor cabling and in-apartment connections. This model is supplied with a 12F splice tray, making it an ideal choice for professional installations where multiple fibre terminations are required.

Compact, flat, and easy to install, the POE Module can be mounted near the apartment entrance to provide a secure connection to the Optical Network Terminal (ONT). With secure fibre management and tool-free access, it delivers both practicality and aesthetic discretion in shared spaces.

Key Features:

• Provides seamless corridor-to-apartment fibre connection

• Compact, flat and discreet design for minimal visual impact

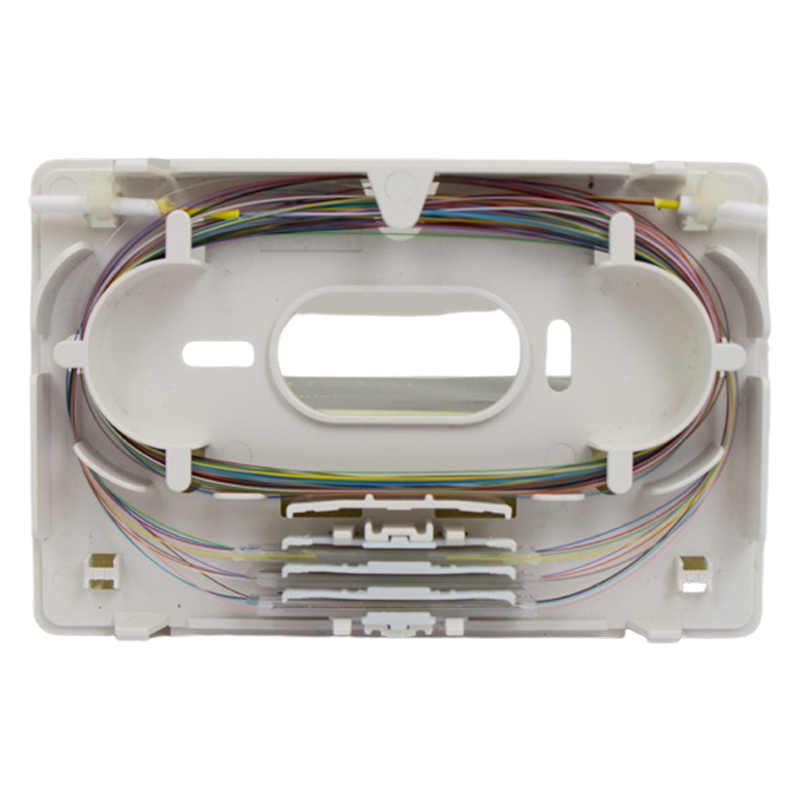

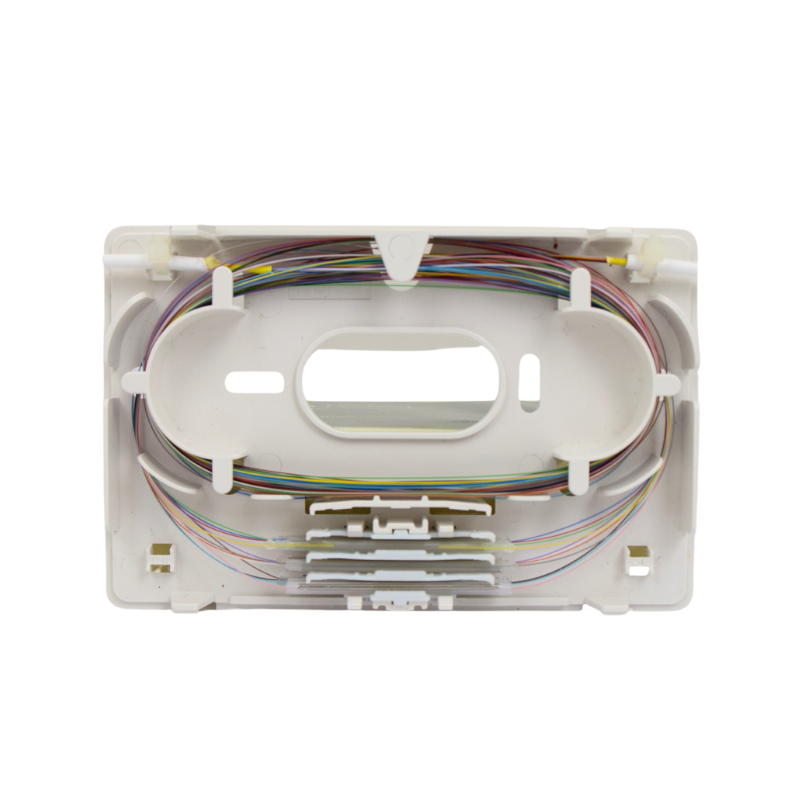

• Supplied with 12F splice tray for up to 12 fibre splices

• Supports multiple cable entry/exit configurations

• Rear input option to hide corridor cabling

• Tool-free opening for faster installation and maintenance

• Ensures secure bending radius for fibre protection

• Suitable for FTTH network deployment in MDUs

Technical Specifications:

• Dimensions: 123 x 81 x 20 mm

• Weight: 0.08 kg

• Colour: White (RAL 9010)

• Operating Temperature: -10°C to +60°C

• Corridor Cable Diameter: 2 mm – 5 mm

• Minimum Bending Radius (inside box): >15 mm

• Splicing Capacity: 12 fibres
