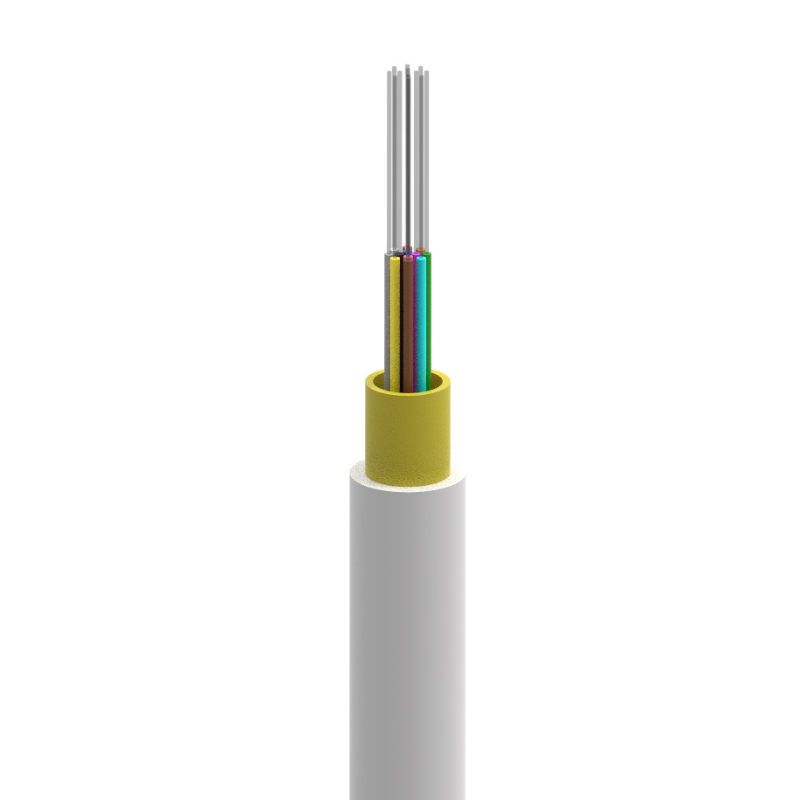

MDU Discreet Corridor Cable Assembly 12F G657B3 2mm SC/APC – Bare End Cca White – 100m
The MDU Discreet Corridor Cable Assembly 12F G657B3 2mm SC/APC – Bare End Cca White – 100m is a high-performance fibre solution designed for discreet routing within multi-dwelling units (MDUs). Ideal for longer corridor runs and riser installations, it enables clean, efficient and reliable fibre deployment across internal building environments.
Constructed using G.657B3 bend-insensitive fibre, this cable provides exceptional flexibility with minimal bending loss, making it perfectly suited to tight routing conditions and confined spaces. Its slim 2mm diameter ensures a low-visibility installation while maintaining consistent optical performance.
The cable features a FR-LSZH (Flame Retardant Low Smoke Zero Halogen) outer sheath and aramid yarn reinforcement, delivering durability, fire safety compliance and suitability for both indoor and outdoor applications.
Supplied as a 100 metre pre-terminated assembly, it includes SC/APC connectors on one end and a bare end on the other, allowing for rapid installation while maintaining flexibility for termination at the network side.
Key Features:
-

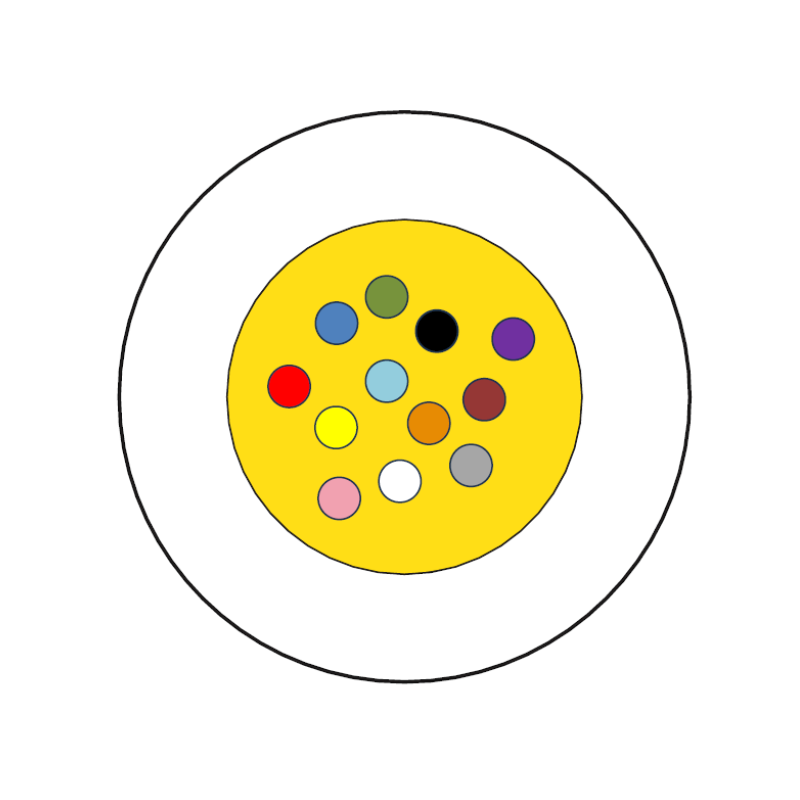

12 fibre (12F) G.657B3 bend-insensitive cable
-
2mm slim diameter for discreet installations
-
100 metre pre-terminated assembly
-
SC/APC to bare end configuration
-
FR-LSZH outer sheath for fire-safe installations
-
Aramid yarn reinforcement for durability
-
Suitable for indoor and outdoor use
-
CPR Cca compliant
Technical Specifications:
-
Product Type: Corridor fibre cable assembly
-
Fibre Type: G.657B3 singlemode
-
Fibre Count: 12F
-
Cable Diameter: 2.0 mm (discreet corridor format)
-
Length: 100 m
-
Connector Type: SC/APC (one end) – Bare end (other end)
-
Outer Sheath: FR-LSZH (Low Smoke Zero Halogen)
-
Strength Member: Aramid yarns
-
CPR Rating: Cca s1b d1 a2
-
Operating Temperature: -40°C to +70°C
-
Installation Temperature: -10°C to +65°C
Applications:
-
MDU corridor and riser installations
-
Discreet internal fibre routing
-
Building entry and distribution networks
-
FTTH and FTTx deployments
-
Telecom and broadband infrastructure
