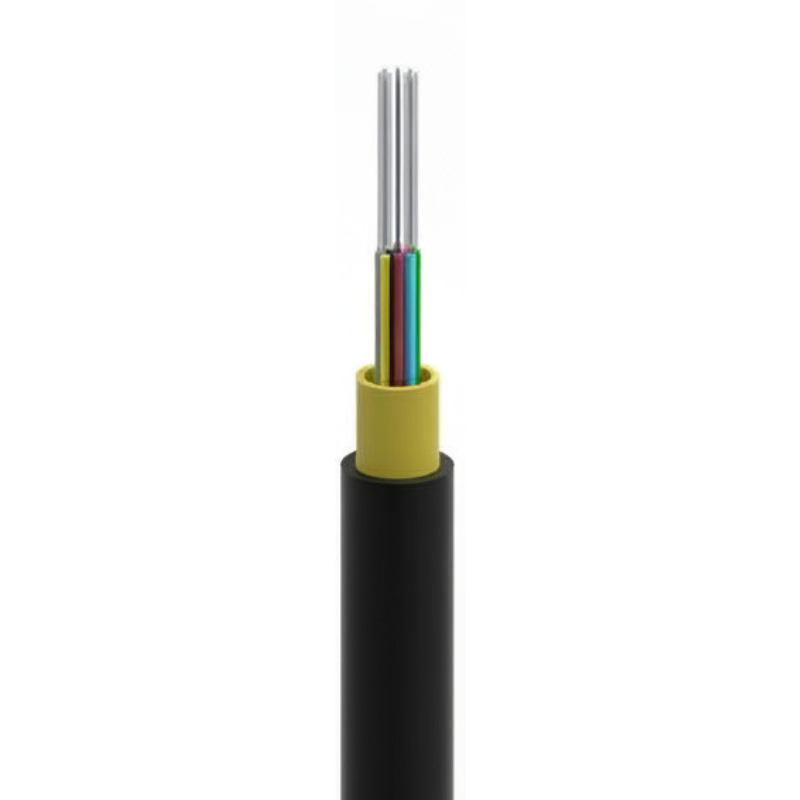

MDU Discreet Corridor Cable Assembly 12F G657B3 2mm SC/APC – Bare End Cca Black – 75m
The MDU Discreet Corridor Cable Assembly 12F G657B3 2mm SC/APC – Bare End Cca Black – 75m is a compact, high-performance fibre solution designed for discreet routing within multi-dwelling units (MDUs). It enables clean, efficient and reliable fibre deployment across corridors, risers and internal building pathways.
Constructed using G.657B3 bend-insensitive fibre, this cable delivers excellent flexibility with minimal bending loss, making it ideal for tight routing environments and confined spaces. Its slim 2mm diameter ensures a low-profile installation while maintaining consistent optical performance.
The cable features a FR-LSZH (Flame Retardant Low Smoke Zero Halogen) outer sheath and aramid yarn reinforcement, providing durability, fire safety compliance and suitability for both indoor and outdoor applications. The black outer sheath offers a discreet finish where darker cable routing is preferred.
Supplied as a 75 metre pre-terminated assembly, it includes SC/APC connectors on one end and a bare end on the other, enabling fast deployment while maintaining flexibility for termination at the network side.
Key Features:
-
12 fibre (12F) G.657B3 bend-insensitive cable
-
2mm slim diameter for discreet installations
-
75 metre pre-terminated assembly
-
SC/APC to bare end configuration
-
Black FR-LSZH outer sheath for fire-safe installations
-
Aramid yarn reinforcement for strength and durability
-
Suitable for indoor and outdoor use
-
CPR Cca compliant
Technical Specifications:
-
Product Type: Corridor fibre cable assembly
-
Fibre Type: G.657B3 singlemode
-
Fibre Count: 12F
-
Cable Diameter: 2.0 mm (discreet corridor format)
-
Length: 75 m
-
Connector Type: SC/APC (one end) – Bare end (other end)
-
Outer Sheath: FR-LSZH (Low Smoke Zero Halogen)
-
Colour: Black
-
Strength Member: Aramid yarns
-
CPR Rating: Cca s1b d1 a2
-
Operating Temperature: -40°C to +70°C
-
Installation Temperature: -10°C to +65°C
Applications:
-
MDU corridor and riser installations
-
Discreet internal and external fibre routing
-
Building entry and distribution networks
-
FTTH and FTTx deployments
-
Telecom and broadband infrastructure
