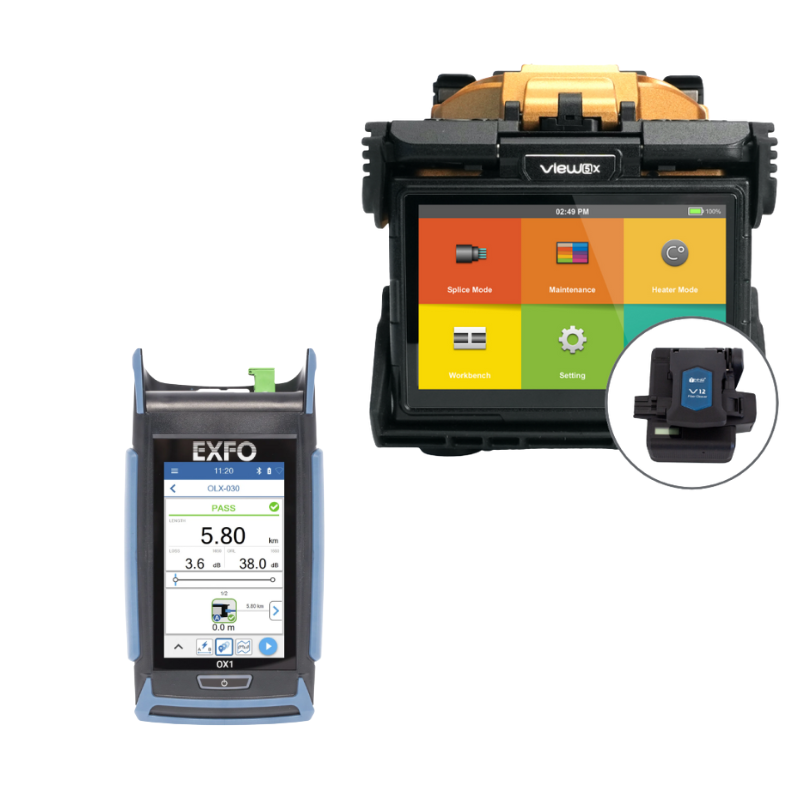

EXFO OX1-PRO-M-88-00 & INNO Fusion Splicer View 5X Core Alignment Bundle

EXFO OX1-PRO-M-88-00 & INNO View 5X Fusion Splicer – Core Alignment Bundle

The EXFO OX1-PRO-M-88-00 Optical Explorer (OX1) paired with the INNO View 5X Fusion Splicer delivers a complete fibre optic testing and splicing solution for network operators and installation teams. This professional bundle is designed to simplify fibre deployment, ensure accurate splicing, and guarantee reliable network performance.

The EXFO OX1-PRO-M-88-00 Optical Explorer is an advanced optical tester that combines power meter, loss testing, and OTDR-like fault-finding capabilities in one compact device. It enables technicians to quickly pinpoint issues and certify fibre links with confidence. The INNO View 5X Fusion Splicer features state-of-the-art core alignment technology, fast splicing, and an intuitive user interface, making it ideal for precise, low-loss fibre joins in FTTH and enterprise networks.

Key Features:

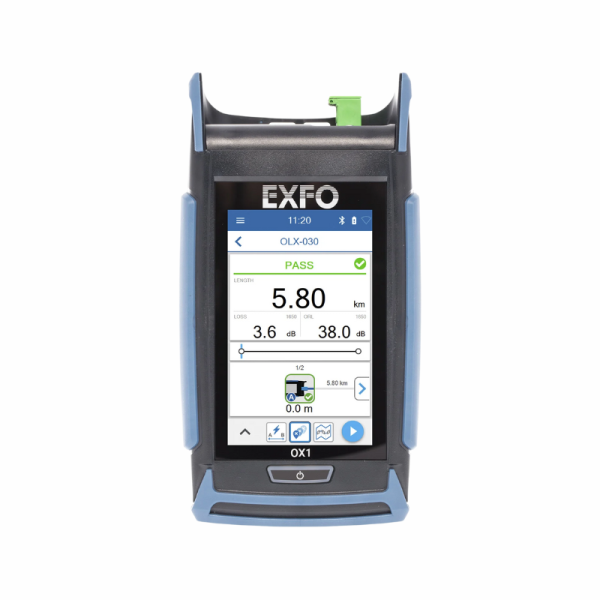

EXFO OX1-PRO-M-88-00 Optical Explorer

• Multifunction tester: power meter, insertion loss, and fault finder

• Real-time fault tracking and link verification

• Compact, rugged, and field-ready design

• User-friendly touchscreen interface

• Optimised for singlemode fibre (G.652/G.657)

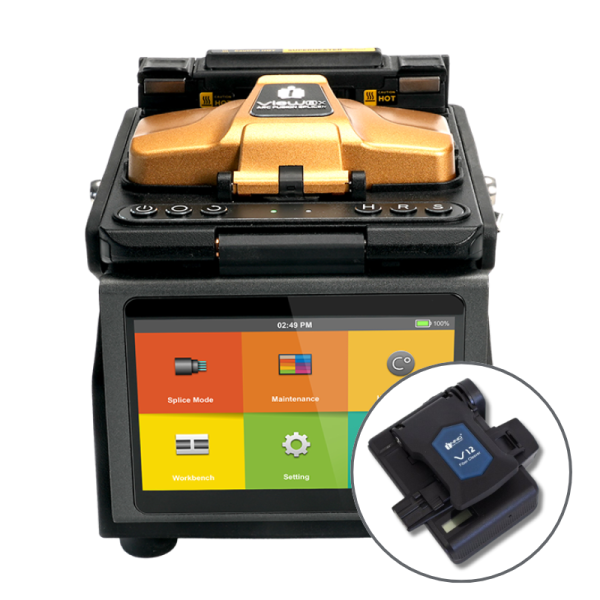

INNO View 5X Fusion Splicer

• High-precision core alignment technology

• Splicing time: ~6–8 seconds

• Heating time: ~13 seconds

• 5-inch colour LCD with intuitive GUI

• Compact, lightweight, and rugged for field use

• Consistently low splice loss and high reliability

Technical Specifications:

EXFO OX1-PRO-M-88-00:

• Fibre Type: Singlemode OS2 (G.652, G.657)

• Display: Touchscreen

• Functions: Power meter, loss tester, fault locator

• Form Factor: Handheld

INNO View 5X Splicer:

• Alignment: Core alignment

• Typical Splice Loss: 0.02 dB (SM)

• Splice Time: ~7 sec

• Heating Time: ~13 sec

• Display: 5” LCD screen

• Memory: Up to 10,000 results
