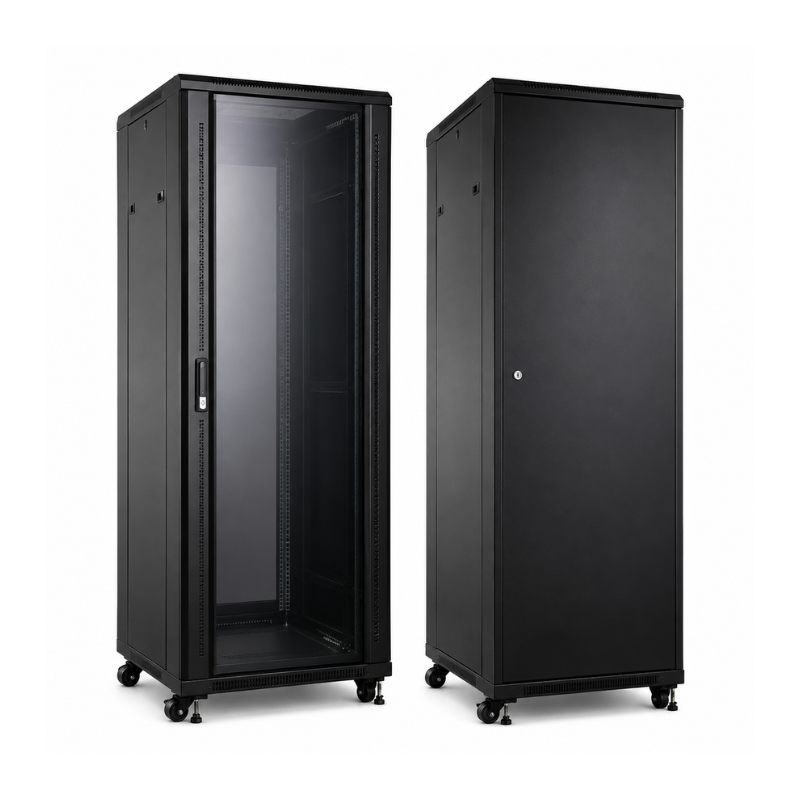

UPTEC 19" Network Rack – 42U – 800 x 800mm – 400kg – Glass Front Door – Black
The UPTEC 19" 42U Network Rack – 800 x 800mm is a professional floor-standing server and network cabinet designed to house, organise and protect standard 19-inch equipment. Providing 42U of rack capacity and a maximum load capacity of 400kg, it offers substantial installation space for networking, fibre, server and communications infrastructure.
With external dimensions of 800 x 800 x 1984mm, the cabinet provides additional width for equipment installation and cable management while offering an 800mm depth for compatible rack-mounted hardware. The cabinet incorporates four reinforced vertical uprights, providing increased structural strength and stability for installed equipment.
A lockable glass front door provides clear visibility of equipment while helping control physical access. The removable side panels feature both clip and key-locking mechanisms, allowing convenient access during installation, cable management and maintenance while helping secure equipment once installation is complete. Four included levelling feet allow the cabinet to be stabilised on uneven flooring. Finished in professional RAL 9005 black and rated to IP20, the rack provides protection against solid objects greater than 12mm. Screws and a grounding kit are also included to support safe and efficient installation.
Key Features:
-
Professional UPTEC 42U floor-standing network rack
-
Standard 19-inch format for compatible rack-mounted equipment
-
800 x 800 x 1984mm external dimensions
-
Maximum load capacity of 400kg
-
Lockable glass front door for secure equipment visibility
-
Removable side panels with clip and key-lock system
-
Four reinforced vertical uprights for increased cabinet strength
-
Four levelling feet for stable positioning
-
Screws and grounding kit included
-
IP20 rated with professional RAL 9005 black finish
Technical Specifications:
-
Brand: UPTEC
-
Product Type: Server Cabinet / Network Rack
-
Rack Format: 19"
-
Rack Capacity: 42U
-
External Dimensions: 800 x 800 x 1984mm
-
Width: 800mm
-
Depth: 800mm
-
Height: 1984mm
-
Maximum Load Capacity: 400kg
-
Front Door: Glass, lockable
-
Side Panels: Removable, clip-locked and key-locked
-
Vertical Uprights: 4 reinforced uprights
-
Levelling Feet: 4 included
-
IP Rating: IP20
-
Protection: Solid objects greater than 12mm
-
Colour: Black
-
RAL Colour: RAL 9005
-
Screws: Included
-
Grounding Kit: Included
-
Installation Type: Floor Standing
Applications:
-
Data centres
-
Server rooms
-
Enterprise networks
-
Telecom infrastructure
-
Structured cabling installations
-
Fibre optic infrastructure
-
Network switch installations
-
Patch panel installations
-
Communications rooms
-
Network equipment housing
