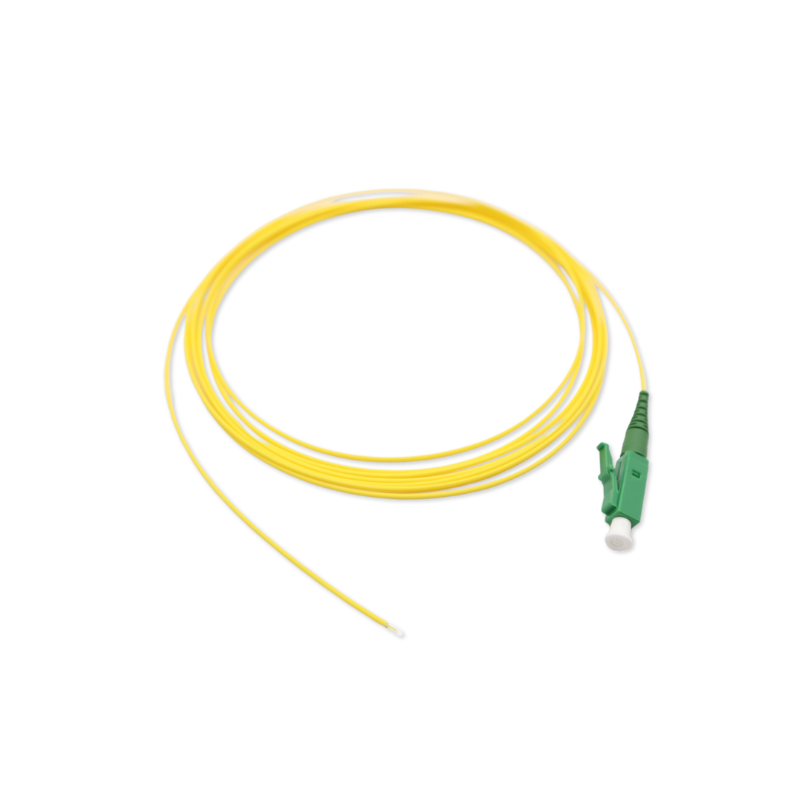

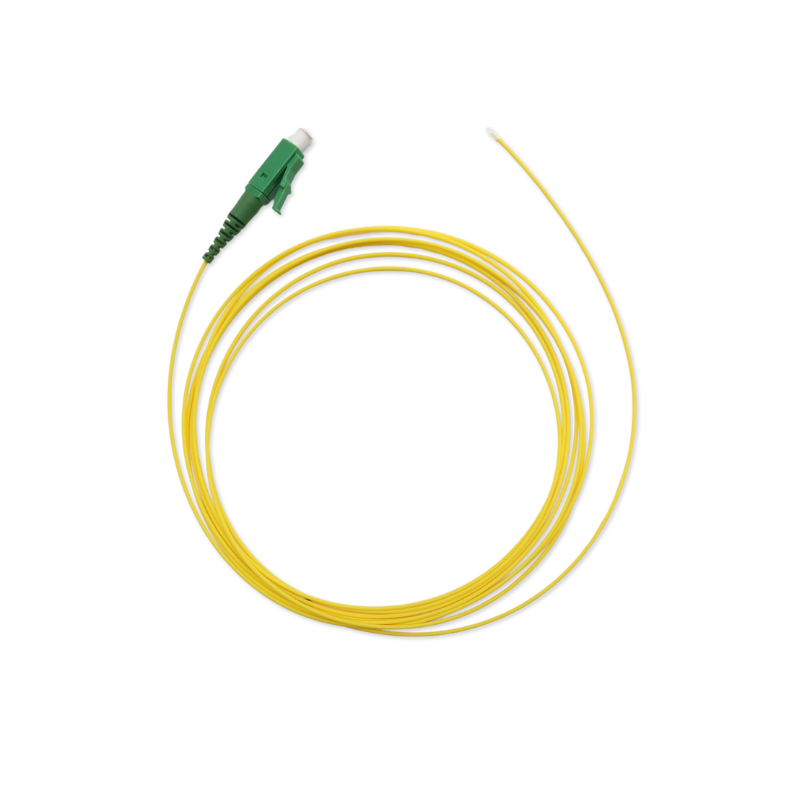

Telenco Pigtail – Yellow – Simplex – SC/APC – G.657A2 – 900µm – 2m

Telenco Pigtail – Yellow – Simplex – SC/APC – G.657A2 – 900µm – 2m

The Telenco 2m Simplex SC/APC Fibre Pigtail is designed for reliable singlemode fibre termination and splicing across FTTH, data centre and telecommunications networks. Manufactured using G.657A2 bend-insensitive singlemode fibre, it supports compact routing within fibre management systems while maintaining dependable optical performance.

Factory-terminated with an SC/APC connector, the pigtail provides low insertion loss of ≤0.25dB and high return loss of ≥60dB. The connector features a zirconia ceramic ferrule for precise fibre alignment and consistent optical connectivity.

The 900µm yellow buffered fibre features LSZH construction for flame retardance and reduced smoke emissions. Its compact diameter and bend-insensitive G.657A2 fibre make it particularly suitable for routing within ODFs, patch panels, splice trays and telecommunications cabinets.

Designed for durability and consistent performance, the pigtail supports up to 500 mating cycles and is tested for resistance to dust, temperature variations and water immersion.

Key Features:

• 2m singlemode fibre optic pigtail

• Simplex (SX) configuration

• Factory-terminated SC/APC connector

• G.657A2 bend-insensitive singlemode fibre

• Compact 900µm buffered fibre

• Yellow for singlemode identification

• LSZH construction

• ≤0.12dB typical insertion loss

• ≤0.25dB maximum insertion loss

• ≥60dB return loss

• Zirconia ceramic ferrule

• Thermoplastic connector body

• Up to 500 mating cycles

• Suitable for compact fibre routing

• Tested for dust, temperature and water immersion resistance

• Suitable for FTTH, data centre and telecom applications

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Pigtail

• Configuration: Simplex (SX)

• Connector: SC/APC

• Connector Polish: APC (Angled Physical Contact)

• Fibre Type: Singlemode G.657A2

• Length: 2m

• Fibre Diameter: 900µm (0.9mm)

• Colour: Yellow

• Material: LSZH

• Connector Body: Thermoplastic

• Ferrule Material: Zirconia

• Insertion Loss: ≤0.12dB typical / ≤0.25dB maximum

• Return Loss: ≥60dB

• Operating Temperature: -40°C to +75°C

• Mechanical Durability: 500 Mating Cycles

• Environmental Resistance: Dust, Temperature and Water Immersion Tested

• Standards: IEC 61300

Applications:

• FTTH networks

• FTTx infrastructure

• Telecommunications networks

• Data centre fibre infrastructure

• Optical distribution frames (ODFs)

• Fibre optic patch panels

• Splice trays and cassettes

• Telecom cabinets

• Fusion splicing

• Fibre termination
