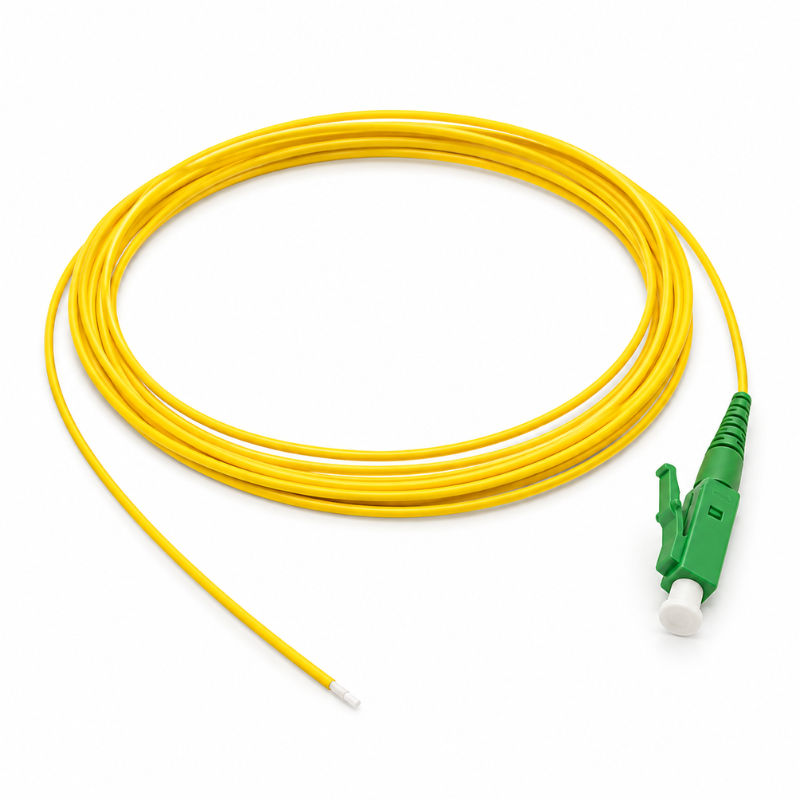

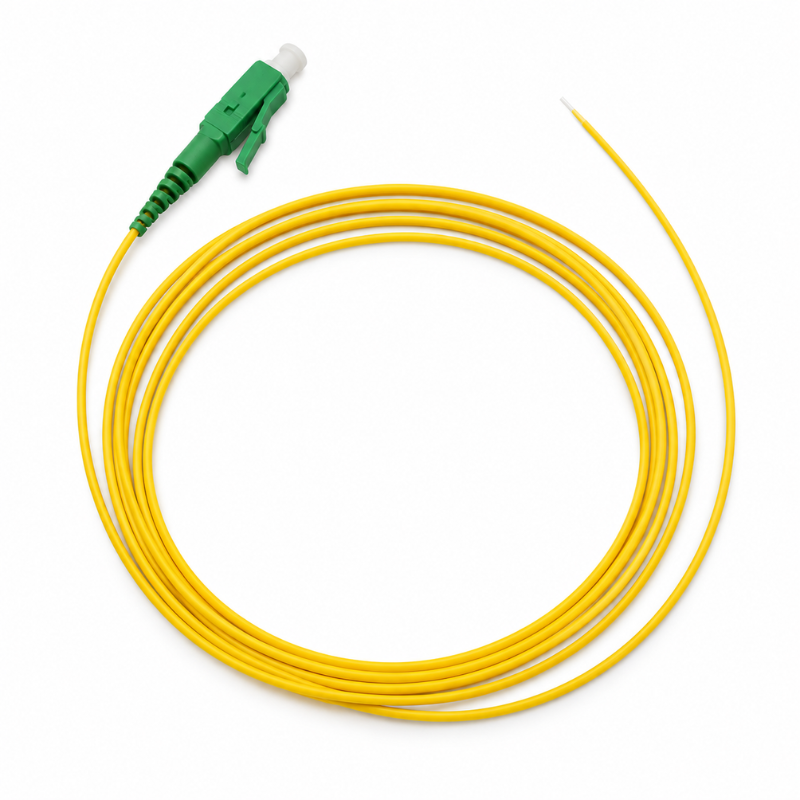

Telenco Pigtail – Yellow – Simplex – LC/APC – G.657A2 – 900µm – 1m

Telenco Pigtail – Yellow – Simplex – LC/APC – G.657A2 – 900µm – 1m

The Telenco 1m Simplex LC/APC Fibre Pigtail is designed for reliable singlemode fibre termination and splicing across FTTH, telecommunications and data centre networks. Manufactured using G.657A2 bend-insensitive singlemode fibre, it provides increased flexibility for routing within compact fibre management systems.

Factory-terminated with an LC/APC connector, the pigtail provides low insertion loss of ≤0.25dB maximum and high return loss of ≥60dB. The factory-polished APC interface provides a consistent optical connection for applications where dependable signal performance is required.

The 900µm yellow buffered fibre provides a compact and durable construction suitable for routing within ODFs, patch panels, fibre trays and splicing cassettes. Its G.657A2 fibre construction is particularly suited to installations where tighter routing and controlled bend performance are important.

At 1 metre long, the pigtail is ideal for short internal routing and fusion splicing applications, helping minimise excess fibre while maintaining straightforward installation and fibre management.

Key Features:

• 1m singlemode fibre optic pigtail

• Simplex (SX) configuration

• Factory-terminated LC/APC connector

• G.657A2 bend-insensitive singlemode fibre

• Compact 900µm buffered fibre

• Yellow for singlemode identification

• LSZH construction

• ≤0.25dB maximum insertion loss

• ≤0.12dB typical insertion loss

• ≥60dB return loss

• Factory-polished APC connector

• Up to 500 mating cycles

• Suitable for compact fibre routing

• Ideal for fibre termination and fusion splicing

• IEC 61300-3-6 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Pigtail

• Configuration: Simplex (SX)

• Connector: LC/APC

• Connector Polish: APC (Angled Physical Contact)

• Fibre Type: Singlemode G.657A2

• Length: 1m

• Fibre Diameter: 900µm

• Colour: Yellow

• Material: LSZH

• Insertion Loss: ≤0.25dB maximum

• Typical Insertion Loss: ≤0.12dB

• Return Loss: ≥60dB

• Operating Temperature: -40°C to +75°C

• Durability: 500 Mating Cycles

• Compliance: IEC 61300-3-6

Applications:

• FTTH networks

• Telecommunications networks

• Data centre fibre infrastructure

• Optical distribution frames (ODFs)

• Fibre optic patch panels

• Fibre trays

• Splicing cassettes

• Fusion splicing

• Fibre termination

• Telecom cabinets
