Telenco Pigtail – Yellow – Simplex – SC/APC – G.657A2 – 900µm – 1m

Telenco Pigtail – Yellow – Simplex – SC/APC – G.657A2 – 900µm – 1m

The Telenco 1m Simplex SC/APC Fibre Pigtail is designed for reliable singlemode fibre termination and splicing across FTTH, FTTx, PON and telecommunications networks. Manufactured using G.657A2 bend-insensitive singlemode fibre, it provides increased flexibility for routing within compact fibre management systems.

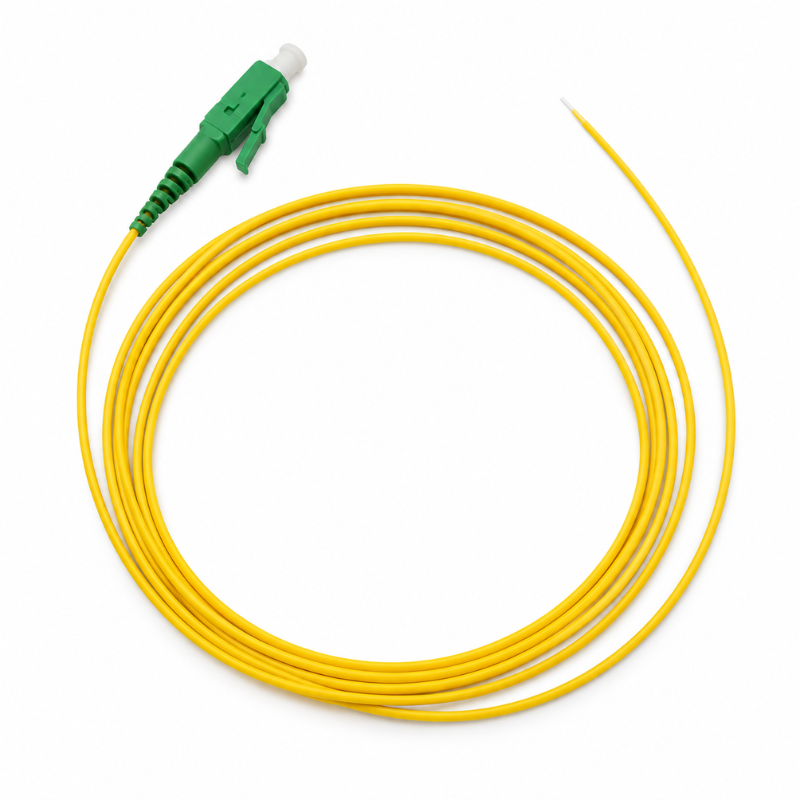

Factory-terminated with a green SC/APC connector, the pigtail provides precise optical connectivity with an insertion loss of ≤0.25dB maximum and ≤0.12dB typical. A return loss of ≥60dB makes it suitable for applications requiring dependable optical performance.

The 900µm yellow buffered fibre features an LSZH (Low Smoke Zero Halogen) coating and is suitable for routing within splice trays, patch panels, optical enclosures and telecom cabinets. Its G.657A2 construction provides improved bend performance for space-constrained installations.

At 1 metre long, the pigtail is particularly suited to short internal routing and fusion splicing applications where efficient fibre management and minimal excess fibre are required.

Key Features:

• 1m singlemode fibre optic pigtail

• Simplex (SX) configuration

• Factory-terminated SC/APC connector

• G.657A2 bend-insensitive singlemode fibre

• Compact 900µm buffered fibre

• Yellow for singlemode identification

• LSZH construction

• ≤0.25dB maximum insertion loss

• ≤0.12dB typical insertion loss

• ≥60dB return loss

• Green SC/APC connector

• Up to 500 mating cycles

• Suitable for compact fibre routing

• Compatible with splice trays, patch panels and enclosures

• IEC 61300-3-6 compliant

Technical Specifications:

• Brand: Telenco

• Product Type: Fibre Optic Pigtail

• Configuration: Simplex (SX)

• Connector: SC/APC

• Connector Polish: APC (Angled Physical Contact)

• Connector Colour: Green

• Fibre Type: Singlemode G.657A2

• Length: 1m

• Fibre Diameter: 900µm (0.9mm)

• Colour: Yellow

• Jacket Material: LSZH

• Insertion Loss: ≤0.25dB maximum

• Typical Insertion Loss: ≤0.12dB

• Return Loss: ≥60dB

• Operating Temperature: -40°C to +75°C

• Mechanical Durability: 500 Mating Cycles

• Compliance: IEC 61300-3-6

Applications:

• FTTH networks

• FTTx infrastructure

• PON networks

• Telecommunications networks

• Fibre optic patch panels

• Optical distribution frames (ODFs)

• Splice trays and cassettes

• Optical enclosures

• Telecom cabinets

• Fusion splicing and fibre termination
