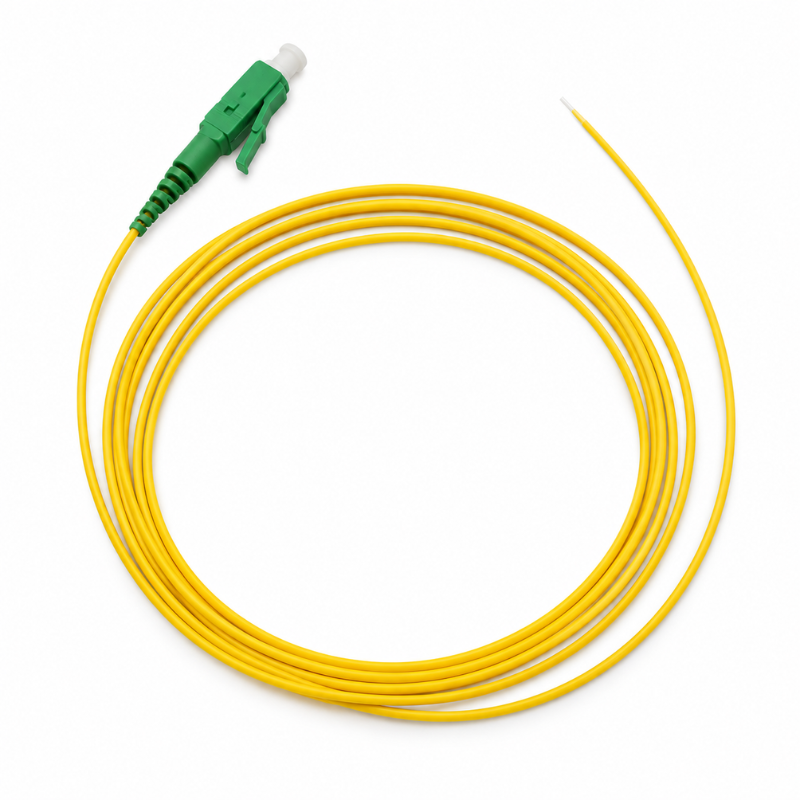

Telenco Pigtail – Double Sheath LSZH – SC/APC – G.657B3 – 1FO – 5.0/3.0mm – 50m
The Telenco 50m SC/APC Fibre Pigtail is a robust single-fibre assembly designed for telecommunications, FTTH and fibre access network installations. Manufactured using G.657B3 bend-insensitive singlemode fibre, it is particularly suited to applications requiring flexible routing and reliable optical connectivity over longer installation distances.
Featuring a single SC/APC connector, the pigtail provides a factory-terminated connection at one end while leaving the opposite end available for splicing into the fibre network. The APC connector format is widely used within PON and FTTH infrastructure where controlled optical reflections are important.
The pigtail features a double-sheath LSZH construction with 5.0mm / 3.0mm diameters, providing additional mechanical protection compared with standard lightweight buffered pigtails. The Low Smoke Zero Halogen construction makes it suitable for professional telecommunications environments where cable fire performance is an important consideration.
With a 50m length and 1FO configuration, the assembly is suitable for longer routing between fibre termination, distribution and connection points while retaining the installation benefits of bend-insensitive G.657B3 fibre.
Key Features:
-
Telenco single-fibre pigtail
-
50m cable length
-
1FO configuration
-
Factory-terminated SC/APC connector
-
G.657B3 bend-insensitive singlemode fibre
-
Double-sheath construction
-
5.0mm / 3.0mm cable construction
-
LSZH (Low Smoke Zero Halogen) sheath
-
Designed for increased mechanical protection
-
Suitable for longer fibre routing applications
-
Suitable for fibre termination and splicing
-
Ideal for FTTH and telecommunications infrastructure
Technical Specifications:
-
Brand: Telenco
-
Product Type: Fibre Optic Pigtail
-
Fibre Count: 1FO
-
Connector: SC/APC
-
Connector Polish: APC (Angled Physical Contact)
-
Fibre Type: Singlemode G.657B3
-
Length: 50m
-
Cable Construction: Double Sheath
-
Cable Diameter: 5.0mm / 3.0mm
-
Sheath Material: LSZH (Low Smoke Zero Halogen)
Applications:
-
FTTH networks
-
FTTx infrastructure
-
PON networks
-
Telecommunications networks
-
Fibre access networks
-
Optical distribution systems
-
Fibre termination points
-
Telecom cabinets and enclosures
-
Fusion splicing
-
Long-distance internal fibre routing
