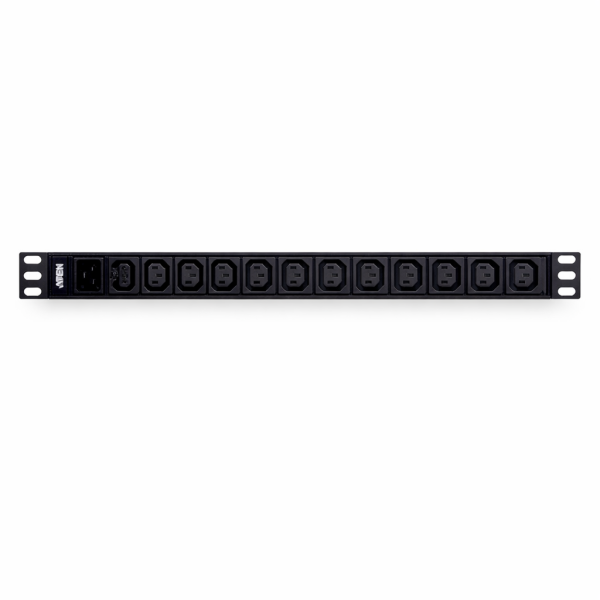

ATEN PE0212G – 16A PDU – 12 x C13 – C20 Input – 1U / 0U
The ATEN PE0212G is a compact and reliable 16A rack PDU designed to support professional fibre optic and network installations. Engineered for international deployment, it accepts an input voltage range of 100–240V AC (50/60Hz), ensuring compatibility across global infrastructure environments.
Featuring a single IEC 320 C20 input and 12 x IEC 320 C13 outlets, the unit delivers a nominal output voltage of 240V with a maximum current of 10A per outlet, supporting a total power capacity of 3840 VA. Integrated overcurrent protection (OPD) safeguards connected equipment, making it suitable for sensitive IT and telecom hardware.
With flexible installation options supporting both 1U horizontal or 0U mounting, and a lightweight design of just 0.63 kg, the PE0212G integrates seamlessly into server racks and structured network cabinets. A 10-foot power cord enhances installation flexibility in data centre and comms room environments.
Designed for operation between 0°C and 40°C, with a recommended 60% load reduction at elevated temperatures to maintain compliance and safety, this PDU provides dependable and secure power distribution in demanding professional settings.
Key Features:
-
16A input power rating
-
1 x IEC 320 C20 input connection
-
12 x IEC 320 C13 outlets
-
100–240V AC, 50/60Hz international compatibility
-
Maximum output power: 3840 VA
-
Overcurrent protection (OPD)
-
Supports 1U horizontal or 0U vertical mounting
-
10-foot power cord for flexible installation
-
Lightweight, compact design
-
LVD compliant
Technical Specifications:
Electrical Input
-
Input Voltage: 100–240V AC
-
Input Frequency: 50–60Hz
-
Maximum Input Current: 16A
-
Input Connector: IEC 320 C20
Electrical Output
-
Nominal Output Voltage: 240V
-
Outlets: 12 x IEC 320 C13
-
Maximum Output Current per Outlet: 10A
-
Total Maximum Power: 3840 VA
Protection
Environmental
Physical
Compliance
Applications:
