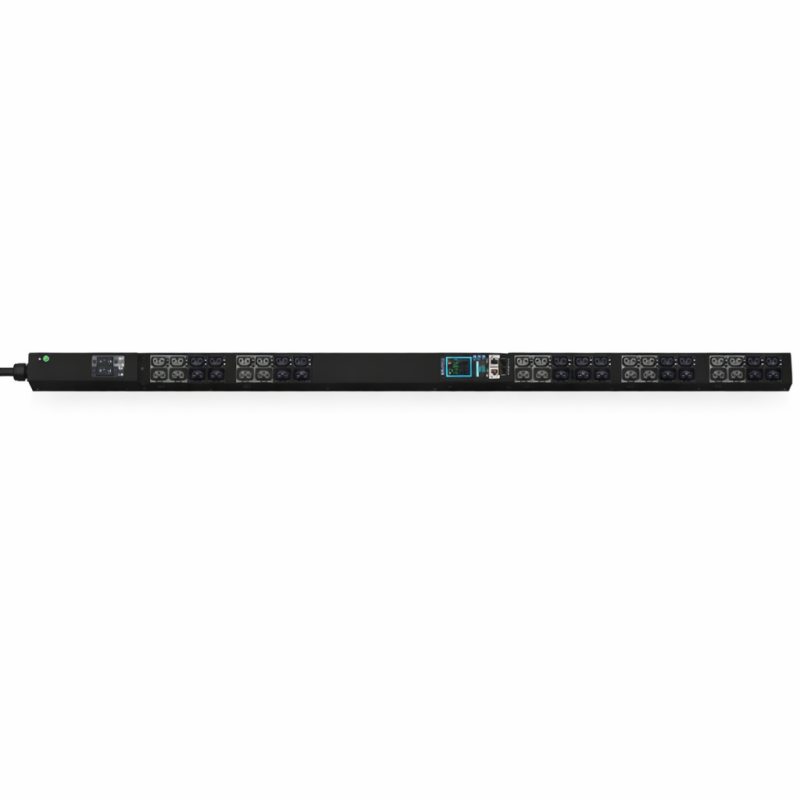

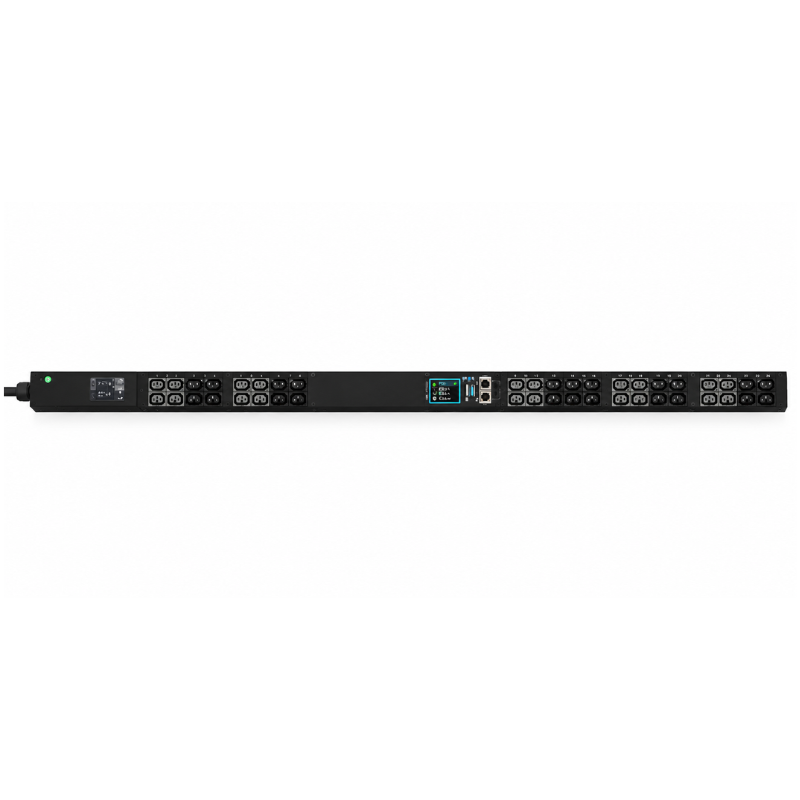

PDU 1P 32A – Metered at Input – 40P (20 x C13/C15, 20 x C13/C15/C19/C21)
The PDU 1P 32A – Metered at Input – 40P is a single-phase intelligent power distribution unit designed for professional server rack and colocation environments requiring accurate input-level energy monitoring.
Featuring 40 high-density combo outlets — 20 x C13/C15 and 20 x C13/C15/C19/C21 (4-in-1 universal) — this unit provides exceptional flexibility for mixed IT loads, supporting both standard and high-power equipment within the same rack.
Equipped with an IEC 60309 32A input, this PDU delivers up to 7.4 kW active power and enables precise measurement of power consumption at the input phase. Metered input functionality allows operators to monitor load levels, improve capacity planning and enhance operational efficiency without requiring per-outlet switching.
Designed for modern data centre environments, this Rackeon Series configuration corresponds to reference EN1350 .
Key Features:
-
Single-phase 32A IEC 60309 input
-
40 total outlets
-
Metered at input for accurate load monitoring
-
Active power rating: 7.4 kW
-
High-density outlet configuration
-
Suitable for mixed IT and high-power equipment
-
Designed for server racks and colocation environments
Technical Specifications:
-
Product Type: Metered (input) rack PDU
-
Phase: 1P (Single Phase)
-
Input Connector: IEC 60309 (32A)
-
Total Outlets: 40
-
20 x C13/C15
-
20 x C13/C15/C19/C21
-
Active Power: 7.4 kW
-
Monitoring: Input-level energy measurement
-
Series: Rackeon
Applications:
-
Data centre server racks
-
High-density IT deployments
-
Colocation facilities
-
Enterprise network cabinets
-
Energy-monitored rack power distribution
