Internal / External 24F AFN – 1 × 1:8 Splitter with 8 LC/APC Adaptors – Grey
The Internal / External 24F AFN– 1 × 1:8 Splitter with 8 LC/APC Adaptors – Grey is a compact and pre-configured fibre distribution solution designed for efficient FTTH deployments in MDU and access network environments.

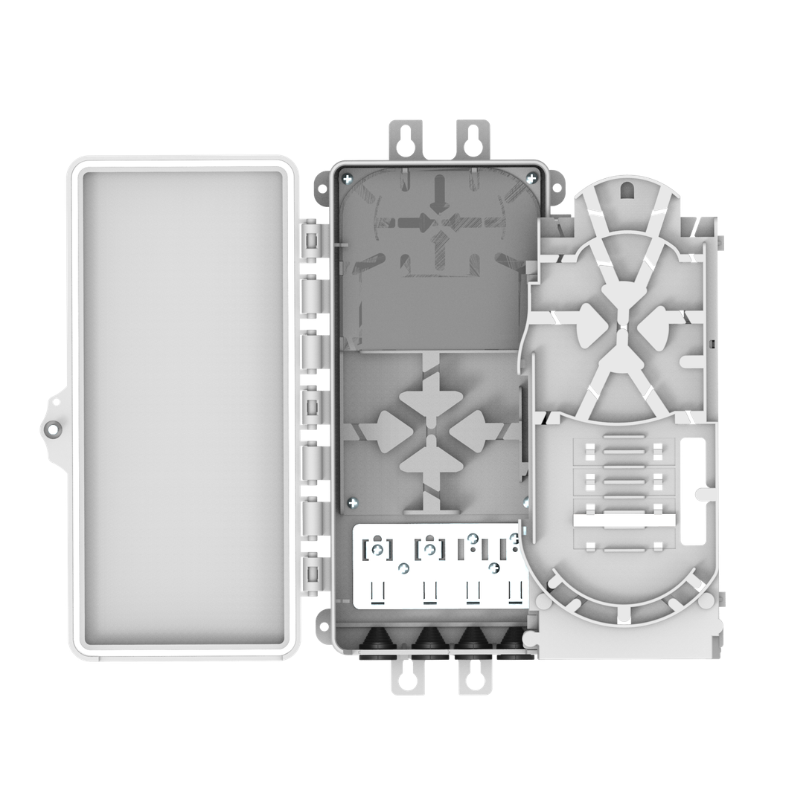

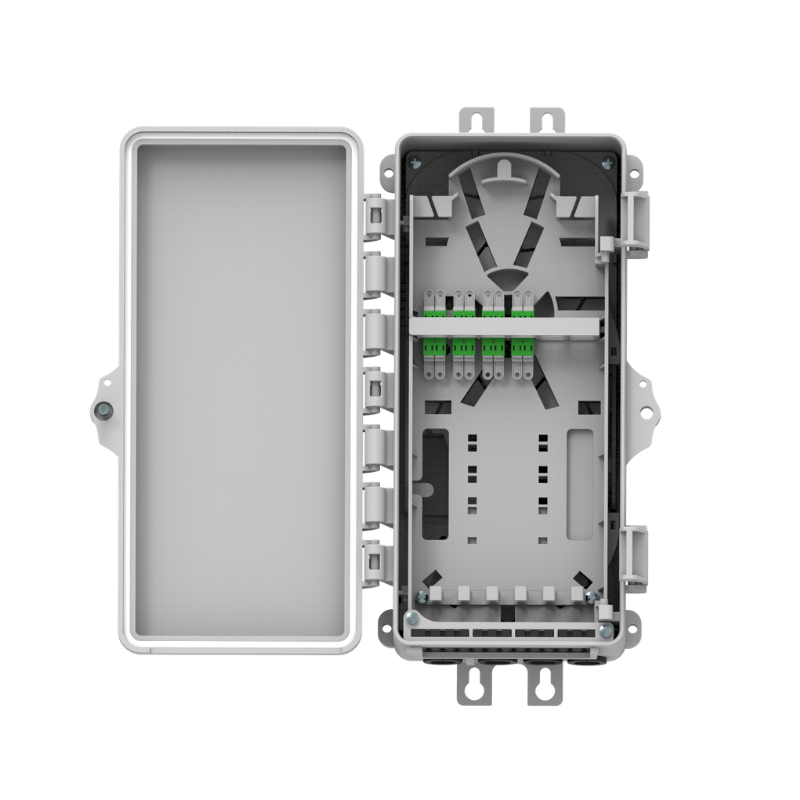

Supplied with an integrated 1 × 8 PLC splitter and 8 LC/APC adaptors, this enclosure enables fast and consistent installations by reducing on-site configuration requirements. Its internal layout supports structured fibre routing, secure splicing and organised cable management, ensuring reliable performance and a professional finish.
Designed for both indoor and outdoor use, the enclosure provides durable protection with an IP54-rated housing, making it suitable for a wide range of installation environments. The unit also supports mid-span cable access, offering flexibility for network expansion and retrofit applications.
Key Features:
-
Pre-configured with 1 × 8 PLC splitter and 8 LC/APC adaptors
-
24F splice capacity for flexible fibre management
-
Suitable for internal and external installations (IP54 rated)
-
Compact, installer-friendly design
-
Supports mid-span cable access
-
Organised cable routing and storage system
-
Durable, impact-resistant housing
-
Wall and pole mountable
Technical Specifications:
-
Product Type: Fibre Distribution Point (FDP)
-
Fibre Capacity: 24F splice capacity
-
Splitter Configuration: 1 × 8 PLC splitter (G.657A2 fibre)
-
Adaptors: 8 × LC/APC
-
Mounting Options: Wall and pole mounted
-
IP Rating: IP54
-
Material: PC + ABS (UL94-V0 flame rated)
-
Colour: Grey
Cable Entry / Exit:
Applications:
-
MDU fibre distribution
-
FTTH and FTTx deployments
-
Internal and external building installations
-
Pre-terminated fibre distribution systems
-
Residential and light commercial fibre networks
