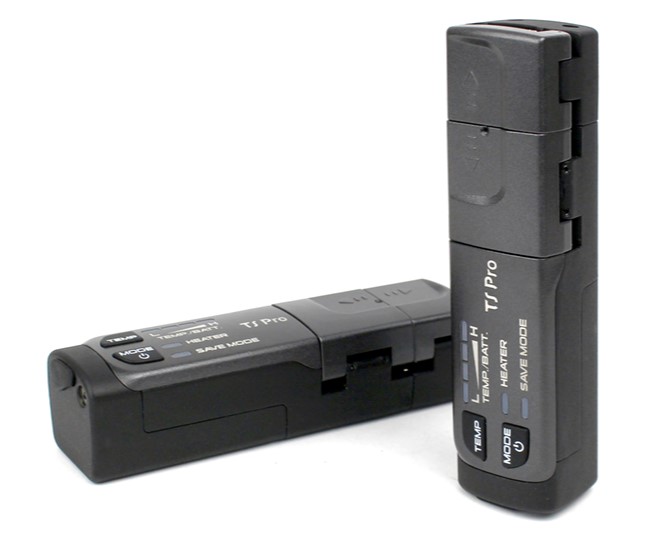

Thermal Stripper Fibre TS Pro

TS Pro is developed as a dedicated stripper mainly for ribbon fibre cable and rollable cable with thermal heater. With its simple and fast operation, anyone can do clear stripping with near-zero failure. It is a very stable tool with lightweight material
(0)
 Call or Request Quote
Product attachments Product attachments
TS Pro Datasheet (Download)
See description
Request for quote

Description

Description:

TS Pro is a long-lasting stripper for ribbon cable and rollable cable.

Model              TS Pro
Fibre Material Silica Glass
Coating Diameter 200 ~ 400μm
Cladding Diameter 125μm
Applicable Fibre  1 to 16
Stripping Length Up to 30mm
Heating Mode Normal Mode / Power Save Mode
Heating Time Normal Mode: approx. 4sec  /  Power Save Mode: approx. 5sec
Temperature Setting Normal Mode: approx. 80ºC, 95ºC, 110ºC, 130ºC Power Save Mode: approx. 70ºC, 80ºC, 95ºC, 110ºC
Battery Capacity 880mAh, approx. 500 (12 Ribbon fiber, Level 1, SAVE mode)
Power Supply  AC Drive: AC100~240V, 50/60Hz DIN Port: DC 12V power supplied from fusion splicer
Operating Condition Temperature: 0ºC ~ 40ºC / Humidity: 0% ~ 95%
Dimensions 139W x 34D x 34H mm
Weight 227g (without battery)  /  269g (with battery)

Technical characteristics

  • Product model
  • INNO/STR/TS2
