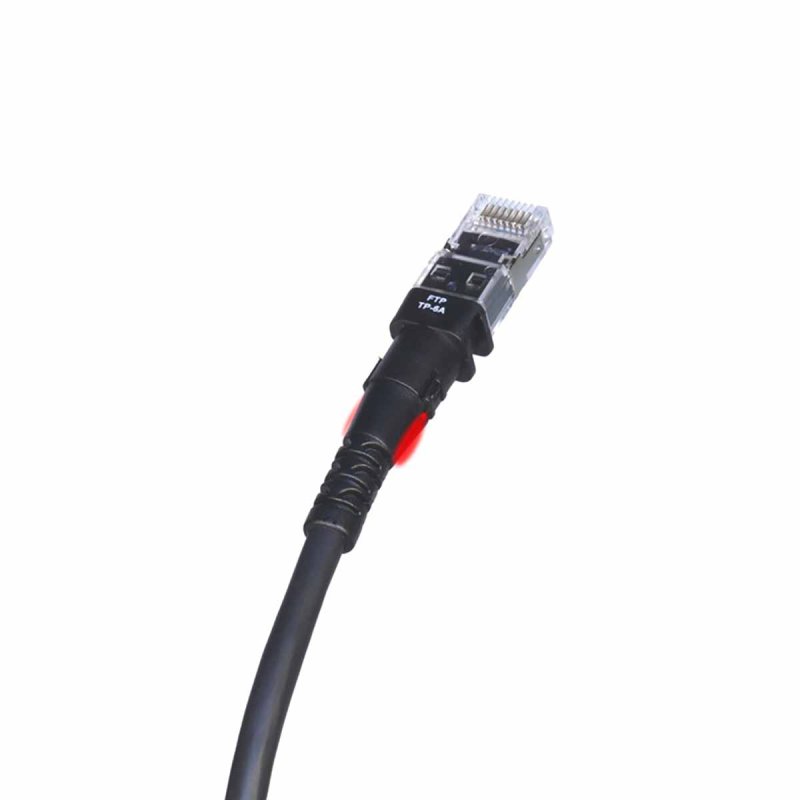

The RJ45 cord with light identification integrates Patchsee and Patchclip technologies, allowing for quick and simple identification. Compatible with Pro-Patchlight light injectors, this cord is ideal for high-density environments thanks to its slim sleeve, offering better accessibility and easier mixing.
Main Features:- Patchsee and Patchclip technologies for easy identification with 16 available colors
- 11 available lengths from 0.6 m to 4.9 m
- Black sheath with reference and length marking on the sleeve
- UTP and FTP versions 100 Ohms
- Compatible with categories 5e, 6, 6a (TIA/EIA-568.2-D and ISO/IEC 11801-2:2017 standards)
- Application up to 10 Gbit/s
- Slim sleeve for better density and flexibility
- Tinned copper conductor, AWG 28, and plastic fiber optical waveguide
- Individual shielding per pair: Aluminum laminated metal foil
- Drain: Tinned steel wire
- LSOH sheath
- Overall diameter: 4.9 mm, bending radius of 14.7 mm
Technical Specifications:- 4 pairs - Type: U-FTP
- Tinned copper wire, 7 / 0.124 +/- 0.003 mm
- Insulation: High-density polyethylene
- Individual shielding per pair: Aluminum laminated metal foil
- Drain: Tinned steel wire, 7 / 0.152 mm
|
