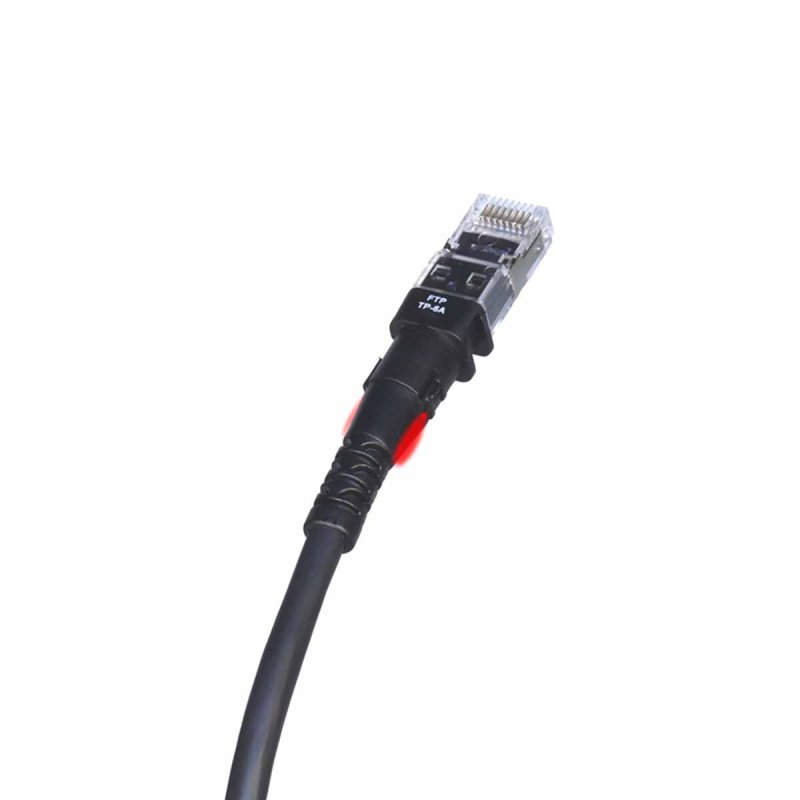

The illuminated RJ45 cable incorporates Patchsee and Patchclip technologies, allowing for quick and easy identification. Compatible with Pro-Patchlight light injectors, this cable is ideal for high-density environments thanks to its slim sleeve, offering better accessibility and easier cable management.
Main Features:- Patchsee and Patchclip technologies for easy identification with 16 available colors
- 11 available lengths from 0.6m to 4.9m
- Black sheath with reference and length markings on the sleeve
- UTP and FTP versions 100 Ohms
- Compatible with categories 5e, 6, 6a (TIA/EIA-568.2-D and ISO/IEC 11801-2:2017 standards)
- Supports speeds up to 10 Gbit/s
- Slim sleeve for better density and flexibility
- Tinned copper conductor, AWG 28 and optical waveguide in plastic fiber
- Individual pair shielding: Aluminum-laminated metal foil
- Drain: Tinned steel wire
- LSOH sheath
- Overall diameter: 4.9mm, bending radius of 14.7mm
Technical Specifications:- 4 pairs - Type: U-FTP
- Tinned copper wire, 7/0.124 +/- 0.003 mm
- Insulation: High-density polyethylene
- Individual pair shielding: Aluminum-laminated metal foil
- Drain: Tinned steel wire, 7/0.152 mm
|
