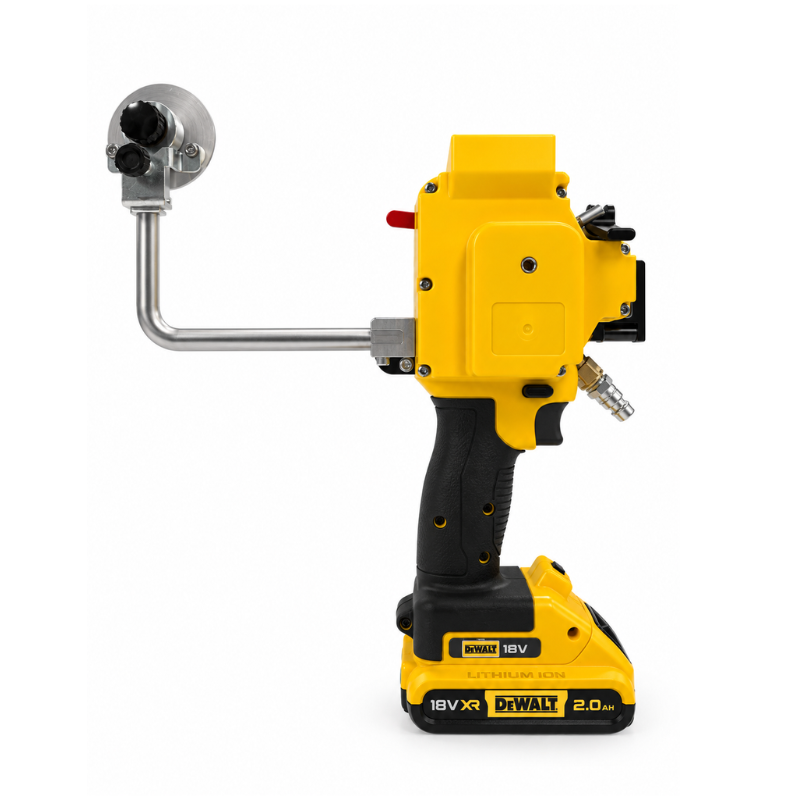

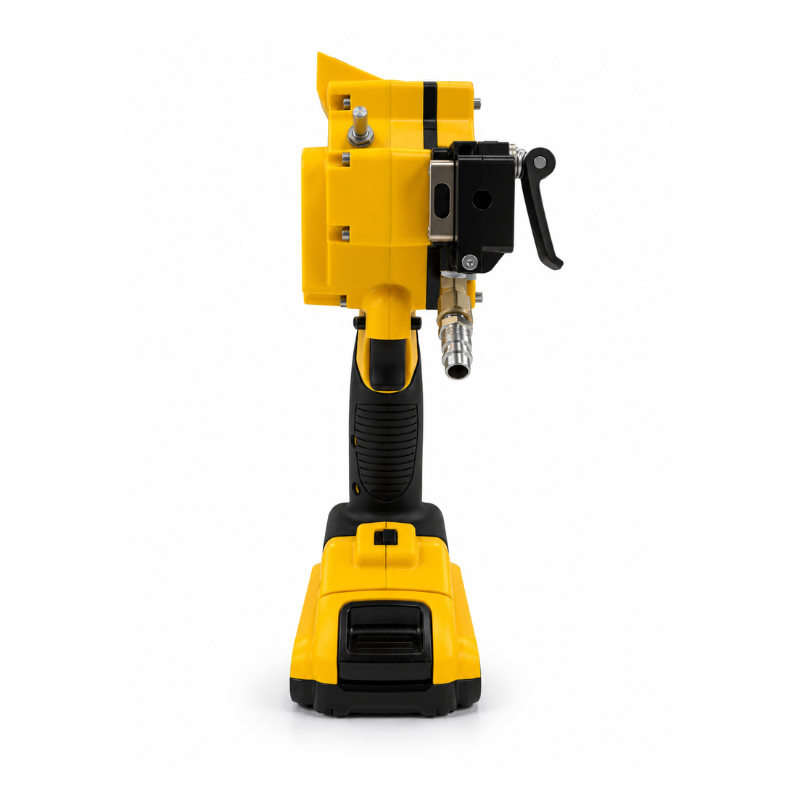

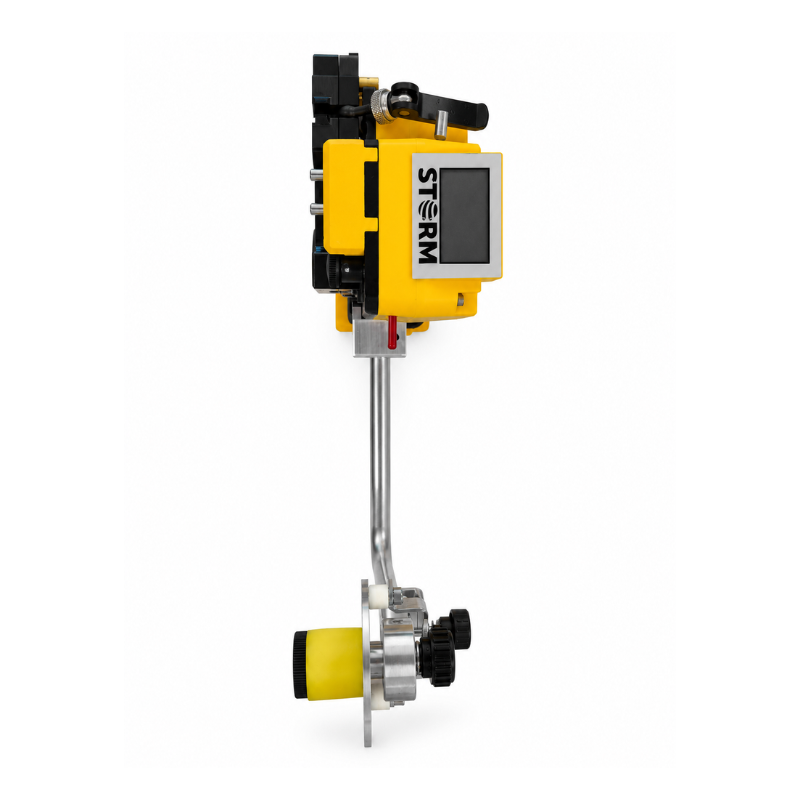

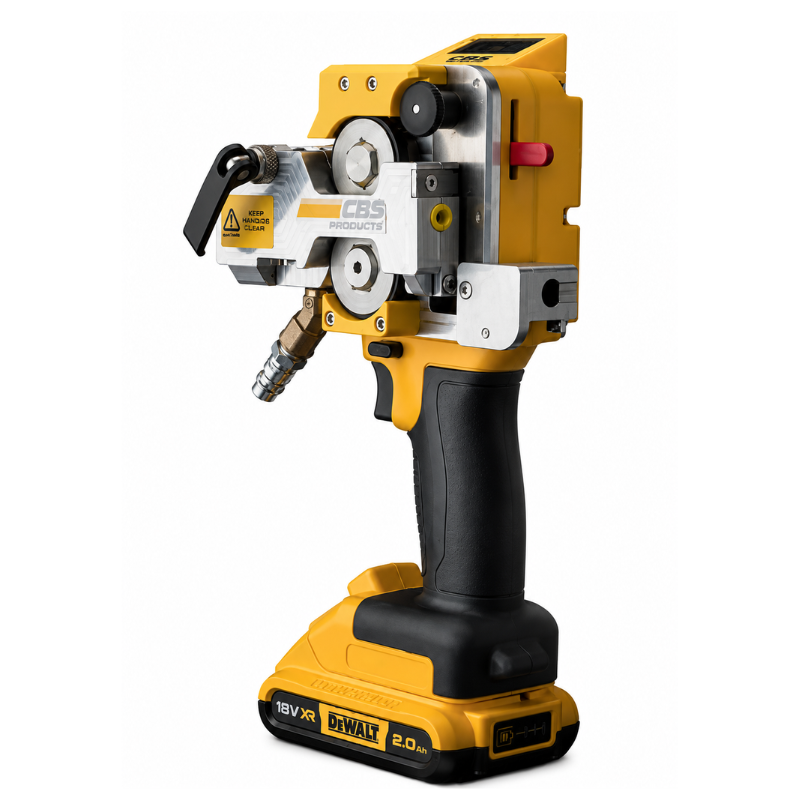

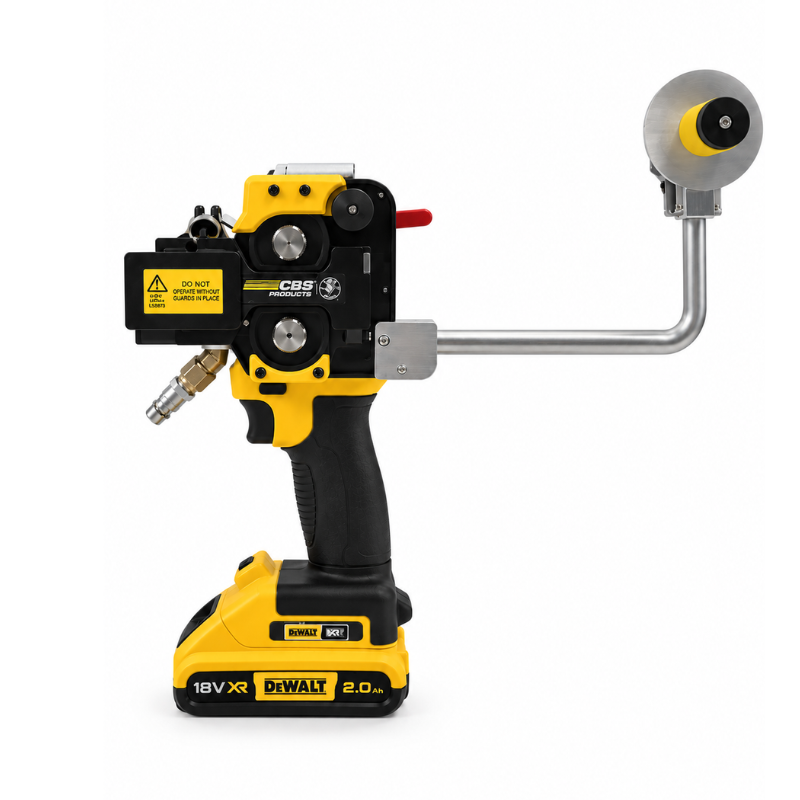

CBS Fibre Blowing Gun – C-1850 Storm
The CBS C-1850 Storm Fibre Blowing Gun is a handheld fibre-blowing machine developed to provide a simple, reliable and efficient solution for installing microfibre. Its compact design incorporates an integrated duct clamp and seal system, helping streamline fibre installation and operation.
Designed for 5mm, 7mm and 8mm subducts, the C-1850 Storm supports fibre up to 3mm in diameter and delivers blowing speeds of up to 100m/min. A maximum air pressure of 15 bar supports demanding fibre-blowing applications.
User-adjustable torque and speed settings provide greater control during installation, while the built-in cruise control function enables smooth, hands-free operation at the selected speed. A bright OLED display provides clear operating information during use.
Powered by an 18V DeWALT® tool battery, the Storm combines cordless operation with a lightweight design. The machine weighs approximately 1.8kg including the battery, helping provide greater portability and ease of handling on site. The datasheet also highlights tool-less maintenance and operation as a key feature.
Key Features:
-
Handheld microfibre blowing machine
-
Suitable for fibre up to 3mm diameter
-
Compatible with 5mm, 7mm and 8mm tubes
-
Blowing speeds up to 100m/min
-
Maximum air pressure of 15 bar
-
Integrated tube clamp and seal
-
Cruise-controlled speed
-
User-settable torque and speed
-
Manual control
-
Bright OLED display
-
Tool-less maintenance and operation
-
Powered by an 18V DeWALT tool battery
-
Lightweight design at approximately 1.8kg including battery
-
Compact design for convenient on-site operation
Technical Specifications:
-
Model: C-1850 Storm
-
Product Type: Handheld Fibre Blowing Machine
-
Fibre Compatibility: Up to 3mm
-
Blowing Speed: Up to 100m/min
-
Compatible Tubes: 5mm, 7mm and 8mm
-
Maximum Air Pressure: 15 bar
-
Automation: Cruise Controlled Speed
-
Control: Manual
-
Electrical Supply: 18V
-
Machine Dimensions: 155mm (L) x 110mm (W) x 290mm (H)
-
Machine Weight: 1.8kg including battery
-
Case Dimensions: 524mm (L) x 428mm (W) x 206mm (H)
-
Machine & Case Weight: 9kg
-
Display: Bright OLED
-
Battery Platform: DeWALT Tool Battery
Applications:
-
Microfibre installation
-
Fibre blowing into compatible subducts
-
Telecommunications network installation
-
Fibre network deployment
-
Fibre installation using 5mm, 7mm and 8mm tubes
-
On-site fibre installation and maintenance
Ordering Information:
-
C-1850: Storm Handheld Fibre Blower Machine including battery and charger
-
C-1850-BU: Storm Handheld Fibre Blower Machine only
-
C-1850-KIT: Storm Handheld Fibre Blower Machine UK Kit
-
C-1850-EU-KIT: Storm Handheld Fibre Blower Machine EU Kit
The specifications, features and ordering options above are taken from the supplied C-1850 Storm product datasheet.
