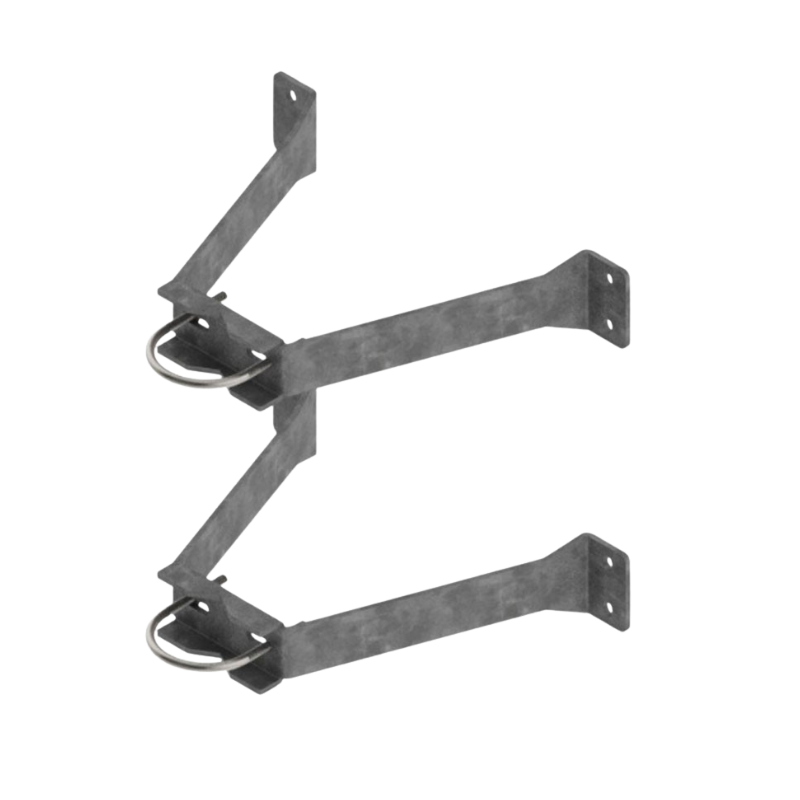

MAFI 3544 Large Wall Mount
The MAFI 3544 Large Wall Mount is a heavy-duty solution designed for installations where greater wall clearance is required for telecoms and wireless equipment. Ideal for antennas, radios, cable assemblies and pole-mounted hardware, this mount provides enhanced spacing from the wall to avoid obstructions, improve alignment, and ensure optimal equipment performance.
Supplied as a complete kit with two robust brackets and all required U-bolts, the MAFI 3544 supports straightforward installation onto brick or concrete walls, or via through-mounting with backing plates for additional strength. It accommodates a wide range of equipment poles with diameters from Ø60mm to Ø114mm, making it suitable for diverse deployment scenarios.
Key Features:
-
Designed for large-clearance wall mounting of equipment poles
-
Provides extended spacing to avoid obstructions and improve alignment
-
Supplied with two brackets and complete U-bolt hardware
-
Suitable for brick or concrete mounting, or through-mount installation
-
Compatible with pole sizes from Ø60mm to Ø114mm
-
Ideal for telecoms, wireless networks, rooftop installations and industrial sites
Technical Specifications:
-
Product Type: Large Clearance Wall Mount
-
Pole Compatibility: Ø60mm – Ø114mm
-
Mounting Surface: Brick, concrete, or through-mount with backing plates
-
Kit Contents: 2 × wall brackets + U-bolts
-
Applications: Antennas, radio units, pole-mounted hardware, telecoms equipment
