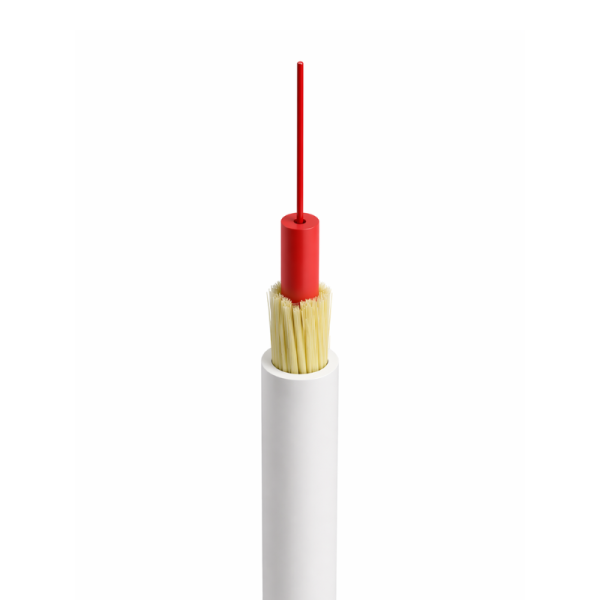

Internal Drop Cable 1F 2.8mm – 250m
The Internal Drop Cable 1F 2.8mm – 250m is a compact and flexible fibre solution designed for efficient, discreet FTTH deployments within residential and MDU environments.
Engineered with a reduced 2.8mm diameter, this cable allows for clean routing along skirting boards, door frames and ceilings, making it ideal for visible indoor installations where aesthetics are important. The white LSZH-FR outer sheath (RAL 9010) ensures minimal visual impact while maintaining compliance with European fire safety standards.
Built using G.657A2 bend-optimised singlemode fibre, the cable supports tight bend radii with minimal signal loss, enabling installation in confined spaces and around tight corners. Its flexible construction allows for both pulling and adhesive-based installation methods, improving speed and ease of deployment.
Supplied on a 250m coil, this cable is ideal for medium-scale installations, providing a balance between manageability and coverage on-site.
Key Features:
-
1 fibre (1F) configuration for FTTH drop applications
-
2.8mm compact diameter for discreet indoor routing
-
Supplied on 250m coil for efficient handling
-
White LSZH-FR sheath (RAL 9010) for clean finish
-
G.657A2 bend-insensitive fibre for tight routing
-
Flexible design for pulling or adhesive installation
-
Compatible with field-mount connectors (Ø3.0mm)
-
Ideal for MDU and SDU indoor deployments
Technical Specifications:
-
Product Type: Indoor fibre drop cable
-
Fibre Count: 1F
-
Fibre Type: ITU-T G.657A2 singlemode
-
Outer Diameter: 2.8 mm
-
Sheath Material: LSZH-FR (Low Smoke Zero Halogen)
-
Colour: White (RAL 9010)
-
Buffer: 900µm micro-bundle (LSZH, red)
-
Weight: ~13 kg/km
-
Fire Rating: CPR Cca-s1,d0,a1 compliant
-
Length: 250 metres
Mechanical & Environmental Performance:
Applications:
-
Indoor FTTH installations
-
MDU and SDU fibre deployments
-
Discreet in-home cable routing
-
ONT connection and subscriber drops
-
Medium-scale residential rollouts
