Internal Drop Cable 1F 2.8mm – 1000m

Internal Drop Cable 1F 2.8mm – 1000m

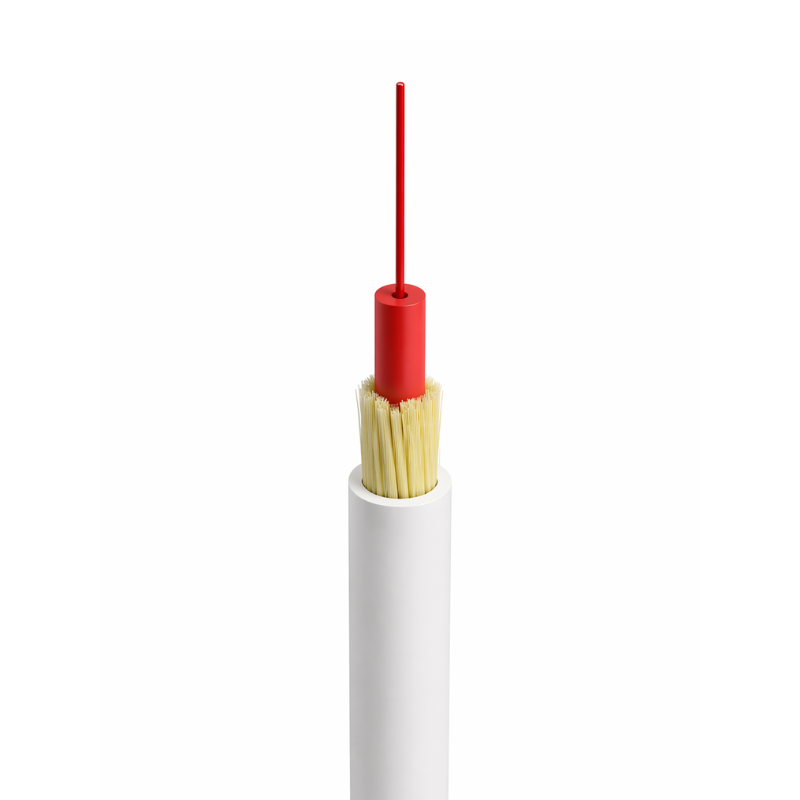

The Internal Drop Cable 1F 2.8mm – 1000m is a high-efficiency fibre solution designed for large-scale indoor FTTH deployments across residential and MDU environments.

Engineered with a reduced 2.8mm diameter, this cable enables clean and discreet routing along skirting boards, door frames and ceilings, making it ideal for visible in-home installations where aesthetics are critical. The white LSZH-FR outer sheath (RAL 9010) ensures minimal visual impact while maintaining full compliance with European fire safety standards.

Constructed using G.657A2 bend-optimised singlemode fibre, the cable supports tight bend radii with minimal signal loss, allowing installation in confined spaces and around tight corners. Its flexible and lightweight design supports both pulling and adhesive-based installation methods, improving installation speed and efficiency.

Supplied on a 1000m drum, this cable is ideal for high-volume deployments, reducing changeovers on-site and ensuring consistent performance across large installations.

Key Features:

• 1 fibre (1F) configuration for FTTH drop applications

• 2.8mm compact diameter for discreet indoor routing

• Supplied on 1000m drum for large-scale installations

• White LSZH-FR sheath (RAL 9010) for clean finish

• G.657A2 bend-insensitive fibre for tight routing

• Flexible design for pulling or adhesive installation

• Compatible with field-mount connectors (Ø3.0mm)

• Ideal for MDU and SDU indoor deployments

Technical Specifications:

• Product Type: Indoor fibre drop cable

• Fibre Count: 1F

• Fibre Type: ITU-T G.657A2 singlemode

• Outer Diameter: 2.8 mm

• Sheath Material: LSZH-FR (Low Smoke Zero Halogen)

• Colour: White (RAL 9010)

• Buffer: 900µm micro-bundle (LSZH, red)

• Weight: ~13 kg/km

• Fire Rating: CPR Cca-s1,d0,a1 compliant

• Length: 1000 metres

Mechanical & Environmental Performance:

• Tensile Strength: 100N

• Minimum Bend Radius:

  • Static: 12.5 mm

  • Kink: 5 mm

• Crush Resistance: Up to 10 daN/cm

• Temperature Range:

  • Operation: -5°C to +60°C

  • Extended: -40°C to +70°C

Applications:

• Large-scale FTTH indoor deployments

• MDU and SDU fibre installations

• Discreet in-home cable routing

• ONT connection and subscriber drops

• High-volume residential rollouts
