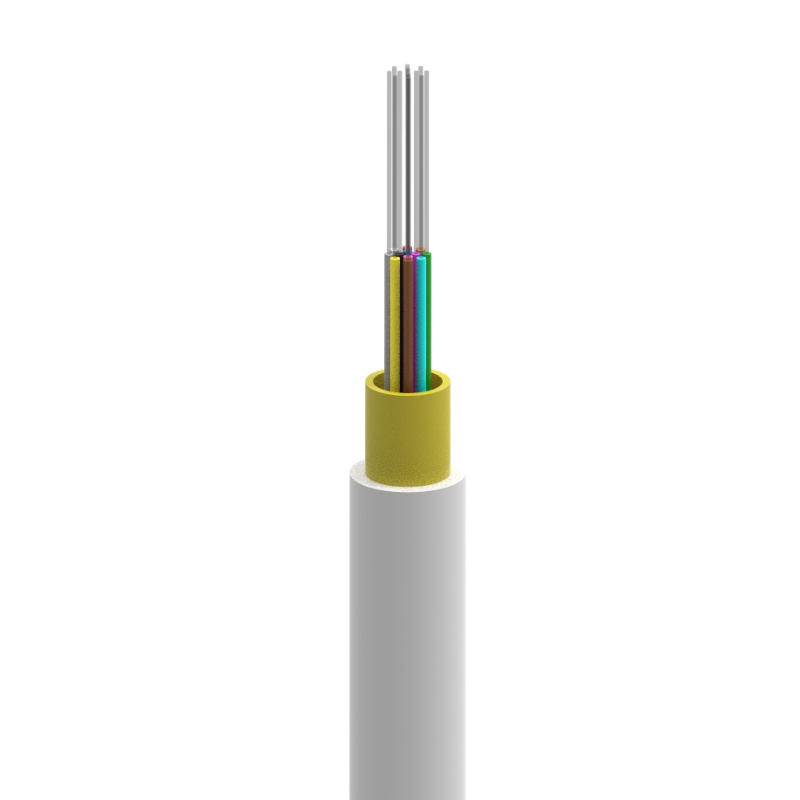

Discreet Internal Cable 12F G657B3 2mm – Cca White – Bare – 200m
The MDU Discreet Internal Cable 12F G657B3 2mm – Cca White – Bare – 200m is a high-performance fibre cable designed for discreet internal routing within multi-dwelling units (MDUs). Supplied on a 200 metre reel, it is ideal for large-scale installations requiring continuous cable runs across corridors, risers and internal building pathways.
Manufactured using G.657B3 bend-insensitive fibre, this cable provides excellent flexibility with minimal bending loss, making it suitable for tight routing environments and confined spaces. Its compact 2–3mm profile ensures a low-visibility installation while maintaining high optical performance.
The cable features a FR-LSZH (Flame Retardant Low Smoke Zero Halogen) outer sheath and water-blocking aramid yarn reinforcement, delivering durability, fire safety compliance and suitability for both indoor and limited external routing.
Supplied as a bare cable (unterminated), it offers maximum flexibility for on-site termination, making it ideal for bespoke network builds and high-volume deployments.
Key Features:
-
12 fibre (12F) G.657B3 bend-insensitive cable
-
200 metre reel for extended installations
-
Slim 2–3mm diameter for discreet routing
-
Bare cable for custom termination
-
FR-LSZH outer sheath for fire-safe installations
-
Aramid yarn reinforcement for strength and durability
-
Suitable for indoor and limited outdoor use
-
CPR Cca compliant
Technical Specifications:
-
Product Type: Internal fibre cable
-
Fibre Type: G.657B3 singlemode
-
Fibre Count: 12F
-
Length: 200 m
-
Cable Diameter: Approx. 3.0 mm ±0.1 mm
-
Outer Sheath: FR-LSZH (Low Smoke Zero Halogen)
-
Colour: White
-
Strength Member: Aramid yarns (water-blocking)
-
CPR Rating: Cca s1b d1 a2
-
Installation Temperature: -10°C to +65°C
-
Operating Temperature: -40°C to +70°C
-
Minimum Bend Radius: 15D (static), 30D (dynamic)
Applications:
-
MDU corridor and riser installations
-
Discreet internal fibre routing
-
Large-scale FTTH and FTTx deployments
-
Building entry and distribution networks
-
Custom fibre terminations and network builds
