Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC or SC/APC – Bare End Cca White - Multiple Lengths

MDU Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC or SC/APC – Bare End Cca White – Multiple Lengths

The MDU Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC or SC/APC – Bare End Cca White – Multiple Lengths is a high-performance, pre-terminated solution designed for fast, discreet and scalable fibre deployment within multi-dwelling environments.

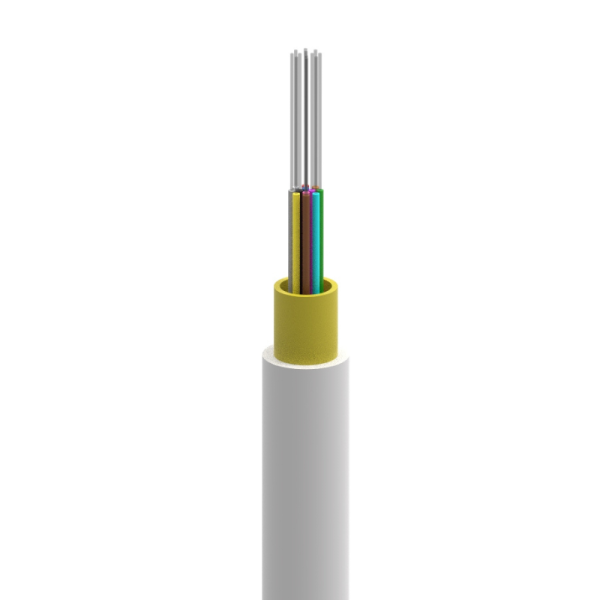

Built using a compact 2.0mm single-sheathed corridor cable, this assembly enables clean routing along walls, ceilings and corridors while maintaining a professional finish. The white FR-LSZH outer sheath ensures compliance with fire safety standards and blends seamlessly into internal environments.

Featuring 12 bend-insensitive G.657B3 fibres, the cable supports tight bend radii with minimal attenuation, making it ideal for complex routing paths and confined installation spaces. The assembly is available with LC/APC or SC/APC connector options, with a bare end on the opposite side for flexible termination on-site.

Designed for both indoor and outdoor applications, the cable incorporates aramid yarn strength members for added durability and reliability during installation.

Key Features:

• 12 fibre (12F) configuration for distribution applications

• Available with LC/APC or SC/APC connectors

• Bare end for flexible on-site termination

• Compact 2.0mm diameter for discreet installation

• White sheath for clean, aesthetic routing

• G.657B3 bend-insensitive fibre for tight bends

• FR-LSZH outer sheath for enhanced fire safety

• Water-blocking aramid yarn strength members

• Available in multiple lengths for flexible deployment

Technical Specifications:

• Product Type: Pre-terminated fibre corridor cable assembly

• Fibre Count: 12F

• Fibre Type: ITU-T G.657B3 singlemode

• Outer Diameter: 2.0 ± 0.1 mm

• Sheath Material: FR-LSZH (Low Smoke Zero Halogen)

• Colour: White

• Strength Member: Aramid yarns

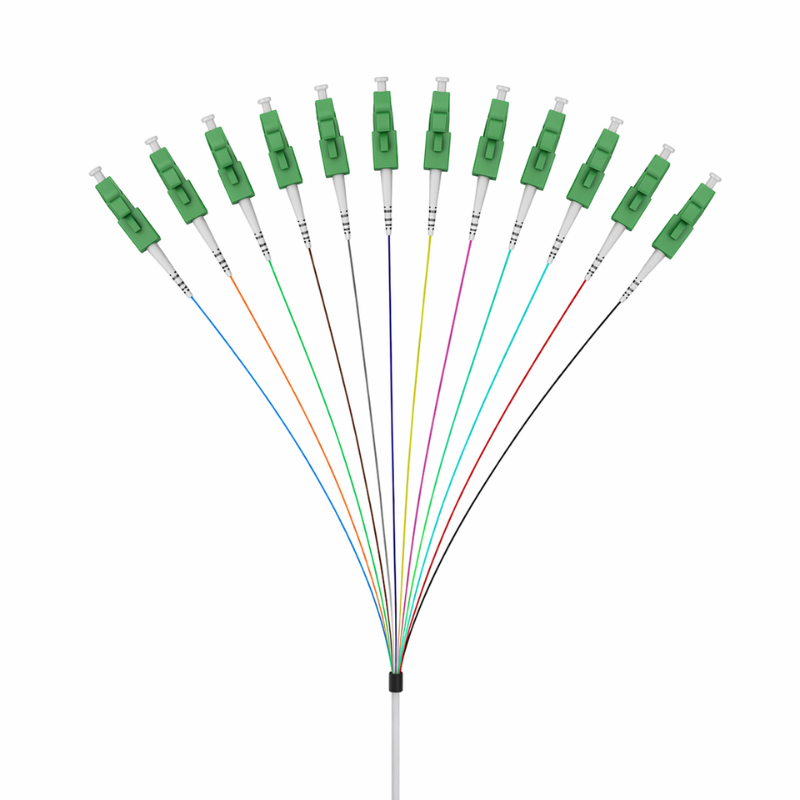

Connectorisation:

• Connector Options: LC/APC or SC/APC

• Fan-out Length: ~20 cm ± 2 cm

• Tube Diameter: 0.9 mm

• Insertion Loss: ≤ 0.30 dB @ 1310/1550 nm

• Return Loss: ≥ 65 dB (APC)

Mechanical & Environmental Performance:

• Tensile Strength: 35N (long-term) / 75N (short-term)

• Minimum Bend Radius:

  • Dynamic: 30D

  • Static: 15D

• Crush Resistance: 80N/10cm (long-term), 150N/10cm (short-term)

• Installation Temperature: -10°C to +65°C

• Operating Temperature: -40°C to +70°C

• Fire Rating: CPR B2ca compliant

Applications:

• MDU corridor and riser installations

• Discreet internal fibre routing

• FTTH and FTTx deployments

• Pre-terminated fibre distribution

• Residential and commercial fibre infrastructure
