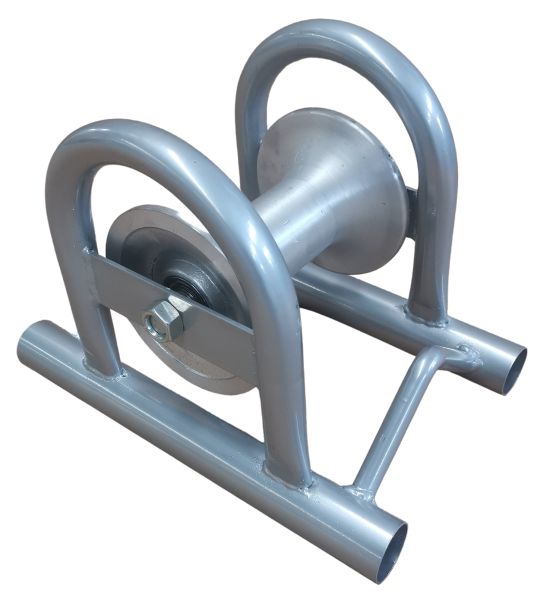

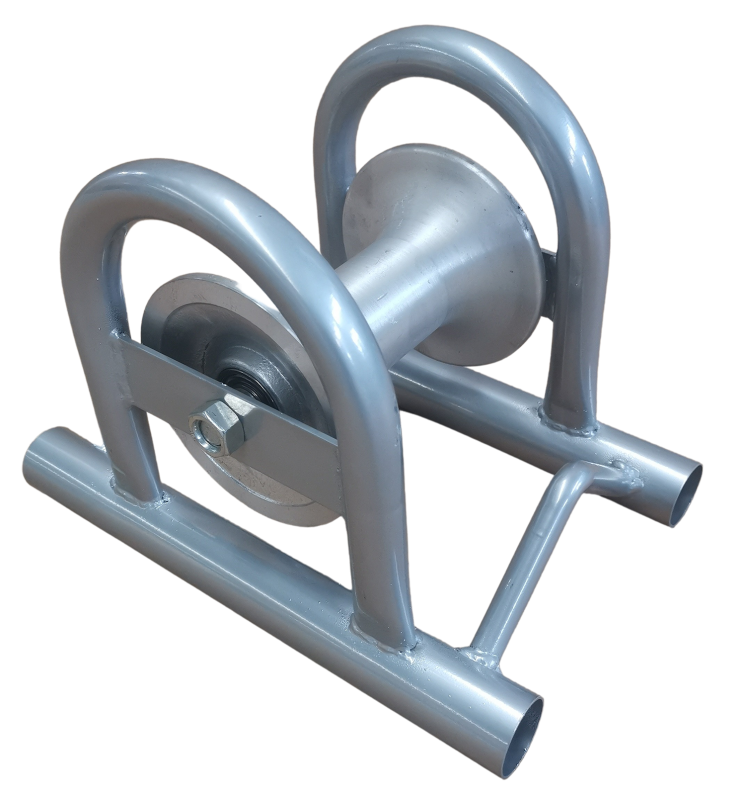

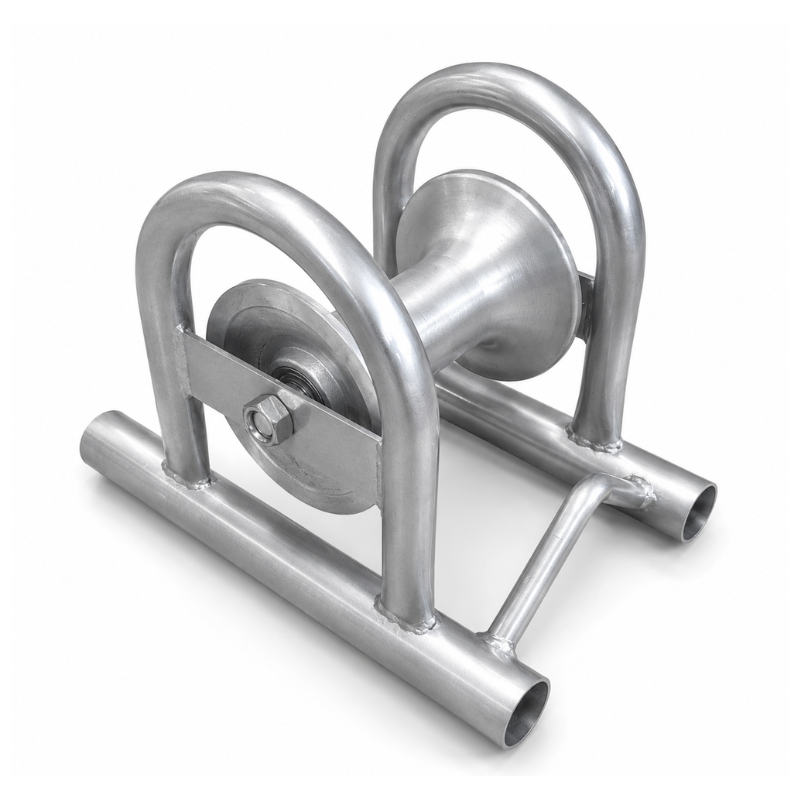

Straight Line Bridge Cable Roller
The Straight Line Bridge Cable Roller is engineered for guiding cables over previously installed routes during pull-in operations. With a robust tubular steel frame and a 165mm diameter steel roller, this heavy-duty tool ensures smooth and controlled cable handling in straight line sections of a route.
Ideal for use in power, telecoms, and utility installations, the integrated hoops allow the roller to be mounted over already-laid cables, reducing damage and ensuring precision during installation.
Key Features:
-
Heavy duty tubular steel frame for maximum durability
-
165mm diameter steel roller provides smooth cable movement
-
Hoops included for mounting over previously laid cables
-
Designed for straight line cable routes
-
Ideal for use on cable installation projects in challenging environments
-
Portable and easy to position on site
Technical Specifications:
-
Roller Diameter: 165mm
-
Frame Type: Tubular steel
-
Mounting: Fitted with hoops for cable bridging
-
Dimensions (L x W x H): 320 x 230 x 250mm
-
Weight: 4.1kg
-
Application: Cable laying, utility and telecom installations
