Discreet Corridor Cable Assembly 12F G657B3 2mm SC/APC – Bare End Cca White – 25m
The Discreet Corridor Cable Assembly 12F G657B3 2mm SC/APC – Bare End Cca White – 25m is a compact, pre-terminated fibre solution designed for fast, clean and efficient deployment within multi-dwelling environments.

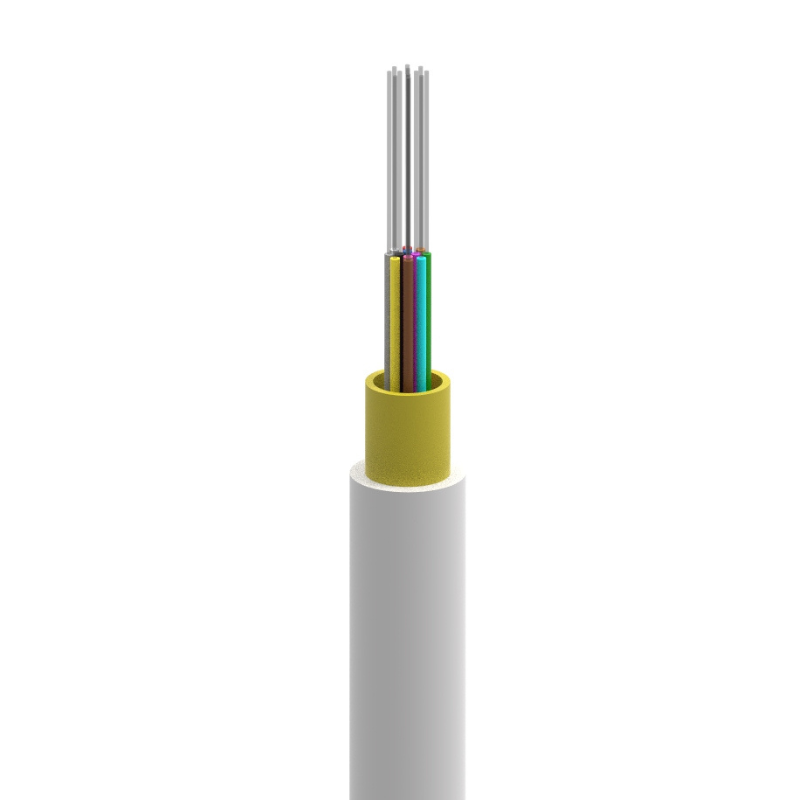

Constructed using a 2.0mm single-sheathed corridor cable, this assembly enables discreet routing along walls, ceilings and corridors, making it ideal for visible internal installations. The white FR-LSZH outer sheath ensures compliance with fire safety standards while delivering a clean, low-profile finish.
Featuring 12 bend-insensitive G.657B3 fibres, the cable supports tight bend radii with minimal attenuation, making it ideal for complex routing paths and confined installation spaces. One end is factory-terminated with an SC/APC connector, while the opposite end is left bare for flexible on-site termination.
Key Features:
-

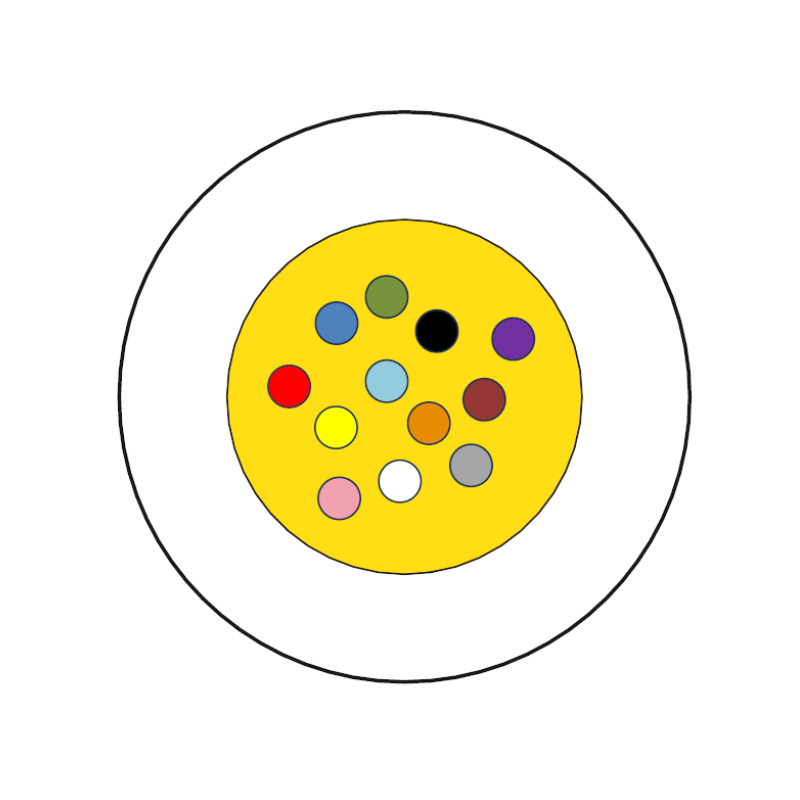

12 fibre (12F) configuration for distribution applications
-
SC/APC pre-terminated connector for quick installation
-
Bare end for flexible on-site termination
-
Compact 2.0mm diameter for discreet routing
-
White sheath for clean, aesthetic installations
-
G.657B3 bend-insensitive fibre for tight routing
-
FR-LSZH outer sheath for enhanced fire safety
-
Water-blocking aramid yarn strength members
Technical Specifications:
-
Product Type: Pre-terminated fibre corridor cable assembly
-
Fibre Count: 12F
-
Fibre Type: ITU-T G.657B3 singlemode
-
Outer Diameter: 2.0 ± 0.1 mm
-
Sheath Material: FR-LSZH (Low Smoke Zero Halogen)
-
Colour: White
-
Strength Member: Aramid yarns
-
Length: 25 metres
Connectorisation:
-
Connector Type: SC/APC
-
Fan-out Length: ~20 cm ± 2 cm
-
Tube Diameter: 0.9 mm
-
Insertion Loss: ≤ 0.30 dB @ 1310/1550 nm
-
Return Loss: ≥ 65 dB (APC)
Applications:
-
MDU corridor and riser installations
-
Discreet internal fibre routing
-
FTTH and FTTx deployments
-
Pre-terminated fibre distribution
-
Residential and commercial fibre infrastructure
