Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC – Bare End Cca White - 25m

Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC – Bare End Cca White – 25m

The MDU Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC – Bare End Cca White – 25m is a compact, pre-terminated fibre solution designed for fast, clean and efficient deployment within multi-dwelling environments.

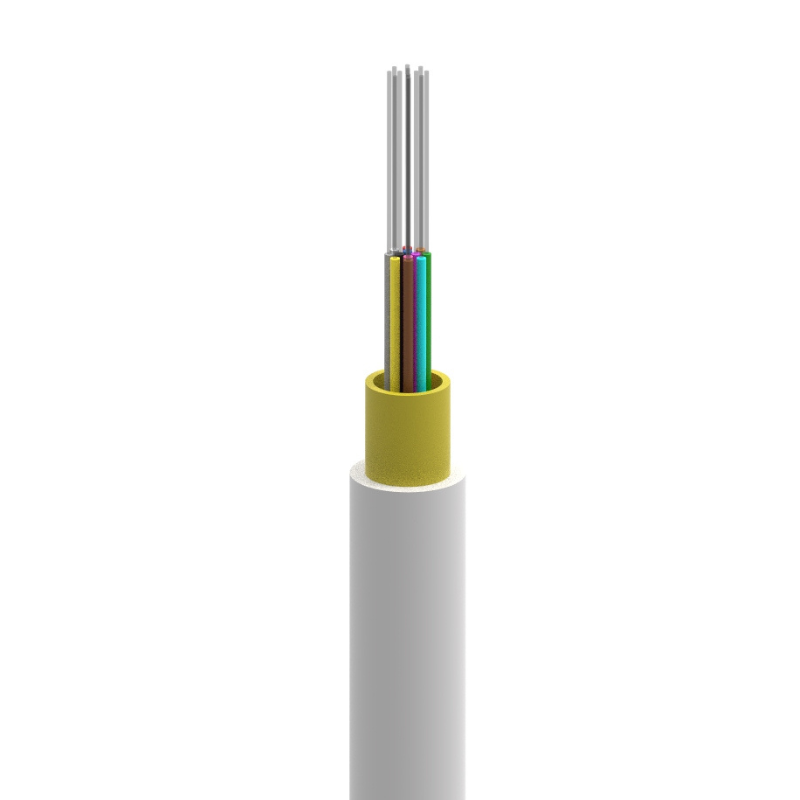

Built using a 2.0mm single-sheathed corridor cable, this assembly enables discreet routing along walls, ceilings and corridors, making it ideal for visible internal installations. The white FR-LSZH outer sheath ensures compliance with fire safety standards while maintaining a professional, low-visibility finish.

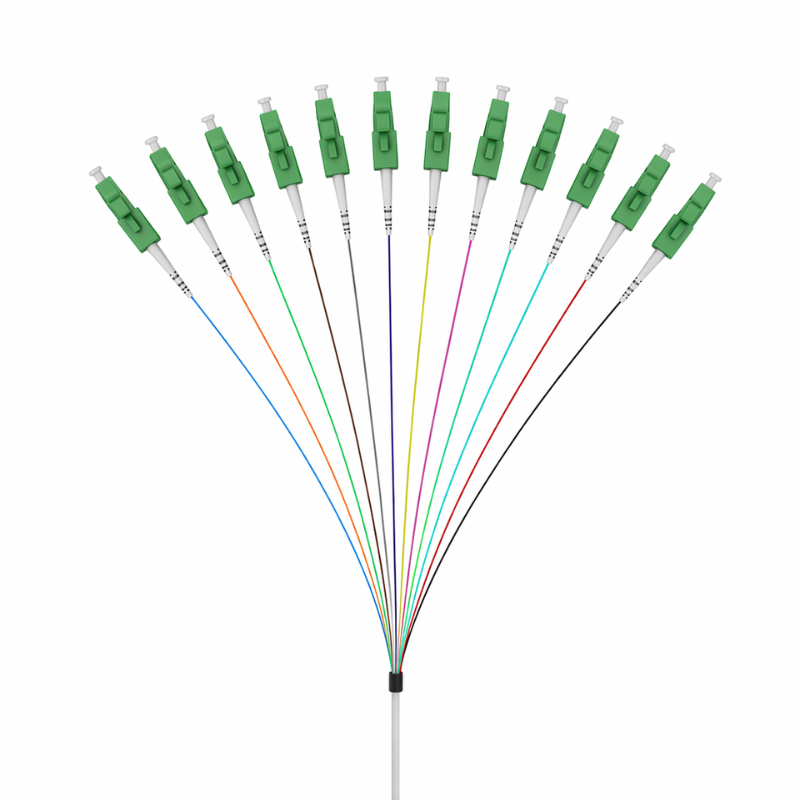

Featuring 12 bend-insensitive G.657B3 fibres, the cable supports tight bend radii with minimal signal loss, making it well suited to complex routing paths and confined installation spaces. One end is factory-terminated with an LC/APC connector, while the opposite end is left bare for flexible on-site termination.

Key Features:

• 12 fibre (12F) configuration for distribution applications

• LC/APC pre-terminated connector for quick installation

• Bare end for flexible on-site termination

• Compact 2.0mm diameter for discreet routing

• White sheath for clean, aesthetic installations

• G.657B3 bend-insensitive fibre for tight bends

• FR-LSZH outer sheath for enhanced fire safety

• Water-blocking aramid yarn strength members

Technical Specifications:

• Product Type: Pre-terminated fibre corridor cable assembly

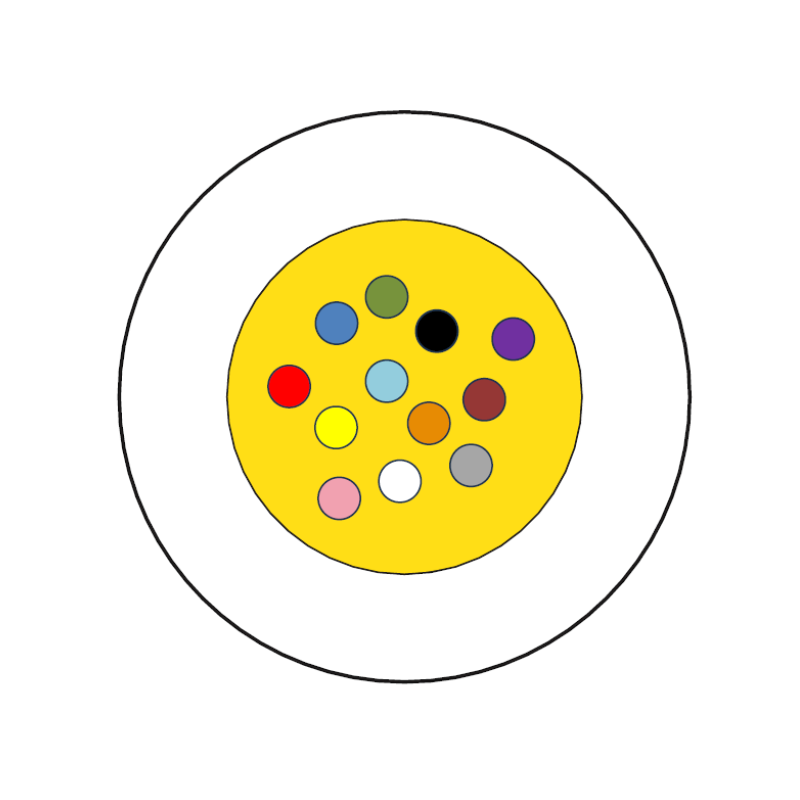

• Fibre Count: 12F

• Fibre Type: ITU-T G.657B3 singlemode

• Outer Diameter: 2.0 ± 0.1 mm

• Sheath Material: FR-LSZH (Low Smoke Zero Halogen)

• Colour: White

• Strength Member: Aramid yarns

• Length: 25 metres

Connectorisation:

• Connector Type: LC/APC

• Fan-out Length: ~20 cm ± 2 cm

• Tube Diameter: 0.9 mm

• Insertion Loss: ≤ 0.30 dB @ 1310/1550 nm

• Return Loss: ≥ 65 dB (APC)

Mechanical & Environmental Performance:

• Tensile Strength: 35N (long-term) / 75N (short-term)

• Minimum Bend Radius:

  • Dynamic: 30D

  • Static: 15D

• Crush Resistance: 80N/10cm (long-term), 150N/10cm (short-term)

• Installation Temperature: -10°C to +65°C

• Operating Temperature: -40°C to +70°C

• Fire Rating: CPR B2ca compliant

Applications:

• MDU corridor and riser installations

• Discreet internal fibre routing

• FTTH and FTTx deployments

• Pre-terminated fibre distribution

• Residential and commercial fibre infrastructure
