Cable Pulling Winch (Across Pit Frame)

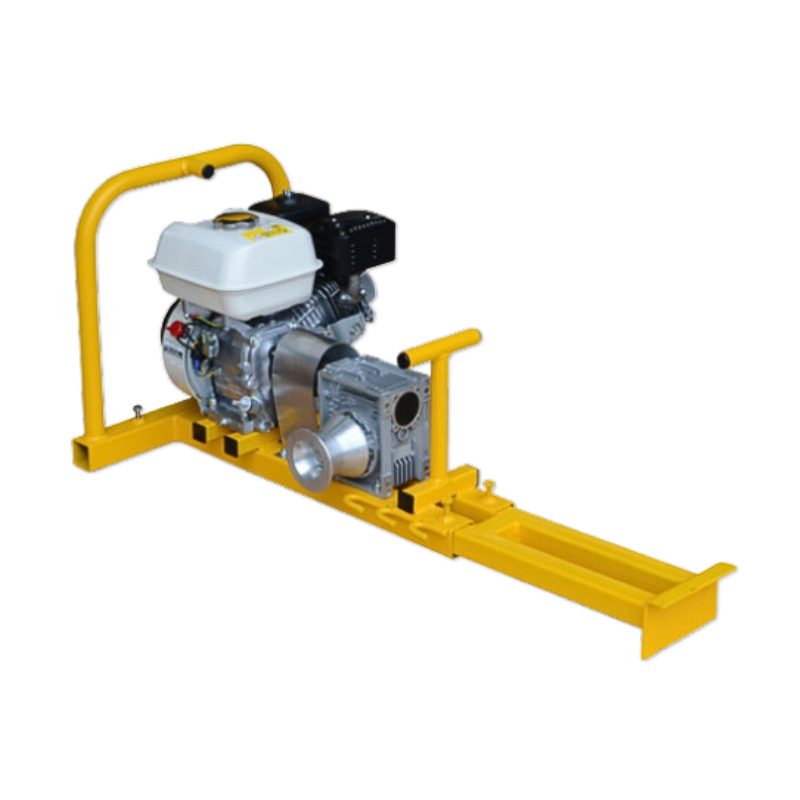

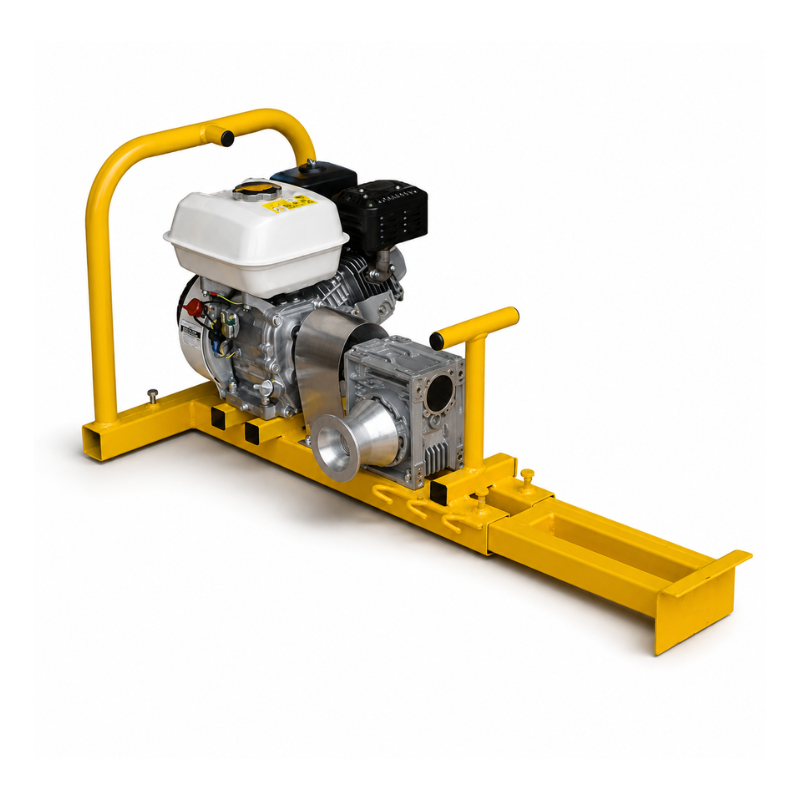

The Cable Pulling Winch (Across Pit Frame) is a lightweight and compact capstan winch designed for simple cable pulling and cable recovery operations over manholes and access pits.
Powered by a dependable 5HP Honda engine through a right-angle gearbox, the winch delivers a pulling capacity of up to 1000kg, making it ideal for telecom, utility and infrastructure cable installation projects. The system operates using a 100mm aluminium Diablo capstan with recommended 12mm double braided polyester rope, providing smooth and controlled pulling performance at a rope speed of 18 metres per minute.
Manufactured with a durable mild steel baseframe and finished in high-visibility yellow paint, the unit is engineered for demanding field environments while remaining portable and easy to deploy. Safety is enhanced with a top-mounted emergency stop switch, while the compact dimensions and lightweight 26kg design simplify transport and operation across multiple job sites.
Key Features:
-
Lightweight capstan winch for across-pit cable pulling
-
Reliable 5HP Honda petrol engine
-
Pulling capacity up to 1000kg
-
Rope speed of 18 metres per minute
-
Designed for cable recovery and installation operations
-
Durable mild steel baseframe with yellow painted finish
-
100mm aluminium Diablo capstan
-
Compatible with 12mm double braided polyester rope
-
Integrated top-mounted emergency stop switch
-
Compact and portable design for field deployment
Winch Specification:
-
Pulling Capacity: 1000kg
-
Running Time: Approx. 1.2 hours per tank
-
Rope Speed: 18 metres p/m
-
Baseframe Material: Mild Steel
-
Baseframe Finish: Durable Yellow Painted
-
Capstan Type: 100mm Diameter Diablo (Single)
-
Capstan Material: Aluminium
-
Flexible Couplings: Nitrile Rubber
-
Safety Feature: Top-mounted Emergency Stop Switch
-
Anchor Points: Front brace through holes
-
Rope Length: No maximum
-
Recommended Rope Diameter: 12mm Double Braided Polyester
-
Rope Guides: Steel
-
Dimensions: 520mm × 370mm × 370mm
-
Dry Weight: 26kg
Engine Specification:
-
Engine Model: Honda 5HP
-
Engine Type: Air Cooled, 4 Stroke
-
Fuel Type: Unleaded Petrol
-
Fuel Tank Capacity: 1.2 Litres
-
Ignition System: Transitioned
-
Starting Method: Recoil Starter
-
Choke: Manual Choke
-
Speed Control: Throttle Lever
Gearbox Specification:
-
Gearbox Type: Worm and Wheel
-
Material: Aluminium Alloy
-
Finish: Powder Coated (Epoxy-Polyester)
Applications:
-
Cable pulling and recovery operations
-
Telecom and fibre network installations
-
Utility infrastructure projects
-
Manhole and access pit cable works
-
Civil engineering and maintenance operations
