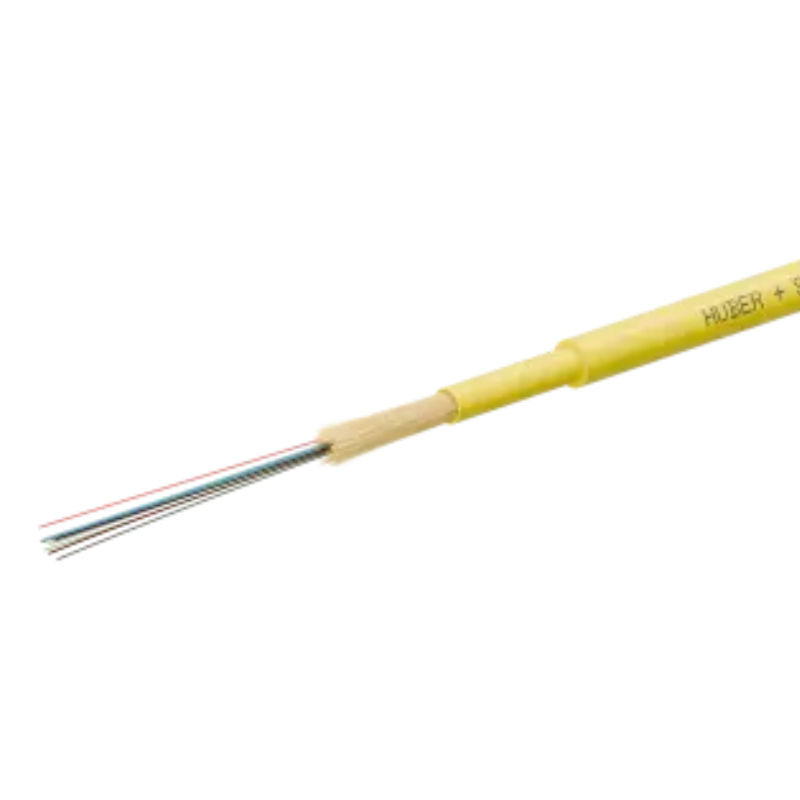

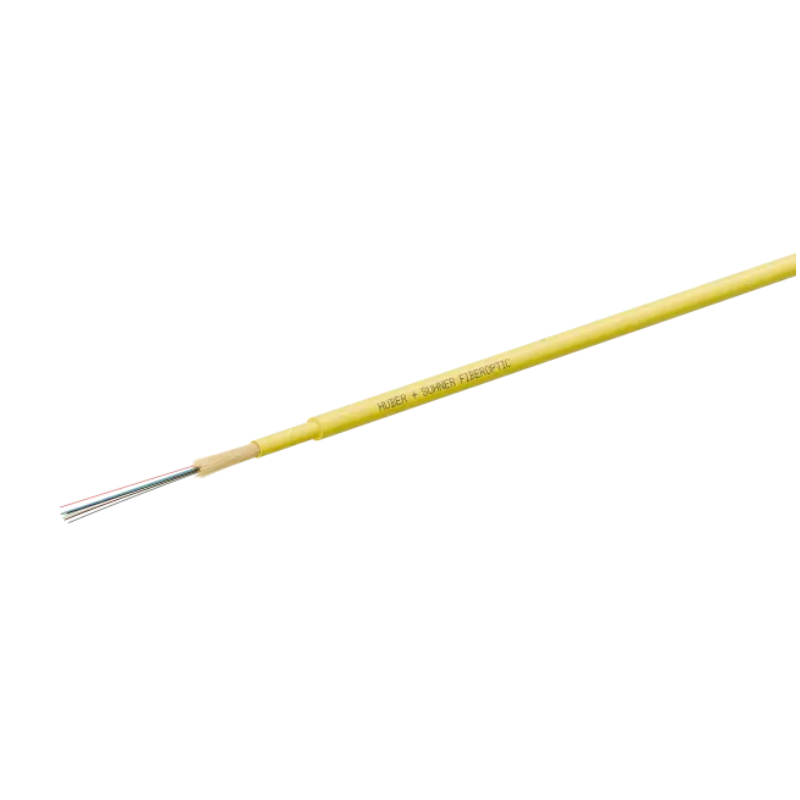

HUBER+SUHNER 24F OptiPack DJ LSFH Ø4.9mm B2ca Cable – 1m Yellow Jacket
The HUBER+SUHNER 24F OptiPack DJ LSFH Ø4.9mm B2ca Cable – 1m Yellow Jacket is a high-performance indoor fibre optic cable designed for structured cabling, telecommunications, data centre and enterprise network applications.
Constructed with up to 24 colour-coded fibres, this metal-free cable features aramide yarn strength members and a Low Smoke Free Halogen (LSFH) outer jacket, delivering excellent flexibility, safety and handling characteristics for indoor installations. The cable's innovative design allows the tube to be stripped in one piece up to 1 metre, helping to simplify preparation and reduce installation time.
Certified to CPR Class B2ca-s1a,d0,a1, the cable offers enhanced fire performance and low smoke emissions, making it suitable for installations where fire safety and regulatory compliance are critical. The compact 4.9mm outer diameter allows efficient routing through containment systems while maintaining excellent mechanical protection and tight bending performance. Supplied with a yellow outer jacket, this version is ideal for singlemode fibre network installations.
Key Features:
-
24-fibre indoor fibre optic cable
-
Compact Ø4.9mm outer diameter
-
CPR B2ca-s1a,d0,a1 fire performance classification
-
Low Smoke Free Halogen (LSFH) outer jacket
-
Metal-free cable construction
-
Aramide yarn strength members
-
Tube can be stripped up to 1 metre in one piece
-
Tight bending radius design
-
Low smoke and self-extinguishing properties
-
Ideal for telecom, enterprise and data centre installations
-
Yellow outer jacket for singlemode fibre identification
Technical Specifications:
Cable Construction
-
Fibre Count: 24 Fibres
-
Fibre Type: Colour coded
-
Strain Relief: Aramide yarn
-
Inner Jacket Diameter: 3mm
-
Outer Jacket Material: LSFH
-
Outer Diameter: 4.9mm
-
Swellability: Non-swellable
-
Jacket Colour: Yellow
Environmental Performance
-
CPR Classification: B2ca-s1a,d0,a1
-
Installation Temperature: -10°C to +50°C
-
Operating Temperature: -25°C to +70°C
-
Storage Temperature: -25°C to +70°C
Mechanical Performance
-
Weight: Approx. 32g/m
-
Tensile Strength (Installation): 500N
-
Tensile Strength (In Service): 200N
-
Minimum Bending Radius: 15mm
-
Crush Resistance (Installation): 2000N/dm
-
Crush Resistance (In Service): 100N/dm
-
Impact Resistance: 0.5J (50 cycles)
-
Kink Resistance Radius: 10mm
Applications:
-
Data centre fibre cabling
-
Enterprise network infrastructure
-
Internal telecom installations
-
Building backbone cabling
-
Structured cabling systems
-
High-density fibre deployments
-
Campus network environments
