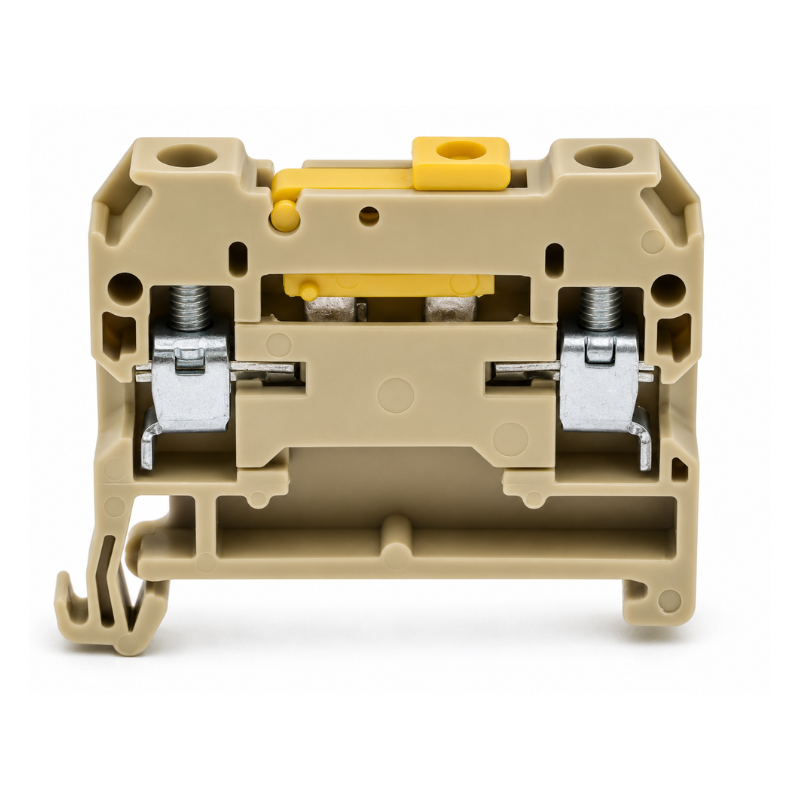

Weidmüller SAKR/35 Terminal Block – SAK Series – Beige – 4mm² – Test-Disconnect – 10A – 400V
The Weidmüller SAKR/35 Terminal Block is a professional DIN rail-mounted test-disconnect terminal block designed to provide secure electrical connections while allowing safe circuit isolation for testing, maintenance and commissioning.
Part of the trusted Weidmüller SAK Series, the SAKR/35 features a reliable screw-clamp connection system capable of accepting conductor sizes up to 4mm² (26AWG–12AWG). The integrated test-disconnect function enables circuits to be safely isolated, allowing engineers to verify the absence of stored voltage before carrying out maintenance or repairs.
Rated at 400V and 10A, the terminal block provides dependable performance across a wide range of industrial, building services and telecommunications applications. Its compact design maximises DIN rail space while the distinctive beige and yellow housing provides quick visual identification of disconnect terminals within control panels.
Manufactured from durable PA66 insulating material, the SAKR/35 offers excellent mechanical strength and electrical insulation. With an impulse withstand voltage of 6kV, it provides enhanced protection against transient voltage surges, making it ideal for professional control and distribution systems.
Key Features:
-
Genuine Weidmüller SAK Series terminal block
-
Test-disconnect functionality for safe maintenance
-
DIN rail mounting
-
Screw-clamp termination
-
Supports cable sizes up to 4mm²
-
Suitable for conductor sizes from 26AWG to 12AWG
-
Rated for 400V and 10A
-
6kV impulse withstand voltage
-
Durable PA66 insulated housing
-
Compact design for efficient panel layouts
-
Beige and yellow housing for easy identification
-
CE, CSA and EAC approved
Technical Specifications:
-
Brand: Weidmüller
-
Model: SAKR/35
-
Series: SAK
-
Product Type: DIN Rail Test-Disconnect Terminal Block
-
Number of Positions: 2
-
Number of Levels: 1
-
Colour: Beige / Yellow
-
Rated Voltage: 400V
-
Rated Current: 10A
-
Maximum Cable Size: 4mm²
-
Conductor Size: 26AWG–12AWG
-
Termination Type: Screw Clamp
-
Mounting Type: DIN Rail
-
Impulse Withstand Voltage: 6kV
-
Body Material: PA66
-
Dimensions:
-
Height: 42mm
-
Width: 6.5mm
-
Depth: 40.5mm
-
Operating Temperature: -25°C to +55°C
-
Hazardous Area Certification: No
-
Approvals: CE, CSA, EAC
Applications:
-
Industrial automation
-
Control panels
-
Electrical distribution systems
-
HVAC systems
-
Telecommunications infrastructure
-
Machine building
-
PLC control systems
-
Test and measurement circuits
-
Utility infrastructure
-
Electrical maintenance and commissioning
