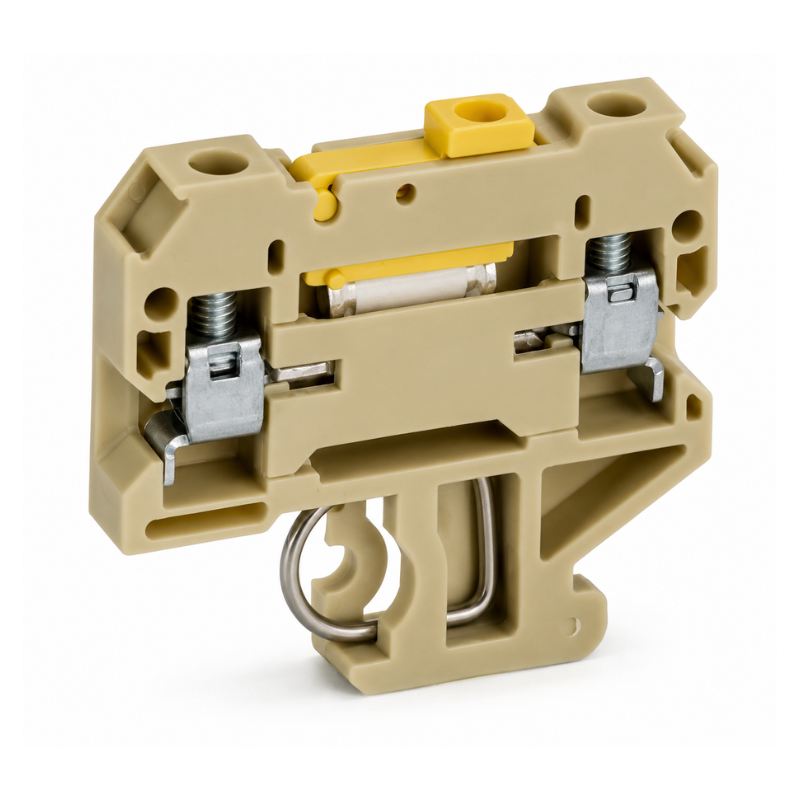

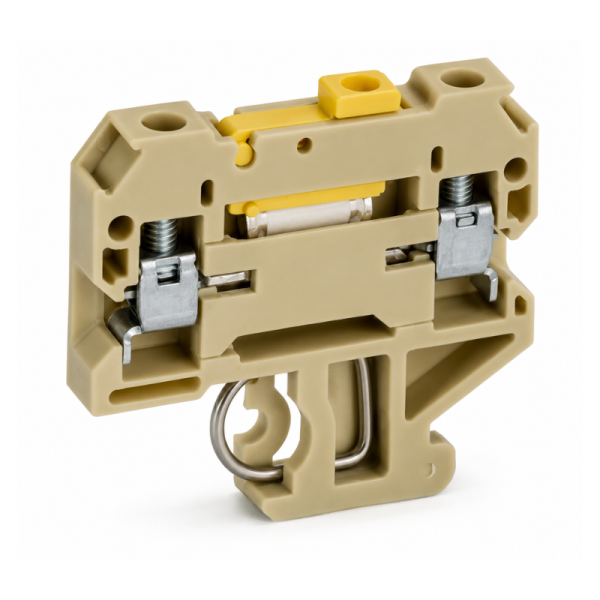

Weidmüller AKR Disconnect Terminal Block

The Weidmüller AKR Disconnect Terminal Block is a high-quality test disconnect terminal block designed to provide secure electrical connections while enabling safe isolation, testing and maintenance within industrial electrical systems.

Part of the trusted Weidmüller SAKR Series, the AKR terminal block is engineered for professional applications including automation systems, control panels, switchgear and telecommunications infrastructure. Featuring a screw-clamp termination system, it accepts conductor sizes from 26AWG to 12AWG (up to 4mm²), providing reliable and secure connections for a wide range of control and signal circuits.

Rated for 400V and 10A, the AKR disconnect terminal block allows safe circuit isolation during commissioning, fault finding and maintenance without disturbing adjacent wiring. Manufactured for dependable operation in demanding environments, it offers a wide operating temperature range of -50°C to +100°C and complies with IEC 60947-7-1 for assured performance and safety.

Its distinctive beige and yellow housing allows easy identification within electrical installations, making it an ideal solution for professional panel builders and maintenance engineers.

Key Features:

• Genuine Weidmüller disconnect terminal block

• Part of the SAKR Series

• Test disconnect functionality for safe circuit isolation

• Screw-clamp termination

• Accepts conductors from 26AWG to 12AWG

• Supports cable sizes up to 4mm²

• Rated for 400V and 10A

• Wide operating temperature range

• Beige and yellow housing for easy identification

• Complies with IEC 60947-7-1

• Suitable for industrial control and automation systems

Technical Specifications:

• Brand: Weidmüller

• Product: AKR Disconnect Terminal Block

• Series: SAKR

• Product Type: Test Disconnect Terminal Block

• Number of Levels: 1

• Colour: Beige / Yellow

• Rated Voltage: 400V

• Rated Current: 10A

• Maximum Cable Size: 4mm²

• Minimum Wire Size: 26AWG

• Maximum Wire Size: 12AWG

• Termination Type: Screw Clamp

• Operating Temperature: -50°C to +100°C

• Hazardous Area Certification: No

• Standard: IEC 60947-7-1

Applications:

• Industrial automation systems

• Electrical control panels

• Switchgear assemblies

• Test and disconnect circuits

• Telecommunications equipment

• Utility infrastructure

• PLC control systems

• Control and instrumentation wiring

• Maintenance and fault-finding

• Industrial electrical installations
