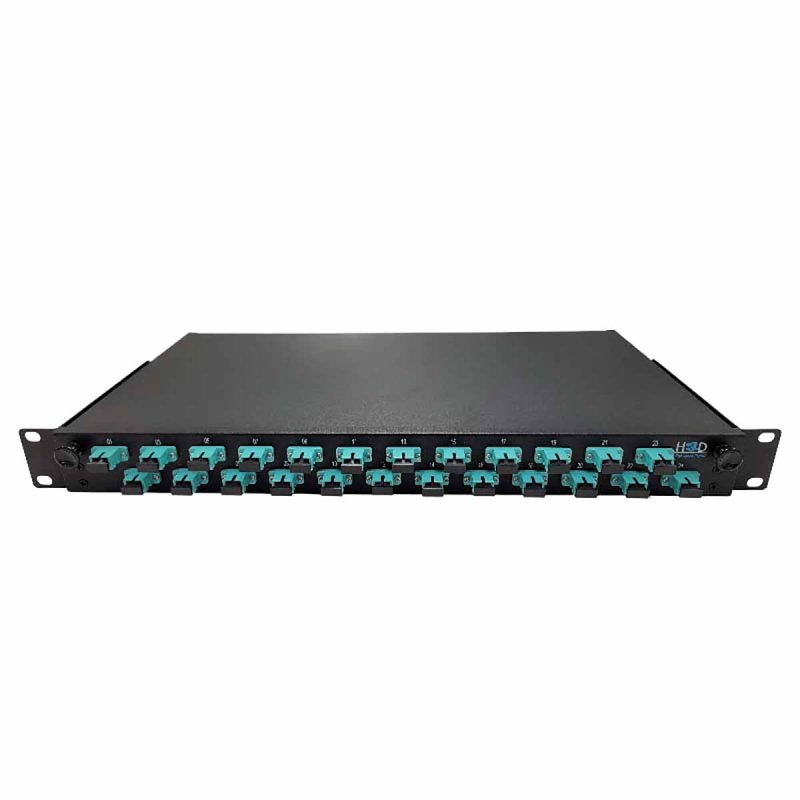

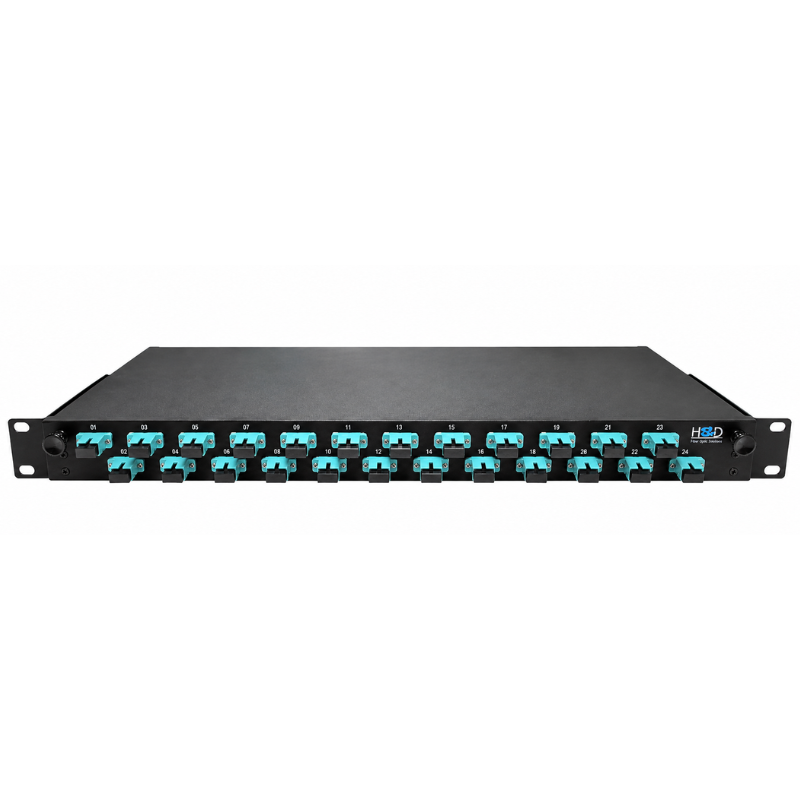

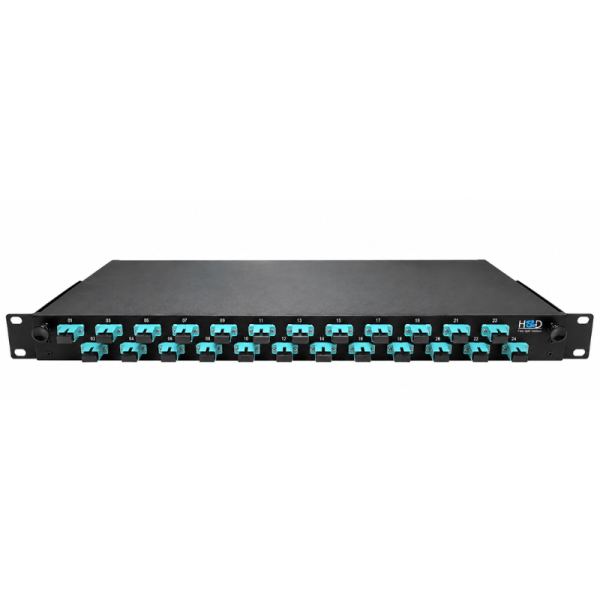

Sliding Patch Panel 19” 1U – 24 SC/UPC SX Single-mode | Equipped with 12 SC/APC SX Transits
This 1U Sliding 19” Patch Panel is a pre-configured fibre management solution designed for single-mode optical applications. It includes 24 SC/UPC simplex adapter ports and is pre-installed with 12 SC/APC simplex transit adapters for versatile connectivity. Ideal for telecom networks and FTTH installations, the sliding drawer allows easy front access for splicing, patching, and cable management. Built for 19” rack environments, this panel combines flexibility, precision, and efficient fibre organisation.
Key Features:
-
24 x SC/UPC SX (simplex) adapter positions
-
Pre-equipped with 12 x SC/APC SX transit adapters
-
Sliding tray design for easy installation and maintenance access
-
1U height suitable for all standard 19” rack systems
-
Single-mode fibre compatible for long-distance, high-performance applications
-
Supplied with splice tray, cable ties, fixing accessories, and transit grommets
-
Ideal for FTTH, telecom cabinets, data centres, and central office racks
Technical Specification:
-
Panel Type: Sliding 1U patch panel
-
Mounting: 19" rack-mountable
-
Adapter Type: SC/UPC SX (24 ports)
-
Transit Adapters: 12 x SC/APC SX
-
Fibre Compatibility: Single-mode (OS1/OS2)
-
Material: Powder-coated steel
-
Colour Coding: Blue (UPC), Green (APC)
-
Application: Telecom, FTTH, ODFs, WAN/LAN backbones
|
