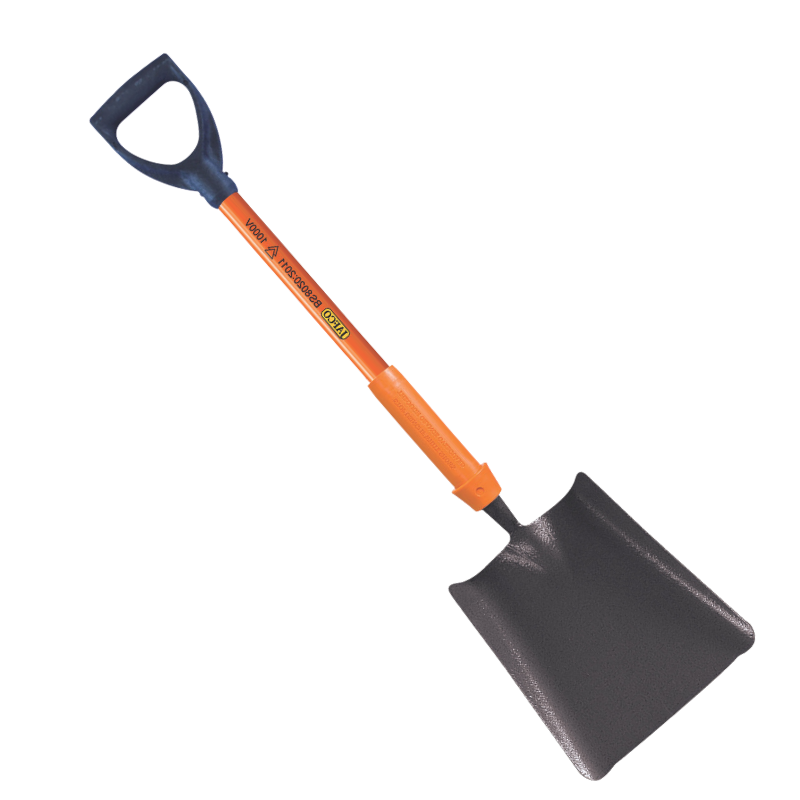

Insulated No. 2 Square Mouth Ballast Shovel – 12.5″ × 10″ (320 × 255mm)
The Insulated No. 2 Square Mouth Ballast Shovel is a heavy-duty, safety-critical tool designed for use in rail, utilities and infrastructure environments where protection against electrical hazards is essential. Featuring a robust square mouth blade measuring 320mm × 255mm (12.5″ × 10″), it is ideal for moving ballast, aggregates and bulk materials with precision and control.
This shovel is manufactured with a double-sleeved, double-insulated overguard system bonded over the metal socket to provide enhanced user safety. The system consists of a rigid, abrasion-resistant fibreglass-reinforced nylon outer overguard and a contrasting inner underguard, both epoxy bonded to the socket. This construction ensures the metal socket remains insulated from the user during operation.
The contrasting colour design also acts as a visual safety indicator, allowing users to easily identify wear and insulation integrity during inspections. Fully compliant with BS 8020:2011, this shovel is suitable for use in safety-critical environments when inspected and maintained correctly.
Key Features:
-
Insulated No. 2 square mouth ballast shovel
-
Blade size: 320mm × 255mm (12.5″ × 10″)
-
Double-sleeved, double-insulated overguard system
-
Abrasion-resistant fibreglass-reinforced nylon construction
-
Epoxy-bonded insulation over metal socket
-
High durability for demanding rail and civil engineering use
-
Visual safety warning system using contrasting colours
-
Fully compliant with BS 8020:2011
Technical Specifications:
-
Tool Type: Square Mouth Ballast Shovel
-
Blade Size: 320mm × 255mm
-
Blade Profile: No. 2 Square Mouth
-
Insulation System: Double overguard and underguard
-
Overguard Material: Fibreglass-reinforced nylon
-
Standard: BS 8020:2011
-
Application: Rail, utilities, civil engineering
Safety Information:
-
Tools must be inspected before and regularly during use
-
If the white inner underguard becomes visible, use must cease immediately and the tool must be replaced
-
Designed for safety-critical environments when used in accordance with inspection guidelines
Applications:
-
Rail and trackside maintenance
-
Ballast and aggregate handling
-
Utilities and infrastructure works
-
Electrified and non-electrified safety-controlled environments
