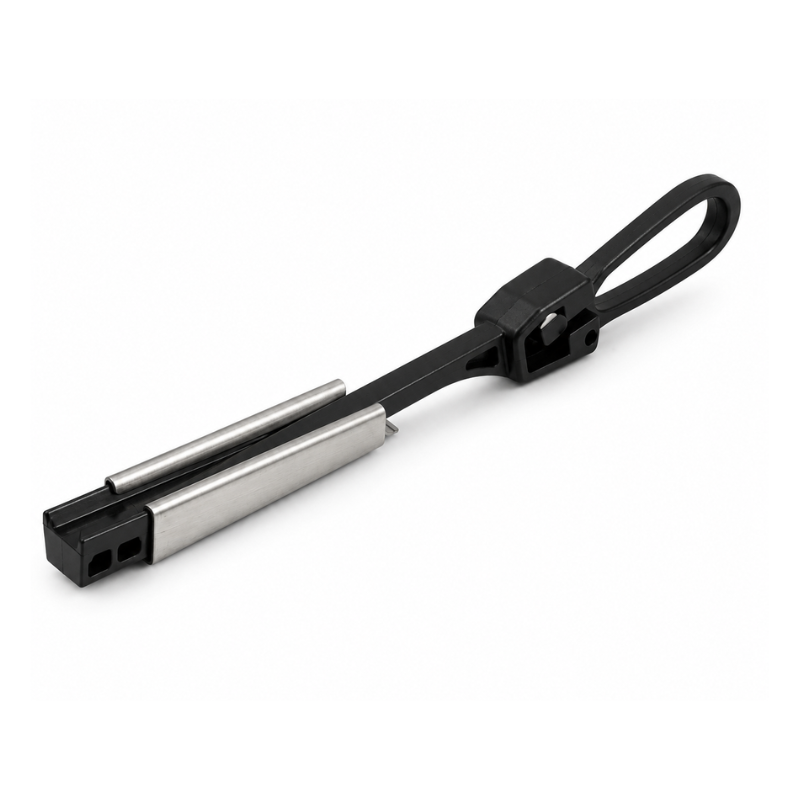

Telenco Aerial Drop Cable Clamp HYPOCLAMP F Flat SST COF250 Cable 4×8mm – Up To 70m Span
The Telenco HYPOCLAMP F Flat SST COF250 Aerial Drop Cable Clamp is a high-performance anchoring clamp designed for the termination and securing of flat fibre optic aerial drop cables on poles and wall-mounted hardware.
Engineered for spans of up to 70 metres, the HYPOCLAMP provides secure cable retention while protecting the integrity of the fibre cable during installation and long-term deployment. The clamp is suitable for flat drop cables up to 10mm × 4.5mm, making it ideal for FTTH and aerial fibre distribution networks.
The clamp assembly consists of a thermoplastic and stainless steel body, metallic shim and integrated wedge system with an opening bail for easy installation. Designed for rapid deployment without specialist tools, the clamp enables secure installation on poles, hooks, brackets and cross-arms while avoiding cable bending within the clamp body.
Fully tested to international standards for climatic ageing, corrosion, tensile and vibration resistance, the HYPOCLAMP delivers dependable performance for telecom and utility infrastructure applications.
Key Features:
-
Designed for flat fibre optic aerial drop cables
-
Suitable for spans up to 70m
-
Compatible with 4 × 8mm flat drop cables
-
Easy and quick installation – no tools required
-
Efficient cable gripping without damaging the cable
-
Installation without bending the fibre cable
-
Open bail design for installation onto hooks, brackets and cross-arms
-
Durable thermoplastic and stainless steel construction
-
Suitable for pole and façade installations
Technical Specifications:
-
Product Type: Aerial drop cable clamp
-
Model: HYPOCLAMP F Flat SST COF250
-
Cable Compatibility: Flat FO drop cables up to 10mm × 4.5mm
-
Maximum Span: 70m
-
Material: Thermoplastic and stainless steel
-
Weight: 0.04kg
-
Packaging Quantity: 30 units
Performance & Compliance:
-
Climatic ageing test – NF EN C-20-540
-
Corrosion test – NF EN 60068-2-52
-
Tensile testing – ORANGE CCF/BI/BUBL specification
-
Vibration testing – NF EN 50289-3-13 with insertion loss < 0.2dB
Applications:
-
FTTH aerial drop cable installations
-
Pole-mounted fibre networks
-
Wall-mounted aerial fibre deployments
-
Telecom and utility infrastructure projects
-
Outdoor fibre cable anchoring systems
