FIMO SAM 11 Hinged Single Saddle – Ø10–11mm

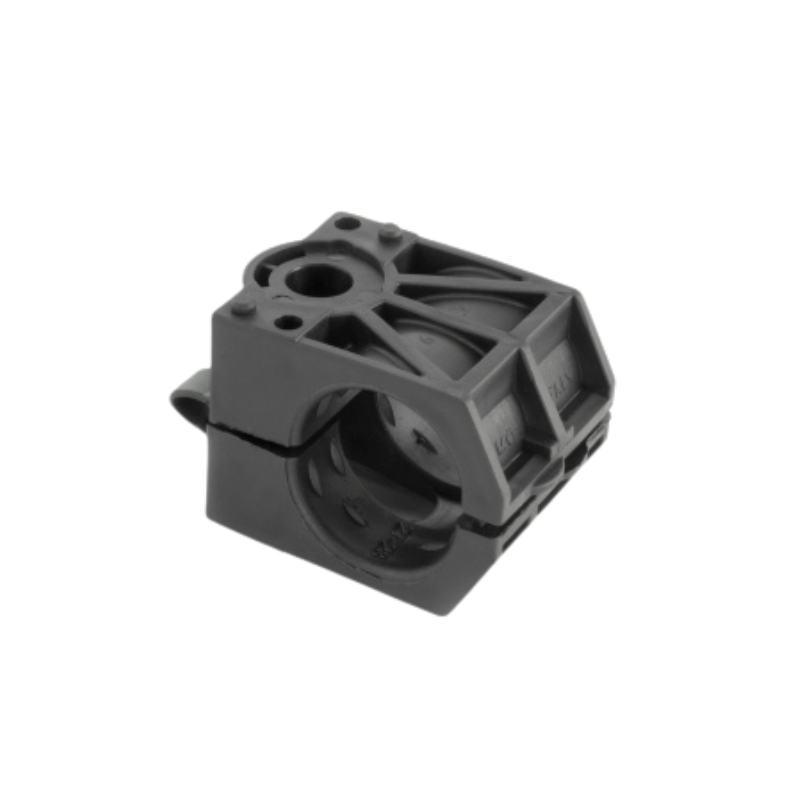

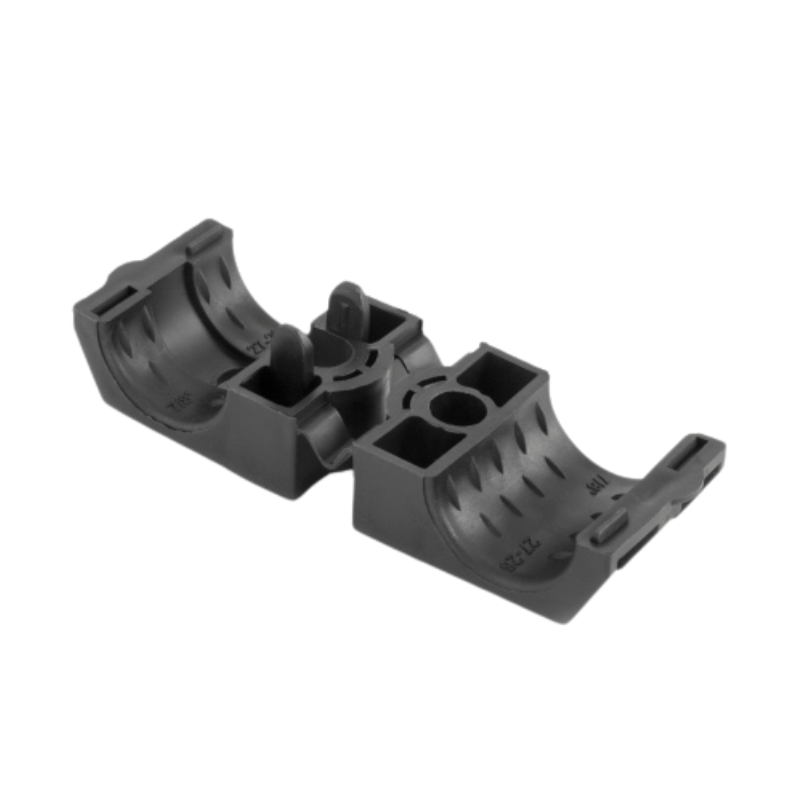

The FIMO SAM 11 is a hinged single saddle clamp designed for secure and non-deforming fixation of coaxial or fibre cables with diameters from 10 to 11mm. Featuring a patented flexible hinge, the two-shell structure ensures a controlled and precise grip without compressing or damaging the cable. Made from UV-resistant polypropylene, this clamp is ideal for both indoor and outdoor installations across telecom and utility infrastructures.
Key Features:
-
Hinged single saddle design with internal indentation for non-compressive grip
-
Designed for Ø10–11mm coaxial and fibre cables
-
UV-resistant polypropylene construction for outdoor durability
-
Lightweight and compact – just 16g per unit
-
Operating temperature: -30°C to +120°C
-
RoHS compliant
-
Supplied in boxed packaging with traceable product code, batch, and quantity
Technical Specification:
-
Model: SAM 11
-
Cable Diameter Range: Ø10–11mm
-
Length (L): 44mm
-
Height (H): 21mm
-
Height (h): 10.5mm
-
Material: UV-resistant polypropylene
-
Weight: 16g
-
Packaging: 500 units per box
-
Compliance: RoHS
