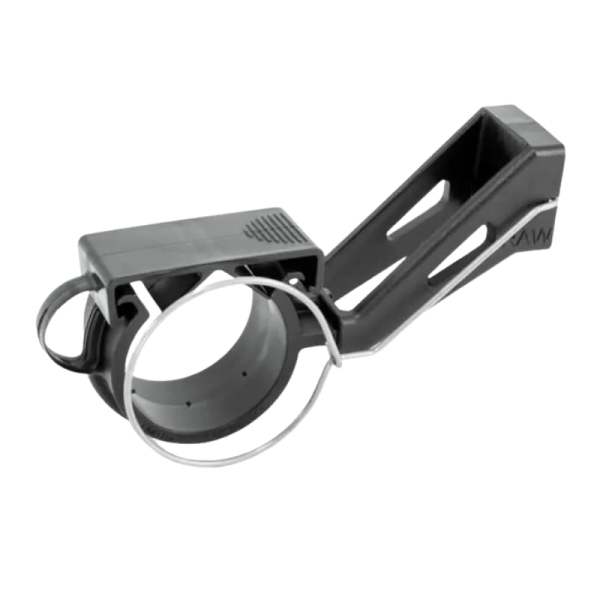

FIMO RAW 7/8"-80 + RSD Radiating Cable Clamp
The FIMO RAW 7/8"-80 + RSD clamp kit is designed for the secure installation of radiating cables in both horizontal and vertical orientations. Engineered specifically for demanding environments such as high-speed railway tunnels (up to 350 km/h), this clamp ensures reliable performance and long-term durability. The halogen-free PA6-V0 material and stainless-steel safety clamp provide fire resistance and mechanical strength, making it ideal for telecom and critical infrastructure installations.
Key Features:
-
For 7/8” radiating cables, compatible with high-performance telecom applications
-
Robust PA6-V0 clamp – self-extinguishing, halogen-free, and RoHS compliant
-
Stainless steel RSD safety clamp for added mechanical stability
-
Supports horizontal and vertical installation
-
Tested for high-speed rail environments (up to 350 km/h)
-
Temperature range: -40°C to +125°C (operation), -20°C to +60°C (installation)
-
Supplied with full traceability including product code, batch number, and packaging label
Technical Specification:
-
Clamp Type: RAW 7/8"-80 + RSD
-
Material: PA6-V0 (self-extinguishing, halogen-free), Stainless Steel
-
Installation Orientation: Horizontal or Vertical
-
Working Temp: -40°C to +125°C
-
Install Temp: -20°C to +60°C
-
Weight: 0.0614 kg
-
RoHS Compliant: Yes
|
