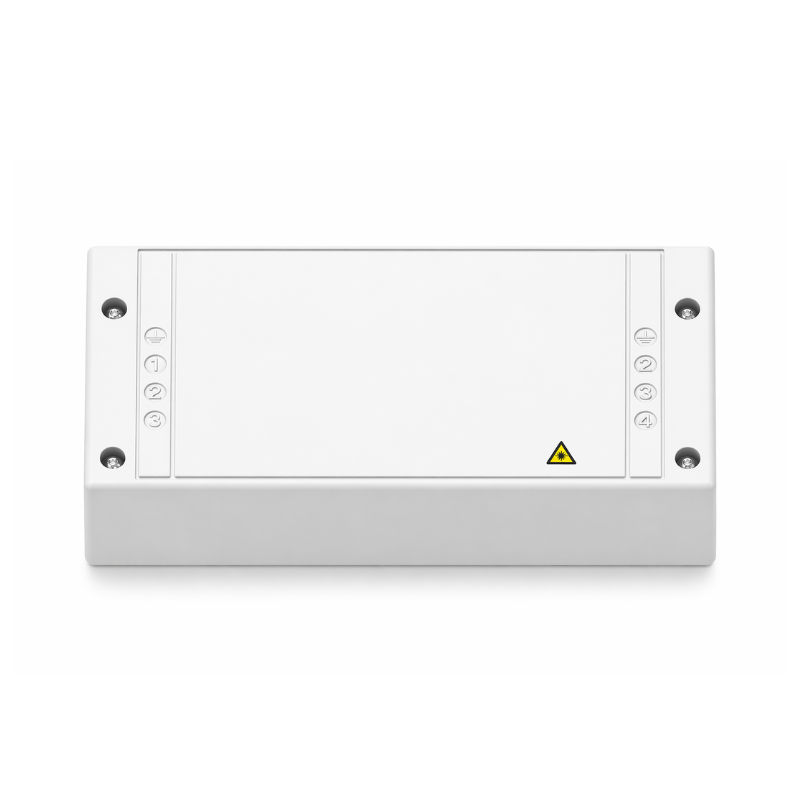

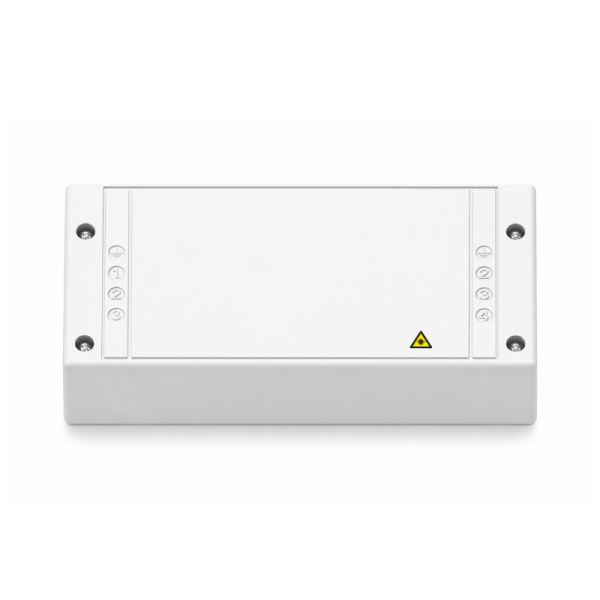

External Façade Breakout Box – 4F – SC/APC
The External Façade Breakout Box – 4F – SC/APC is a compact and robust solution designed to provide a reliable transition between external feeder cables and internal fibre connections at customer premises.
Installed externally at the building façade, this enclosure acts as a point of entry (POE), enabling seamless connection between the network and the customer’s ONT. Its design supports up to 4 SC/APC adaptors and 12 fusion splices, making it ideal for small-scale FTTH deployments and residential connections.

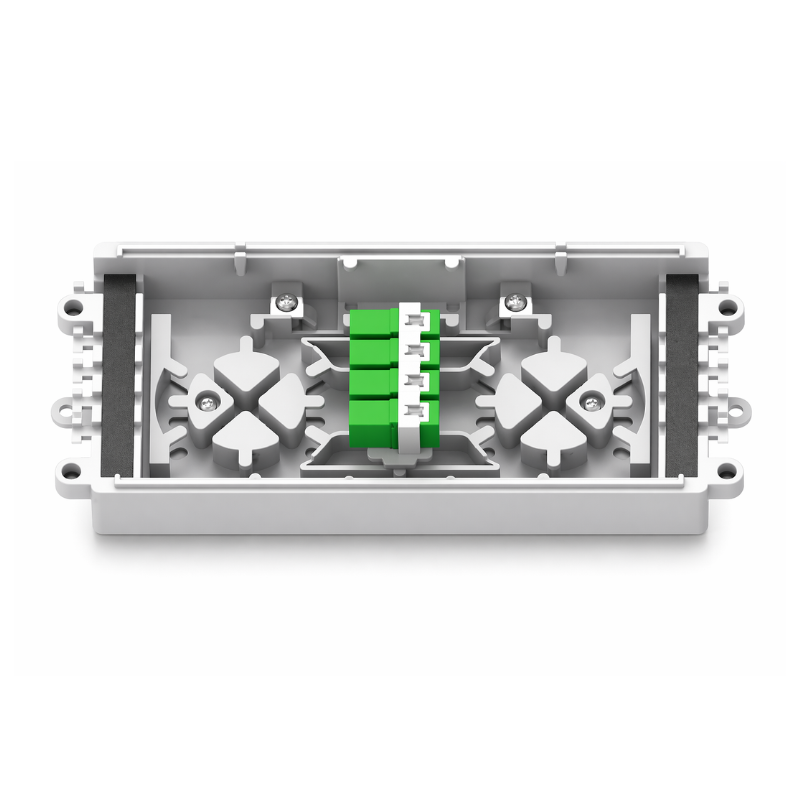

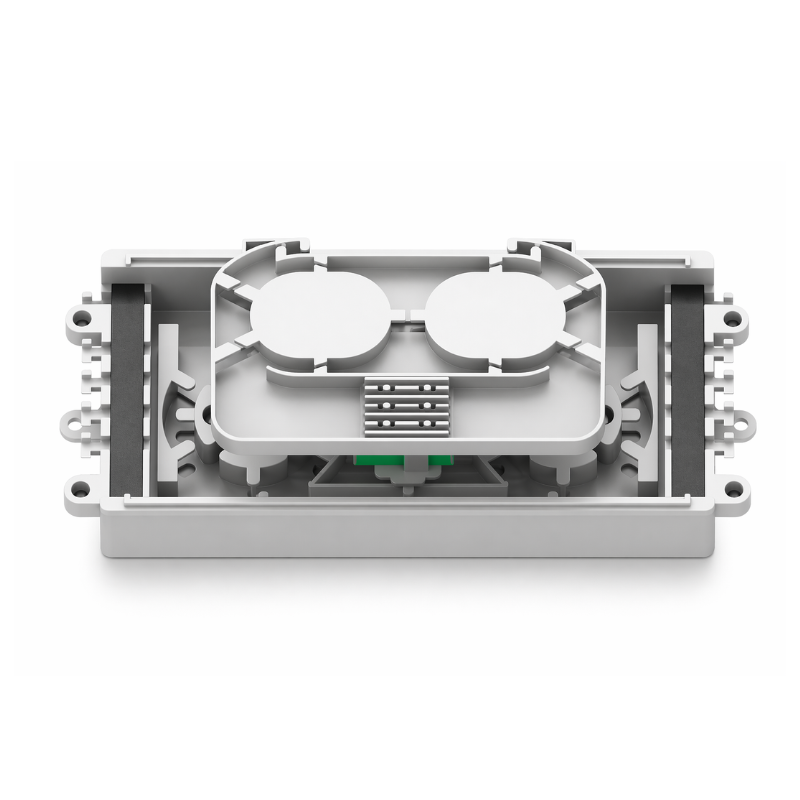

Engineered for outdoor environments, the box features an IP65-rated, weather-resistant housing that ensures long-term durability while maintaining a discreet, low-profile appearance. Its internal layout supports structured fibre routing, bend radius protection and cable storage, ensuring consistent performance and easy installation.
Key Features:
-
Supports up to 4 SC/APC adaptors
-
12F splice capacity for flexible fibre management
-
Designed for external façade installations (IP65 rated)
-
Provides secure transition from feeder to internal fibre
-
Cable entry and exit on both sides for flexible routing
-
Built-in 2m cable storage capacity
-
Maintains minimum bend radius for fibre protection
-
Tool-free access for quick installation and maintenance
-
Compact, low-profile design for discreet installations
Technical Specifications:
-
Product Type: External fibre breakout / POE box
-
Fibre Capacity: 4F (SC/APC)
-
Splice Capacity: Up to 12 fibres
-
Connector Type: SC/APC (up to 4 adaptors)
-
IP Rating: IP65
-
Material: ABS / PC
-
Colour: Grey
Cable Management:
-
Cable Storage: Up to 2m of Ø3.0mm cable
-
Input Ports: 3–8 mm (both sides)
-
Output Ports: 3–5 mm (both sides)
Dimensions:
Applications:
-
External fibre entry points at building façades
-
FTTH and FTTx deployments
-
Residential fibre connections
-
Feeder-to-drop cable transitions
-
Outdoor point-of-entry (POE) installations
