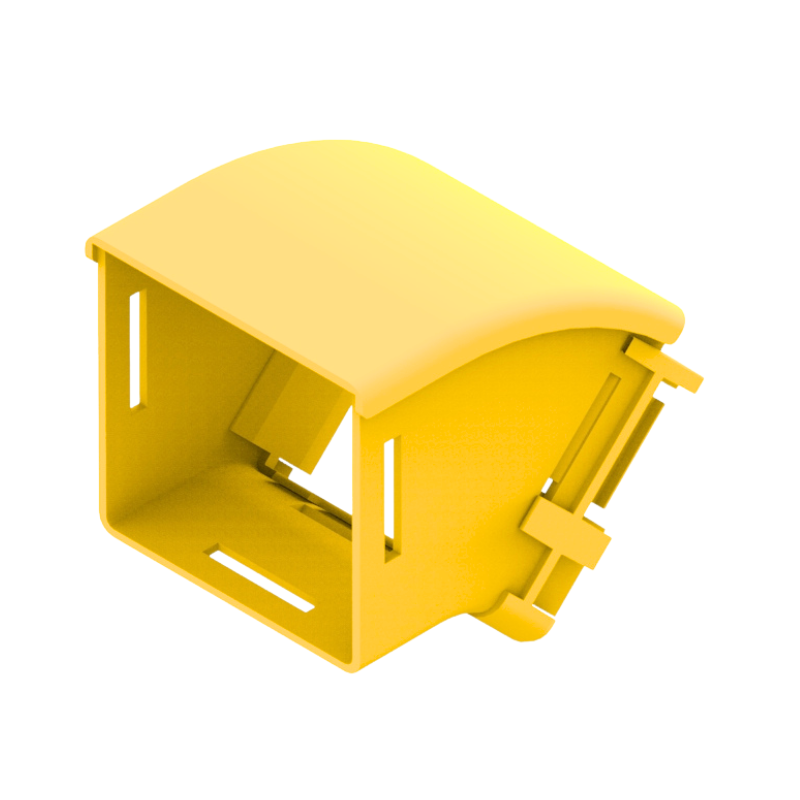

Fibre Duct 45° Down Elbow Body – 160 x 100mm – Yellow

Product code: TFD-16IA45
Request for quote

Description:

A 45° down elbow for our 160 × 100 mm yellow fibre optic ducting (fibre raceway) system. It makes a gradual 45° downward change, useful for stepping between levels without a sharp transition, with a smooth internal curve that helps keep patch cords within their minimum bend radius.

Features

  • 160 × 100 mm section that matches the main duct and every fitting in the range
  • Smooth curved profile helps protect the fibre bend radius
  • High-visibility yellow identifies the pathway as fibre-only
  • Durable PVC construction
  • Supplied without cover: order the matching cover separately

Specification

Size 160 × 100 mm
Colour Yellow
Type 45° downward (vertical)
Material PVC
Supplied as Fitting body only (no cover)
Connection 2 × TFD-16JO duct joiners (not included)
Product code TFD-16IA45

Typical applications

Overhead fibre pathways in data centres and colocation halls, meet-me rooms, telecoms exchanges, comms rooms and enterprise networks. It routes fibre patch cords between ODFs, patch panels and racks.

Complete the route

Pair with the matching cover, add 2 m main duct lengths and choose further fittings from our fibre optic ducting & raceway range. For sizing, fill rates and layout advice, read our fibre raceway design guide.
