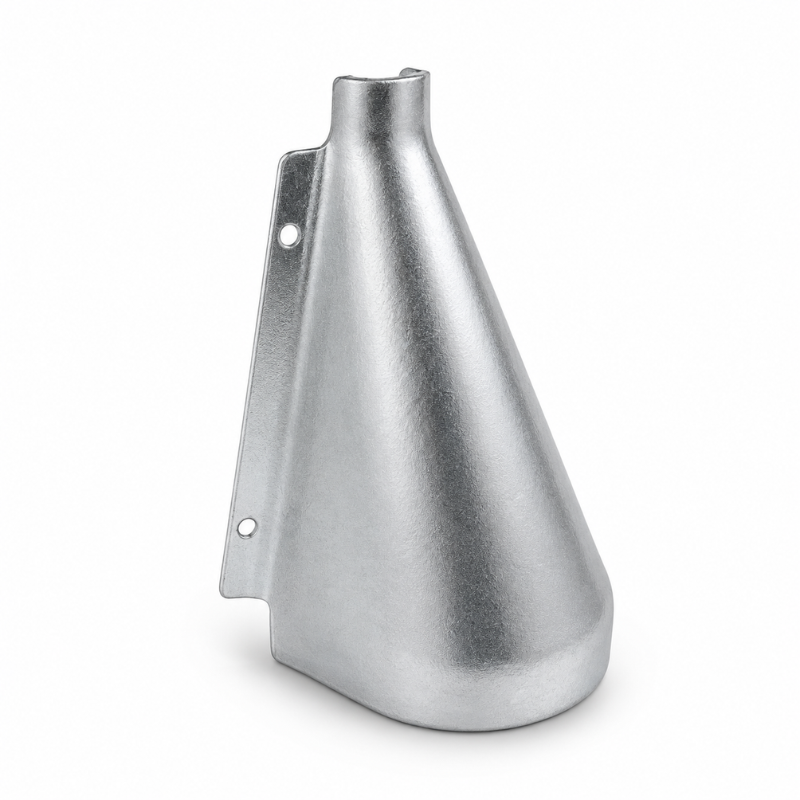

Connector Bend No.1 - Elephant Foot

Connector Bend No.1 – Elephant Foot – 90mm to 19mm

The Connector Bend No.1 – Elephant Foot is designed to provide a reliable transition between underground ducting and Capping Steel at distribution points. It provides a practical connection solution where a 90mm duct needs to transition to a 19mm connection, supporting organised cable routing within telecommunications and utility infrastructure.

Commonly referred to as an Elephant Foot, the connector bend helps guide cables through the transition between the larger duct and the smaller capping connection. Its formed design supports changes in the cable route while providing a defined pathway into the associated distribution infrastructure.

The 90mm to 19mm configuration makes the Connector Bend No.1 suitable for compatible duct and capping installations, helping installers create an effective transition at network distribution points.

Designed for professional infrastructure installation, the Elephant Foot connector bend is suitable for telecommunications, cable distribution and underground ducting projects where cables need to transition safely and efficiently from duct to capping.

Key Features:

• Connector Bend No.1

• Commonly known as an Elephant Foot

• Designed to connect ducting to Capping Steel

• Suitable for 90mm duct connections

• 19mm capping connection

• Provides a defined transition between duct and capping

• Supports organised cable routing

• Designed for use at distribution points

• Suitable for telecommunications infrastructure

• Designed for professional installation applications

Technical Specifications:

• Product Type: Connector Bend

• Type: No.1

• Alternative Name: Elephant Foot

• Duct Size: 90mm

• Connection Size: 19mm

• Connection Type: Duct to Capping Steel

• Application: Cable Distribution and Ducting

Applications:

• Telecommunications infrastructure

• Underground cable networks

• Duct installations

• Capping Steel installations

• Cable distribution points

• Cable routing

• Network infrastructure

• Utility installations

• External cable installations

• Professional infrastructure projects
