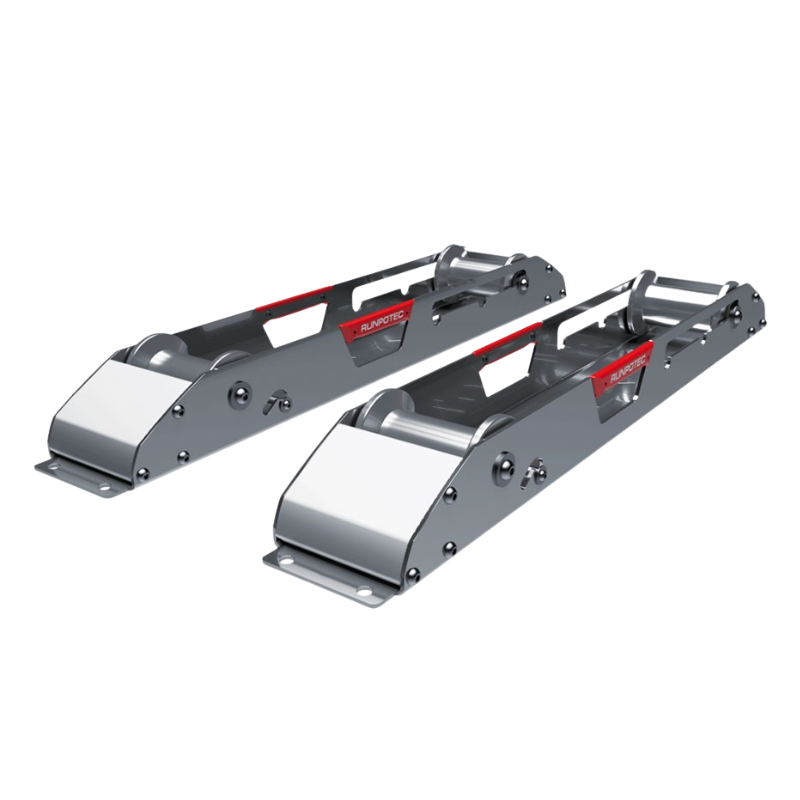

The AS 900 unwinding rails are designed for safe unwinding of heavy cable material and cable drums from 450 mm to 2000 mm diameter. One of the two heavy duty rollers can be positioned in 3 different settings.
The stable stainless steel-aluminium construction with high-quality, maintenance-free, ball bearing heavy-duty support rollers ensure a long service life.
Easy and quick change of drums due to the unwinding brake.
Due to their two-part narrow design they are easy to use in cramped spaces. Especially recommended where different cable types are to be processed side by side within a short time.
Since some of the drums are in very poor condition, the recommended working load bearing capacity of 800 kg should not be exceeded.
Specification
| Cable drum Diameter |
450 mm ( 17.7 inch) to 2000 mm (78.75 imch) |
| Dimensions |
900 x 152 x 100 mm |
| Weight |
22 kg (Set of 2) |
| Max Load Capacity |
1700 kg |
| Recommended Load Capacity |
800 kg (wooden drum) |
| |
|
